Air Cooled Glycol Ice Water Chiller for Beer Fermentation Tank

Air Cooled Ice Water Chiller for Beer Fermentation Tank

Mgreenbelt Chillers has an outstanding history for providing cooling solutions to the Machinery, Food and Pharmaceutical Industry. From 2.8 to 2015kw cooling capacity, we provide specific solution to satisfy variety of requirements. When your system requires cooling, we have the solution.

* Cooling capacity: 36520BTU/Hr---3 Ton ----9185kcal/hr
* 14 months quality warranty
* CE certificate
* Refrigerant: R407c
* Voltage: 220V/60HZ/3PHASE
* Chilled outlet water temperature : -5C to +35 C degree

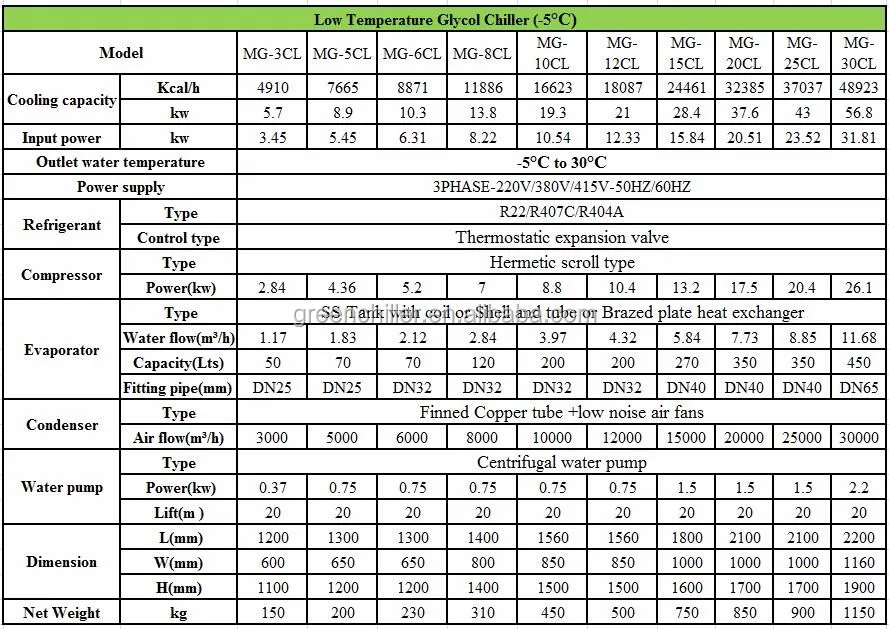

If the model above is not workable for your cooling requriement, please check below specification of models.

1)Evaporator type :Stainless steel tank with coil /Tube-in -shell type or Brazed plaitng heat exchanger to meet different type circuit. 1.0mm thick copper tube to ensure the longer working life of the chiller.

Closed circuit: Tube-in- shell type or brazed plating heat exchanger, this type usually suggested to connect with a water tank outside.
Open circuit: Tank with coil type, suggested to connect with jacket fermenting tanks or machines directly.

2)Compressor:adopt famous scroll brand Copeland,Sanyo,Danfoss compressors,which was produced from original authorized factory, high efficiency and durable.

3)Condenser: Normally the air cooled type adopt finned copper tube with low noise outer fan,which take away the heat to air. Air cooled type is suitable the ambient temperature no higher than 45 degree.

4)Schneider electric componets and microcomputer control also applied,Stainless steel water pump ensure the stable and duarable working.

5) Emerson expansion valve to control the refrierant prefectly.

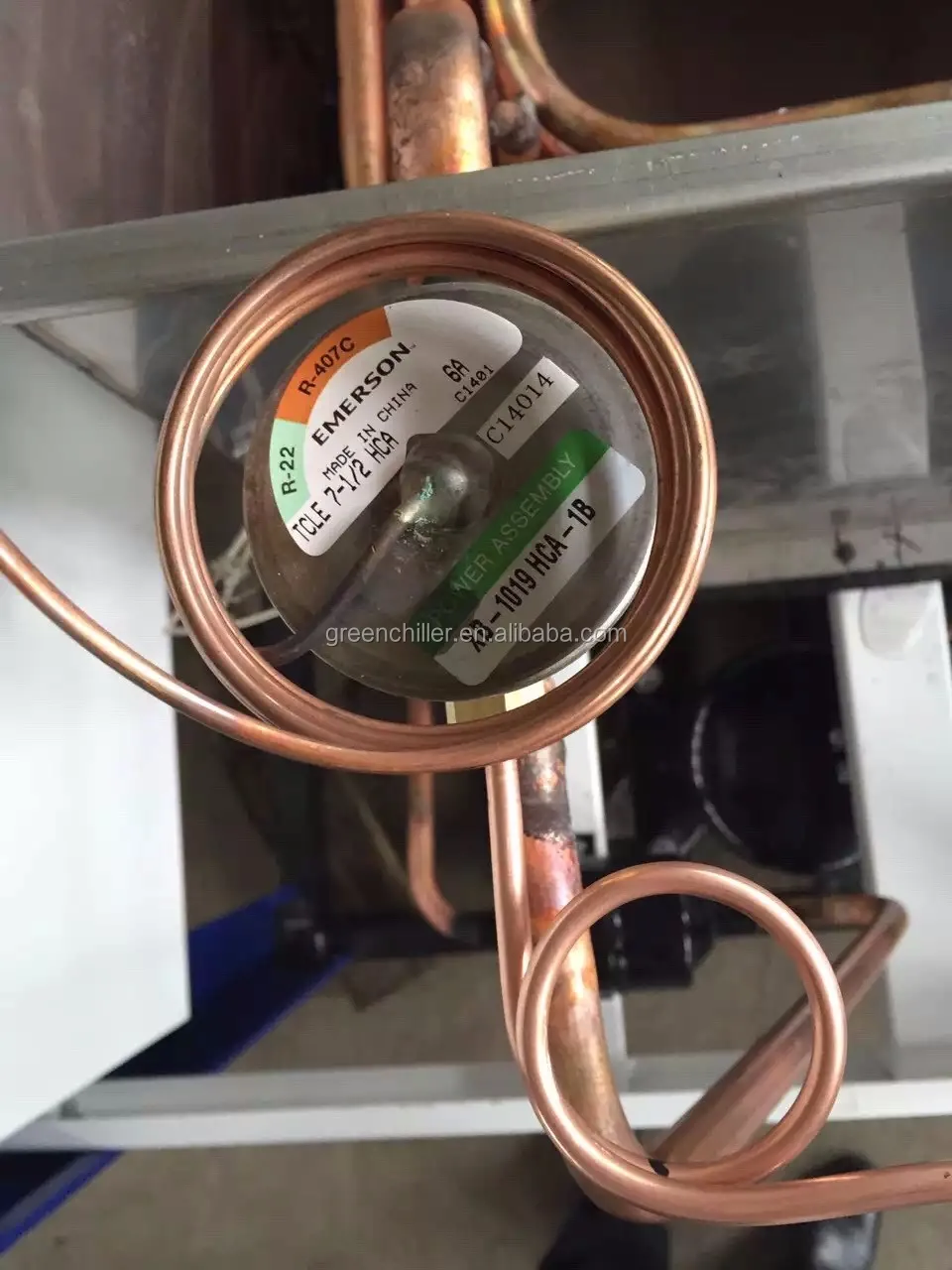

Emerson thermostatic expansion valve to control refrgerant flow for ice water chiller

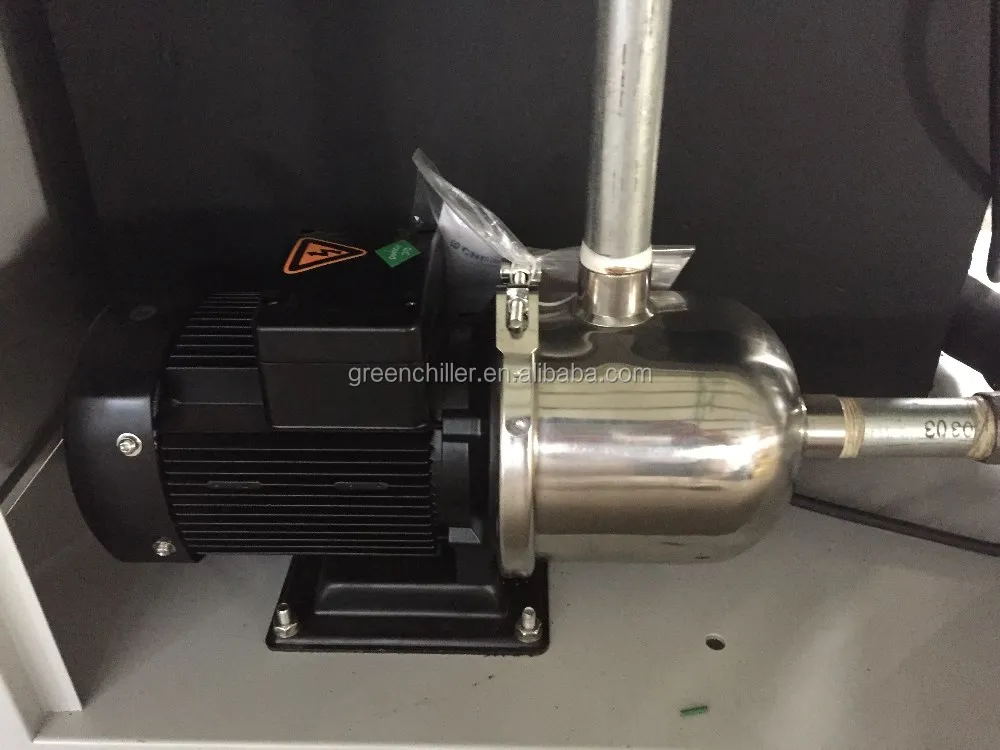

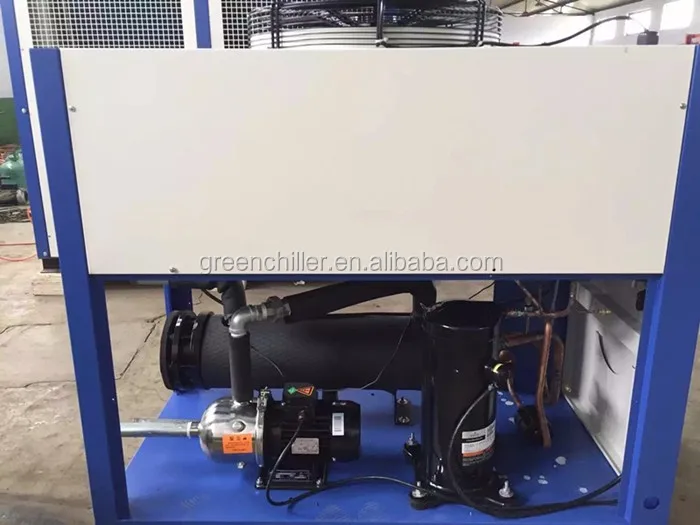

Copeland compressor, closed shell and tube evaproator, stainless steel water pump

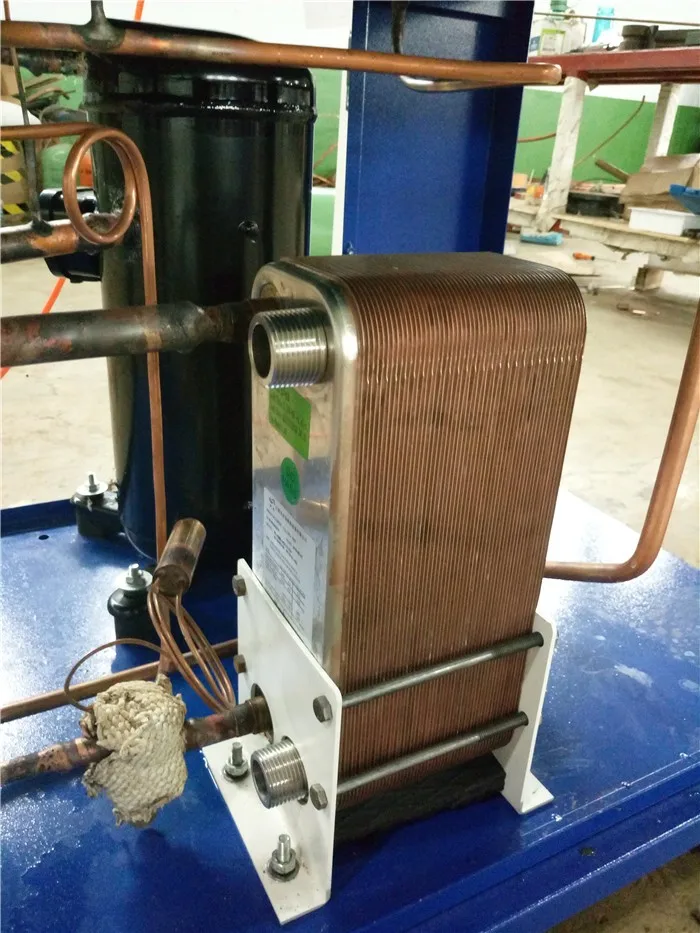

Plate heat exchanger

•  Wine & beer fermenting cooling
• Chemical cooling and pharmaceutical
• Food processing cooling
• Beverage cooling before bottling

 A.14 Months warranty and life time technical maintenance offered.

B.All extra parts for the machine can be purchased with agent price from MGreenbelt.

C.24 hours working phone call: +86 18769762328 Email/ Skype/ MSN/ Trade manager online to support.

D.Professional technical team and sales person give you regarding troubleshooting procedures via Internet and Phone any time when needed.

E. Free and Professional Training at our Factory under the relaxed condition.

The machines uses brand compressor imported from Europe, American and Japan; can guarantee reliable running, high efficiency, low noise, power saving and long using life;

1.Power supply:Single or three phase ,220V,380-415V,440V-460V, 50Hz or 60Hz;
2.Refrigerant  R-22 or Eco friendly R-407C,R-410A,R-134A
3.Outlet temperature range: From -35 °C to +35°C
4.Cooling capacity: 1HP-671HP (0.8tons-573tons)
5.Cooling way: air or water

6.Compressor type:Screw type,Scroll type
7.Scroll Compressor brand: SANYO, COPELAND, DANFOSS,HANBELL,BITZER
