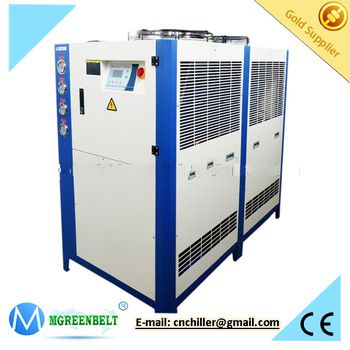

Air Cooled Type Water Chiller Chilled Cooling System For Making Carbonated Water Beverage

FOB Price:

Get Latest Price

Min.Order Quantity:

1 Unit/Units

Supply Ability:

200 Unit/Units per Quarter

Port:

Qingdao, China

Place of Origin:

Shandong, China (Mainland)

Payment Terms:

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Brand:

Mgreenbelt

Products Model:

MG-10CL(D)

Products Details
Company Profile

Quick Details

Brand Name: Mgreenbelt

Model Number: MG-10CL(D)

Place of Origin: Shandong, China (Mainland)

Packaging & Delivery

Packaging Details: Air Cooling Type Water Chiller in Plywood Case Package.
Delivery Detail: 20 days

Specifications

Air Cooled Type Water Chiller Chilled Cooling System For Making Carbonated Water Beverage

Product Information
1. Outlet Water Temperature: -5 degrees
2. Running Voltage: 220V,380V,415V,440V,460V,480V
3. Chiller Refrigerant: R407c,R404a,R22
4. Glycol Chiller Cooling Capacity: 19.3kW/5.5Tons
5. Chiler Compressor Type: Hermetic Scroll

Product Information

1. Outlet Water Temperature: -5 degrees

2. Running Voltage: 220V,380V,415V,440V,460V,480V

3. Chiller Refrigerant: R407c,R404a,R22

4. Glycol Chiller Cooling Capacity: 19.3kW/5.5Tons

5. Chiler Compressor Type: Hermetic Scroll

Specification of 10HP Low Temperature Air Cooled Type Water Chiller
Chiller Model Number	MG-10CL(D)
Cooling Water Temperature	-5 degrees
Cooling Efficiency	19.3kW
Refrigerant Gas	R407c,R22,R404a
Voltage of Glycol Chiller	220v, 380v, 415v, 440v, 460v, 480v
Hermetic Scroll Compressor Power	8.8kW
Compressor Numbers	2
Cooling Beverage Jacket Chiller Evaporator	Water Tank with Copper Coils
Water Tank Volume	200L
Cooled Water Flow	4.0m3/h
Chiller Condenser Type	Air Cooled
Chiller Inside Water Pump Power	0.75kW
Sizing	15608501500mm

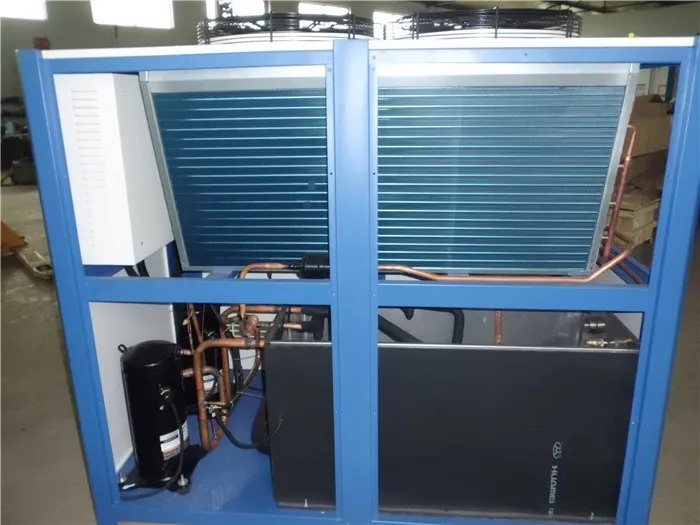

Components of Industrial Air Cool Chiller Unit

Features

1. Adopt branded compressor, reliable performance

2. Anti-dirty air cooled condenser

3. Stainless steel water tank inside chillers, not need to make a tank outside

4. High efficiency cooling fan on top of chillers, discharging heat of chiller units

5. Microprocessor control system, with safety protection.

6. 12-month warranty, providing technical support.

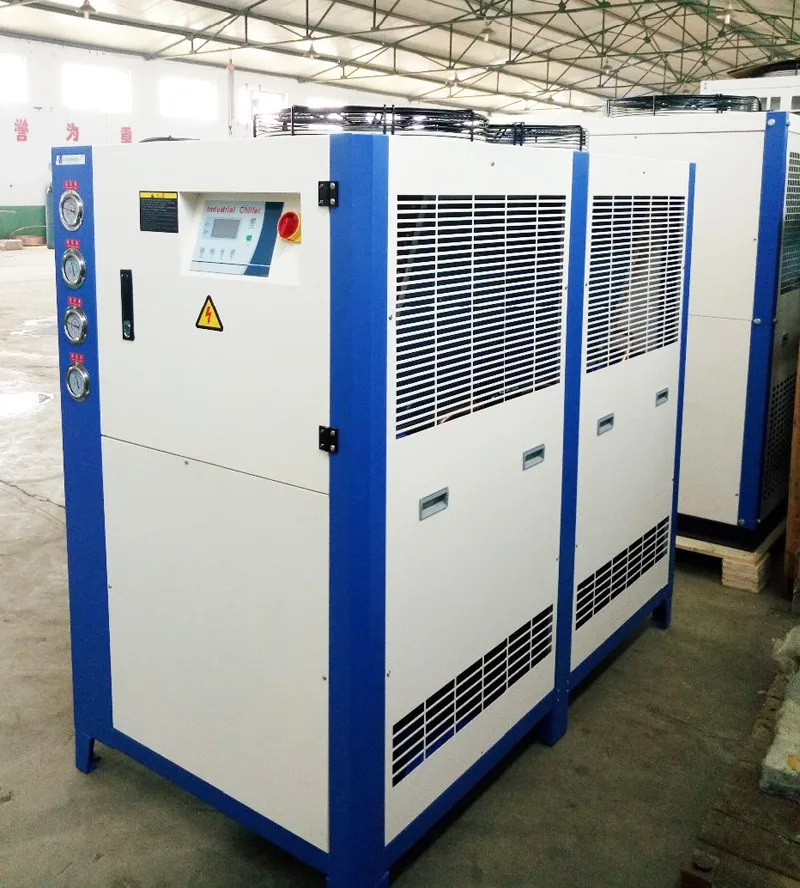

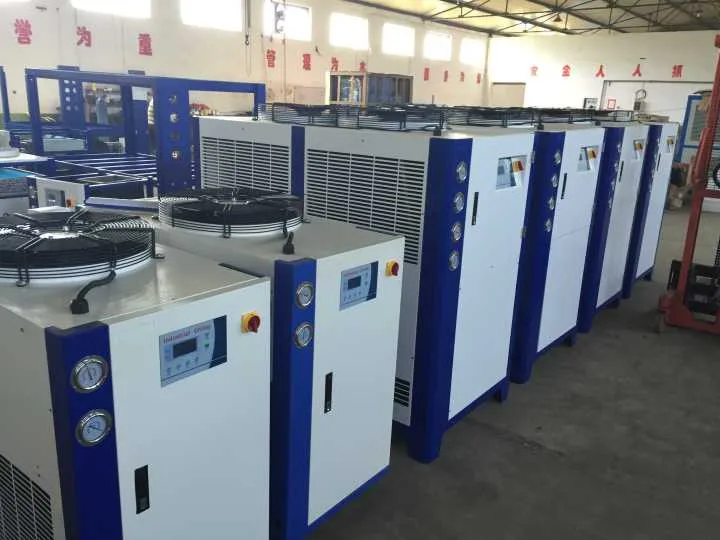

Chiller Pictures

Cooling System Water Chiller Manufacturers

Contact me freely and welcome to factory!

Established in the year 2003, we, " Mgreenbelt Machinery Co., Ltd," are engaged in manufacturing, exporting and supplying Chillers, Cooling Towers, Heat Exchangers and Components. Our range is appreciated by the clients based in various parts of China and world for its characteristics, such as robust structure, longer service life and high performance. The durable products are manufactured by experienced workers, using graded alloys and qualified electronic components. Further, for clients' covenience, we undertake the designing and turnkey projects for the devices.

At the sound manufacturing facility, we undertake the production of high performance machines. The quality controllers test the range, to ensure that it is in compliance with the degree of prevailing quality standards. Moreover, we also offer after sales services to ensure all the queries to be handled within the shortest time. We would like to grow and improve by anticipating consumers' needs, offering a better solution than competitiors and supporting customers to be confident of getting fast answers of requirement.

We have been successfully in offering machines to projects of Packaged Equipment and System, Automobile Components Producing System, Food Making, Bakery, etc. to clients from domestic, USA, Canada, Australia, Ecuador, Sudan, Russia, South Africa, Dubai, Israel, India, Philippine, Singapore, Vietnam, Thailand and Korea, etc.

Basic Information

Business Type: Manufacturer
Main Products: Industrial water chillers, air-cooled chillers, water-cooled water chillers, screw air/water cooling chillers, glycol water chiller, refrigeration compressor,axial fan,air cooling condenser, evaporator,water pump,cooling tower,etc.
Location: Shandong, China (Mainland) Asia
Year Established:

Trade Capacity

Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDU,Express Delivery
Accepted Payment Currency: USD,RMB
Accepted Payment Type: L/C,T/T,Western Union
Nearest Port: Qingdao,Shanghai,Shenzhen,Guangzhou

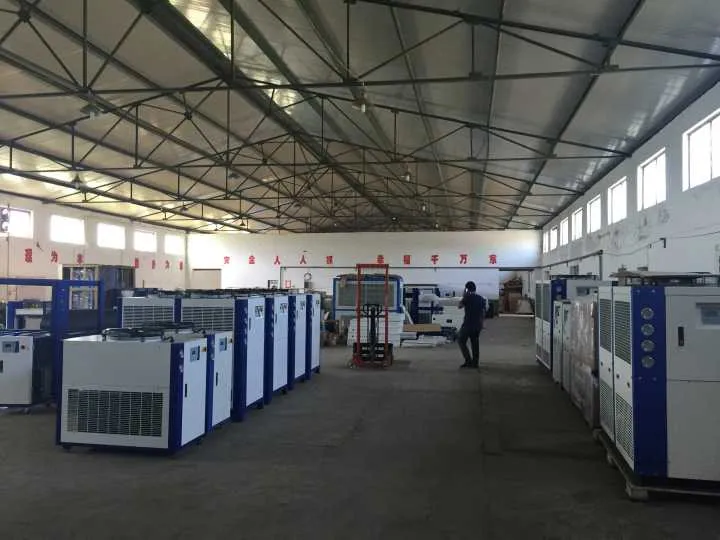

Company Photos
