Food and Beverage Scroll-Type Glycol Chiller for Low Temperature Cooling

FOB Price:

Get Latest Price

Min.Order Quantity:

1 Unit/Units

Supply Ability:

200 Unit/Units per Quarter

Port:

Qingdao, China

Place of Origin:

Shandong, China (Mainland)

Payment Terms:

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Brand:

Mgreenbelt

Products Model:

MG-20CL(D)

Products Details
Company Profile

Quick Details

Brand Name: Mgreenbelt

Model Number: MG-20CL(D)

Place of Origin: Shandong, China (Mainland)

Packaging & Delivery

Packaging Details: Scroll-Type Glycol Chiller Unit in Plywood Case.
Delivery Detail: 20 Working Days

Specifications

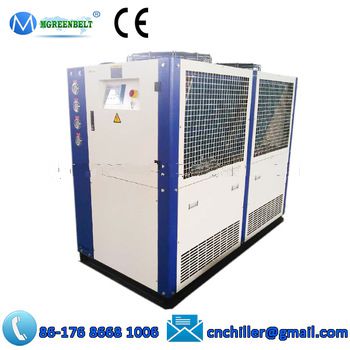

Food and Beverage Scroll-Type Glycol Chiller for Low Temperature Cooling

Chiller Specification

Chiller Model		MG-20CL(D)
Outlet Cooling Temperature		0degree C
Voltage		220v/380v/415v/440v/460v
Refrigerant		R407c, R22, R404a
Cooling Capacity	kW	44.2
Refrigerant Control	Type	Expansion Valve
Glycol Chiller Evaporator	Type	Shell and Tube/Tank with Coils
0degree Water Flow	m3/h	8.4
Tank Volume	Liters	350
Pipe Diameter		DN40
Glycol Chiller Pump Power	kW	1.5
Chiller Head	m	20
Chiller Sizing	mm	210010001700

Scroll-Type Air Cooled Chiller Advantages

Adopt reliable well-known refrigeration compressors.
Electric and refrigeration components are branded.
According to different industry requests, optional stainless steel and high head water pump available.
Provide wide range changeable temperature, meet 12-month cooling demands.
Independent design, one compressor to one circuit, no interaction.
Eco friendly refrigerant R407c, R410a, etc.

0degree Low Temperature Chiller Parts Industrial Glycol Chiller Unit Components

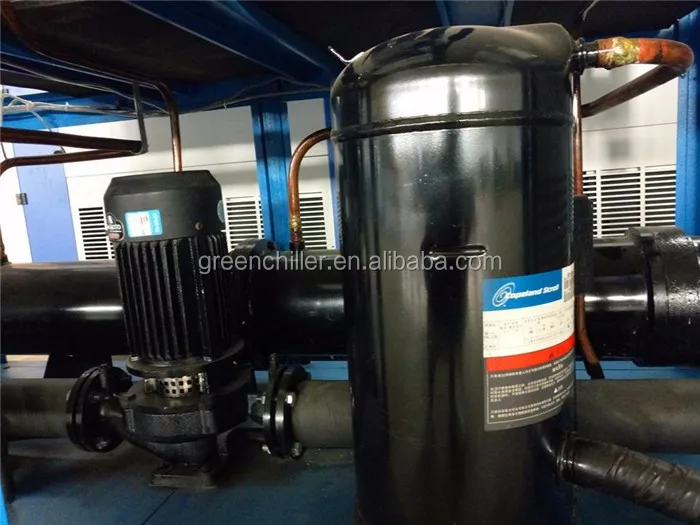

	Scroll Compressor Automatic high pressure alarm, protecting compressors from damaged. Greater reliability and energy efficiency.
Air Cooled Condenser High efficiency, 30% higher than normal condenser Integral design Anti-dirty Able to working in humid conditions
	Solid Stainless Steel Water Tank Evaporator. User not need to make tank outside, save space and cost.
Water Pump is mounted in controller and wired to motors.
	Schneider Electrical Parts Provide diagnostic and precise temperature control. All water sensing devices terminate in an easily accessible sensor block.
Top-discharge Cooling Fans Quietly discharges air through the top of the unit Adopt anti-rust strong fan blades

Packing of Air Glycol Chiller

	Plywood Case Package Sizing: 215010501750mm Weight: 850kg

Plywood Case Package

Sizing: 2150*1050*1750mm

Weight: 850kg

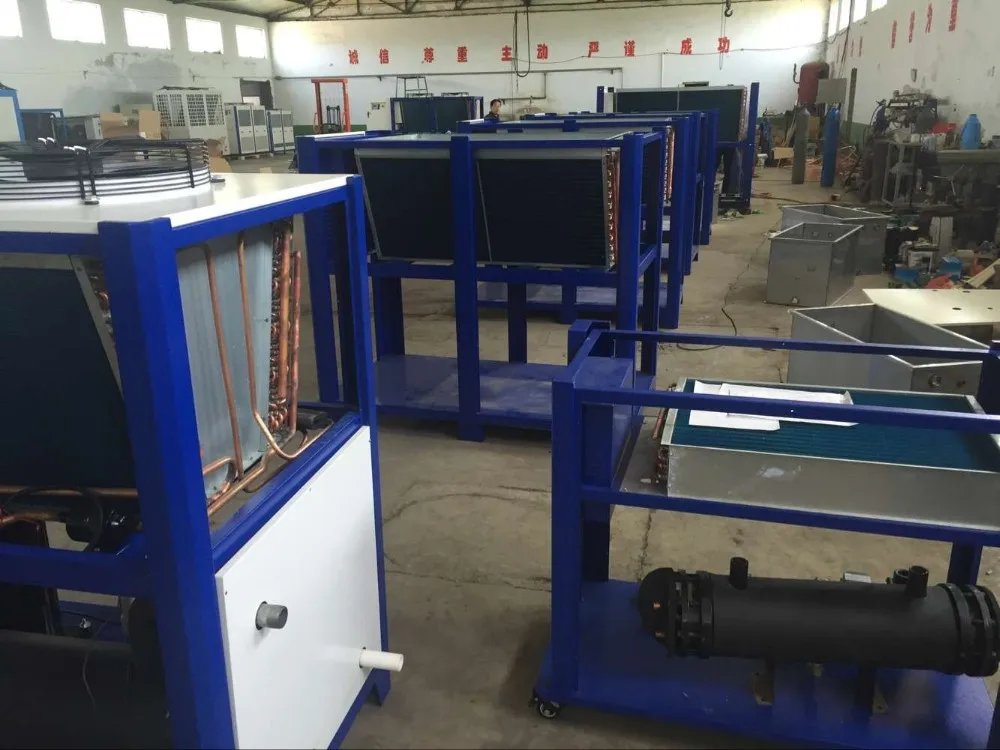

Industrial Cooling Water Chiller Factory

Exhibition

Contact me freely for request of industrial glycol chillers!

Established in the year 2003, we, " Mgreenbelt Machinery Co., Ltd," are engaged in manufacturing, exporting and supplying Chillers, Cooling Towers, Heat Exchangers and Components. Our range is appreciated by the clients based in various parts of China and world for its characteristics, such as robust structure, longer service life and high performance. The durable products are manufactured by experienced workers, using graded alloys and qualified electronic components. Further, for clients' covenience, we undertake the designing and turnkey projects for the devices.

At the sound manufacturing facility, we undertake the production of high performance machines. The quality controllers test the range, to ensure that it is in compliance with the degree of prevailing quality standards. Moreover, we also offer after sales services to ensure all the queries to be handled within the shortest time. We would like to grow and improve by anticipating consumers' needs, offering a better solution than competitiors and supporting customers to be confident of getting fast answers of requirement.

We have been successfully in offering machines to projects of Packaged Equipment and System, Automobile Components Producing System, Food Making, Bakery, etc. to clients from domestic, USA, Canada, Australia, Ecuador, Sudan, Russia, South Africa, Dubai, Israel, India, Philippine, Singapore, Vietnam, Thailand and Korea, etc.
