Home > Products > Refrigeration Equipment > Water Chiller

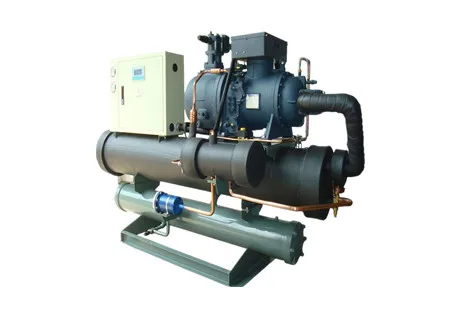

70kW Water Cooled Chiller System Manufacturer Used For Pharmaceutical Industry

FOB Price:

Get Latest Price

Min.Order Quantity:

1 Set/Sets

Supply Ability:

200 Set/Sets per Quarter

Port:

Qingdao, China

Place of Origin:

Shandong, China (Mainland)

Payment Terms:

L/C,D/A,D/P,T/T,Western Union

Brand:

MGREENBELT

Products Model:

MG-60WSL

Products Details
Company Profile

Quick Details

Brand Name: MGREENBELT

Model Number: MG-60WSL

Place of Origin: Shandong, China (Mainland)

Packaging & Delivery

Packaging Details: Chiller water cooled system in a plywood case.
Delivery Detail: 20 days

Specifications

70kW Water Cooled Chiller System Manufacturer Used For Pharmaceutical Industry

Description of Goods

Compressor high and low voltage protection, internal overheating protection.
Low water flow alarm devices: Low water temperature anti-icing alarm.
Oxygen-free welding from refrigeration system, reduce the oxides and smooth the surface.
Denmark Danfoss solenoid valve filter.
RS485 communication function for automated management(optional).
Control mode: imported microcomputer or PLC(optional).

Safety Protection

1. Lack of phase, reverse phase protection.

2. Motor overload protection.

3. High/low pressure protection.

4. Automatic alarm device for lacking of water.

5. Anti-freezing protection.

6. Coil overheated protection.

7. Water shortage protection.

8. Full-automatic temperature control system.

Parameter of 70kw Water Cooled Glycol Chiller
Model	MG-60WSL
Ultra low temperature chiller outlet water temperature	-25°C
Cooling capacity	69.4kw
Screw chiller voltage	220v/380v/415v/440v/460v/480v
Refrigerant gas	R404a,R22
Water cooled condenser	Shell and tube
Cooling water	23.3m3/h
Chiller evaporator	Shell and tube
Chilled water	11.9m3/h
Open chiller sizing	2500x750x1500mm

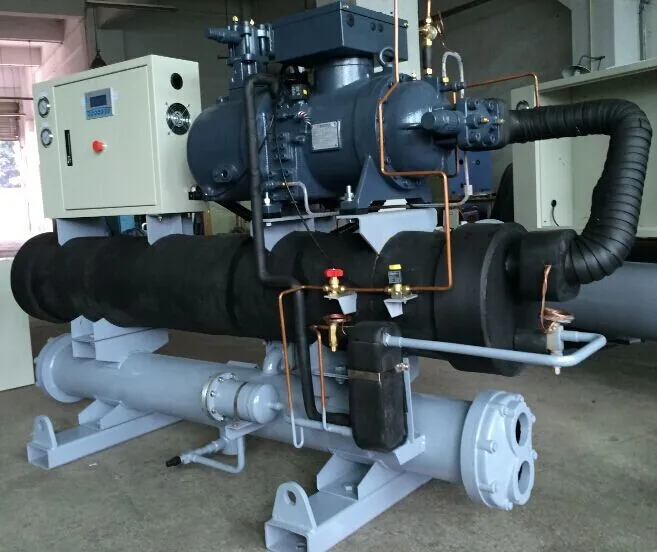

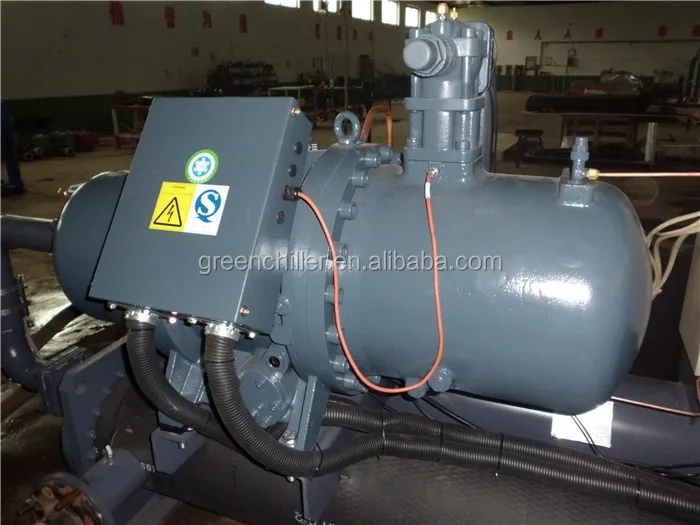

Industrial Water Cooler Chiller Components

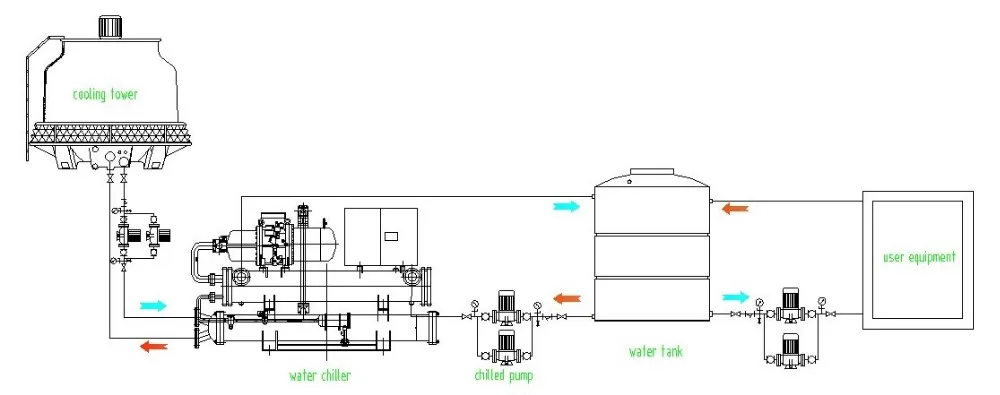

Screw Industrial Chiller Unit Working Diagram

Chiller Cooling System

Glycol Chiller Packing

Safety Protection

1. Lack of phase, reverse phase protection.

2. Motor overload protection.

3. High/low pressure protection.

4. Automatic alarm device for lacking of water.

5. Anti-freezing protection.

6. Coil overheated protection.

7. Water shortage protection.

8. Full-automatic temperature control system.

Industrial Chilling Plant

Service:

1. Warranty: 12 Months.

2. Customerized accept.

3. All extral parts for the machine can be purchased by agent price from Mgreenbelt.

4. Technical support and after-sales service free of charge.

5. Professional technical team and Sales give troubleshooting procedures.

6. Door-to-door service if necessary.

Mgreenbelt industrial water chiller manufactures air cooled water chiller, water cooled water chiller, stainless steel chiller, screw chiller from 3.5KW(1Ton)to 1500KW(500Ton), oil chiller, mold temperature controller units, cooling tower, shell and tube heat exchanger and all refrigeration spare parts.

Contact: Lean

Mobile: 008617686681006

E-mail: cnchiller(at)gmail.com

Skype: lzchiller

Established in the year 2003, we, " Mgreenbelt Machinery Co., Ltd," are engaged in manufacturing, exporting and supplying Chillers, Cooling Towers, Heat Exchangers and Components. Our range is appreciated by the clients based in various parts of China and world for its characteristics, such as robust structure, longer service life and high performance. The durable products are manufactured by experienced workers, using graded alloys and qualified electronic components. Further, for clients' covenience, we undertake the designing and turnkey projects for the devices.

At the sound manufacturing facility, we undertake the production of high performance machines. The quality controllers test the range, to ensure that it is in compliance with the degree of prevailing quality standards. Moreover, we also offer after sales services to ensure all the queries to be handled within the shortest time. We would like to grow and improve by anticipating consumers' needs, offering a better solution than competitiors and supporting customers to be confident of getting fast answers of requirement.

We have been successfully in offering machines to projects of Packaged Equipment and System, Automobile Components Producing System, Food Making, Bakery, etc. to clients from domestic, USA, Canada, Australia, Ecuador, Sudan, Russia, South Africa, Dubai, Israel, India, Philippine, Singapore, Vietnam, Thailand and Korea, etc.
