Ultra Low Temperature 25 Ton Single Compressor Glycol Chiller Price Water Cooled Water Chiller

FOB Price:

Get Latest Price

Min.Order Quantity:

1 Set/Sets

Supply Ability:

200 Set/Sets per Quarter

Port:

Qingdao; Tianjin; Shanghai; Guangzhou; Shenzhen

Place of Origin:

Shandong, China (Mainland)

Payment Terms:

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Brand:

Mgreenbelt

Products Model:

MG-85WSL

Products Details
Company Profile

Quick Details

Brand Name: Mgreenbelt

Model Number: MG-85WSL

Place of Origin: Shandong, China (Mainland)

Packaging & Delivery

Packaging Details: Water Cooled Low Temperature Chiller in a plywood case. Packing dimension: 3250*850*1550mm
Delivery Detail: Shipped in 25 days after payment

Specifications

Ultra Low Temperature 25 Ton Single Compressor Glycol Chiller PriceWater Cooled Water Chiller

PARAMETERS OF -25 DEGREE 25 TON GLYCOL WATER COOLED CHILLER
Outlet Temperature	-25 degree celsius
Water Cooled Chiller Voltage	220v,380v,415v,440v,460v,480v
Refrigerant	R404a
Glycol Chiller Cooling Capacity	88.5kW
Screw Chiller Compressor	Semi-hermetic Screw
Capacity Control	25%,50%,75%,100%
Start Method	Y-Δ
Evaporator Type	Shell-and-Tube Exchanger
Glycol Refrigeration Fluid	15.2m3/h
Condenser Type	Shell-and-Tube Exchanger
Cooling Water	36.2m3/h
Chiller Pipe Diameter	DN100

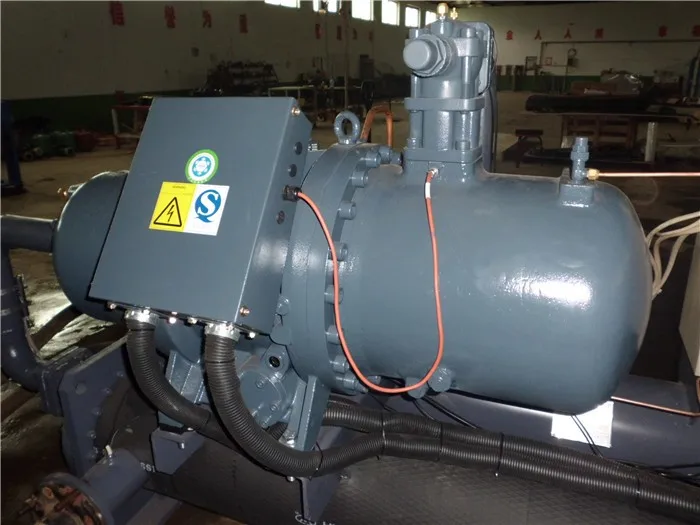

Semi-hermetic Screw Compressor

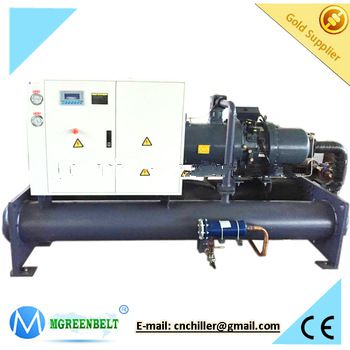

Side Picture of Water Cooled Screw Cooler Chiller Unit

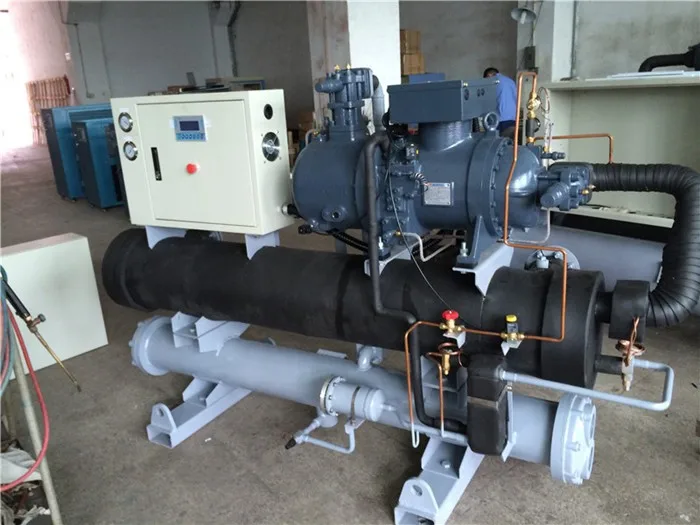

Back of Water Cooling Chiller Unit Screw Type Compressor

Microprocessor Controller of Screw Chiller

Provide diagnostic and precise temperature control
RS485 communication function for automated management

Water Cooled Chillers work with Cooling Tower and Cooling Water Pump

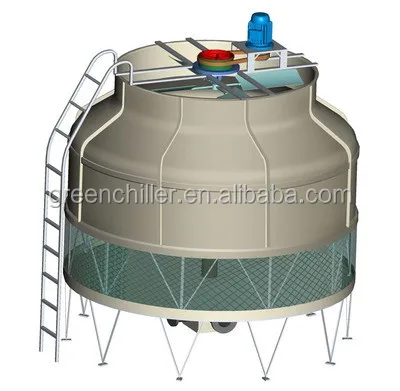

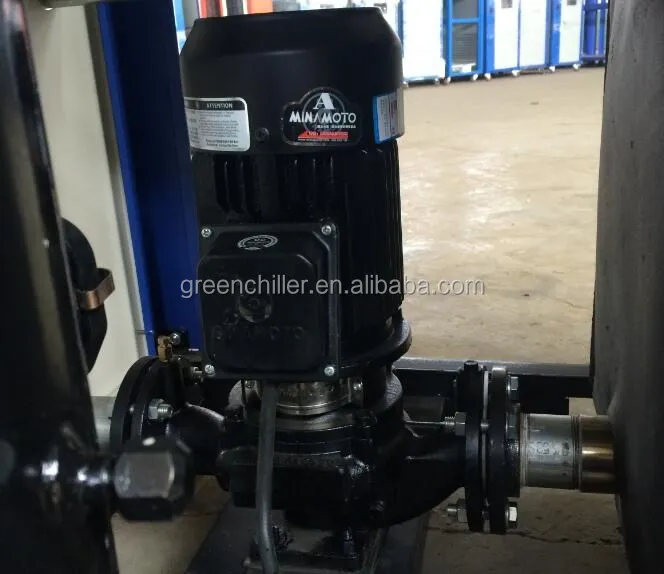

45Ton Cooling Water Tower	4kW Water Cooling Pump

Water Cooling Chiller Cooling System

Working Diagram of Screw Type Water Cooled Type Glycol Chiller

Services:
1. Warranty: 14 Months.
2. Customerized accept.
3. All extral parts for the machine can be purchased by agent price from Mgreenbelt.
4. Technical support and after-sales service free of charge.
5. Professional technical team and Sales give troubleshooting procedures.
6. Door-to-door service if necessary.

Screw Compressor Water Cooled Chillers Usages

Water cooled screw water chillers are widely used in plastic injection, extrusion, plating, molding, hydraulic, chemical, leather, printing, profiles of oxidation, reaction kettle, chemical fiber, vacuum coating, paper making, textile, central air conditioning, etc.

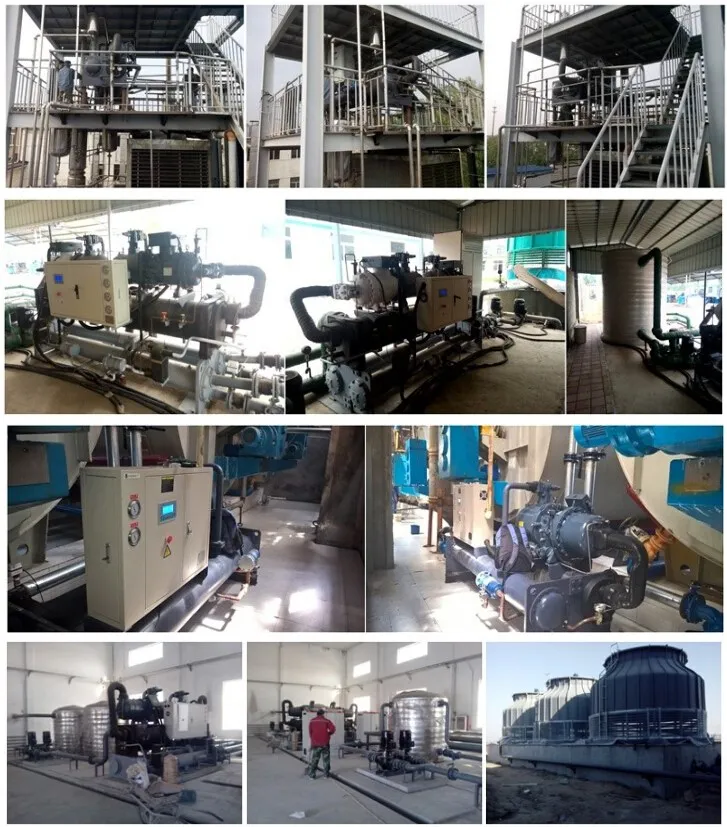

Mgreenbelt Industrial Water Chiller Plant

Contact me freely if you need industrial kinds of water chillers.

Contact: Lean

Office Phone: 86-531-80960818

Mobile Phone: 86-17686681006

Skype: lzchiller

E-mail: cnchiller (at) gmail.com

Established in the year 2003, we, " Mgreenbelt Machinery Co., Ltd," are engaged in manufacturing, exporting and supplying Chillers, Cooling Towers, Heat Exchangers and Components. Our range is appreciated by the clients based in various parts of China and world for its characteristics, such as robust structure, longer service life and high performance. The durable products are manufactured by experienced workers, using graded alloys and qualified electronic components. Further, for clients' covenience, we undertake the designing and turnkey projects for the devices.

At the sound manufacturing facility, we undertake the production of high performance machines. The quality controllers test the range, to ensure that it is in compliance with the degree of prevailing quality standards. Moreover, we also offer after sales services to ensure all the queries to be handled within the shortest time. We would like to grow and improve by anticipating consumers' needs, offering a better solution than competitiors and supporting customers to be confident of getting fast answers of requirement.

We have been successfully in offering machines to projects of Packaged Equipment and System, Automobile Components Producing System, Food Making, Bakery, etc. to clients from domestic, USA, Canada, Australia, Ecuador, Sudan, Russia, South Africa, Dubai, Israel, India, Philippine, Singapore, Vietnam, Thailand and Korea, etc.
