Water Cooled Glycol Chiller For Food Processing /Glycol Anges Chiller

---MGREENBELT Water Cooled Glycol Chiller For Food Processing Industry---

---Water Cooled Anges Chiller Product Scope---

Model:MG-30WL--------17Ton

Model:MG-40WL--------25Ton

Model:MG-50WL--------30Ton

Model:MG-60WL--------35Ton

Model:MG-70WL--------45Ton

Model:MG-80WL--------47Ton

Model:MG-90WL--------55Ton

Model:MG-100WL------60Ton

Model:MG-110WL------65Ton

Model:MG-120WL------70Ton

Please tell our engineer mananger which capacity is your need, or if that not in this scope please email us your right requirements to Grace Zhang:mg.chillers(at)gmail.com, or by whatsapp +86 18615626360, then we will send the accurate model and equipment, installation solution within 24 hours.

---Specification of Glycol  Anges Chiller MG-80CL---

---Components---

---Details Of Water Cooled Screw Anges Chiller For Food---

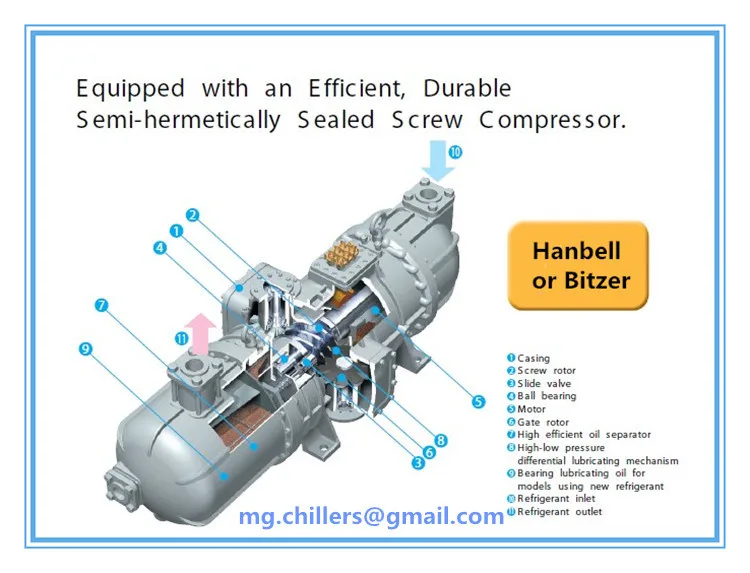

1.Compressor:

Adopt Semi-hermetic screw type compressor, advantage is high working effiency, easy to mainteance, and long working life.

Aopt fanmous brand in the world, BITZER from Germany, HANBELL from Taiwan, buy the parts from their factory directly, not transfer by distributor, to ensure the after-sale service, quality, save the lead time, and the most important is we got them with competitive price than other, so that can save our customer's cost, so this is one of the reason you choose MGREENBELT.

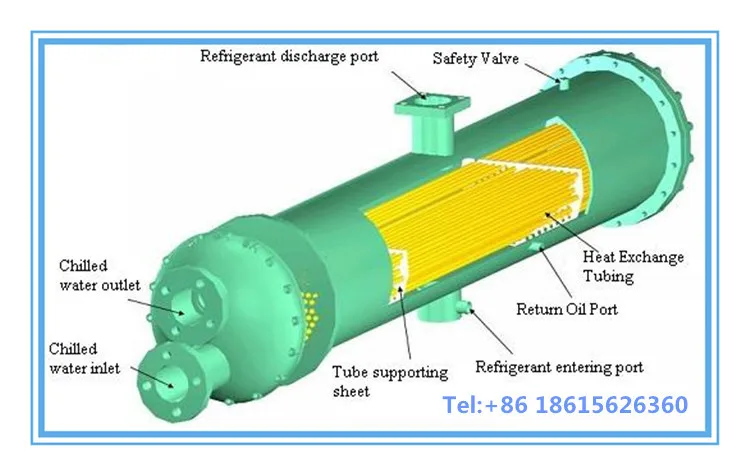

2.Evaporator

Some customer called it heat exchanger, we adopt the sealed  shell and tube type, it can ensure a high cooling effiency than tank type.

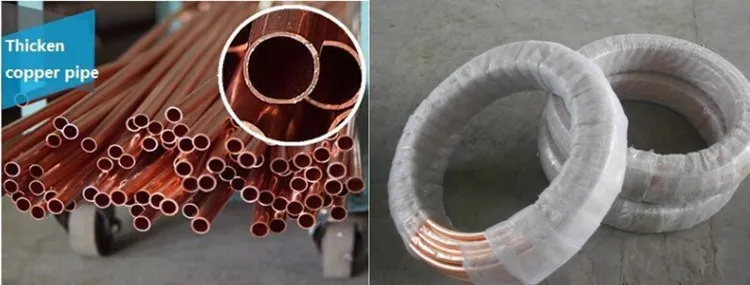

For the copper inside the heat exchange, we adopt 6m copper for 1hp cooling power, to satisfy the internation standard, to ensure the high cooling effiency.

And for the thickness of copper, we adopt 1mm, as we know some other supplier who with cheaper adopt 0.6mm, so of couse MGREENBELT can bring you a long working life, this is the second why you choose us.

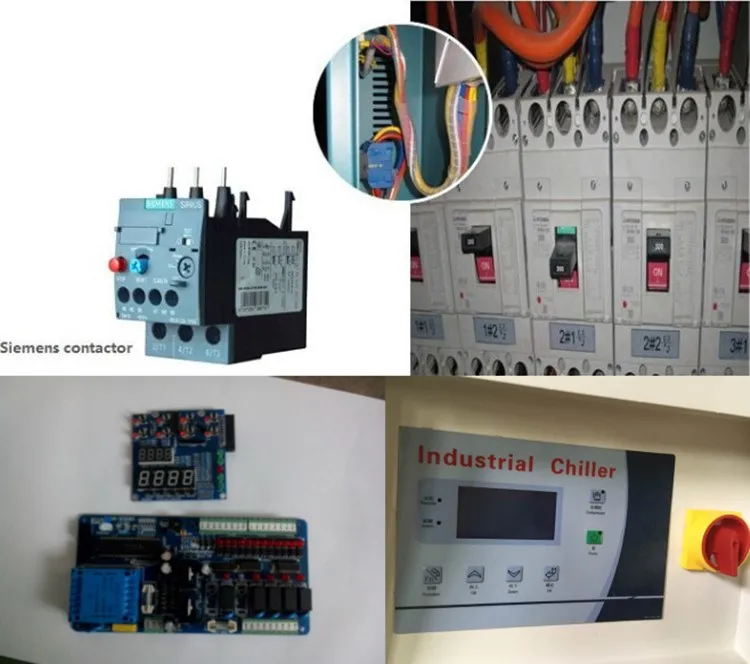

3. Controller

1).If you don't have any special requirements in the project, we will provide you the micro computer controller, this type can satisfy all of your need in the cooling work.

Professional protection system
•Lack of phase, reverse phase protector.
•Compressor overload protector.
•High/low pressure protector.
•Automatic alarm device for lacking of water.
•Anti-freeze protector.
•Coil overheated protector.
•Water shortage protector.
•Full-automatic temperature control system.

2).PLC controller optional.

---Water Cooled Anges Chiller Display---

---Customer Site---

From 2003, MGREENBELT has exported the water cooled chiller machine to the world widely, we specialized the industry include:

Food, beverage, brewery, dairy those industry widely adopt our glycol chiller which with outlet temperature 0, -5, -10 degree C.

And also plastic injection, CNC Equipment, electroplating processing, printing and etc, those industry widely adopt our water chiller series which with +5 to +35 degree C.

 ---Package and delivery---

1). Fumigation-free wooden case for each water chiller machine.

2). Chiller machine will send to Qingdao loading port if clients don't have any special requirements

---MGREENBELT Promise---

1.Our water cooled glycol chiller promise 14 months warranty, any parts can from us by free if any quality problem.

2.Any problem will be response with and solve it within 48 hours.

3.Engineer can be feedback and online 24 hours by whatsapp +86 18615626360.

4.If the water cooled glycol chiller have 3 times big quality problem within warranty, customer can change a new machine, we will responsible for any charge.

5.Out of waranty, we will provide our parts with agent price for you, and will responsible for the service any time.

Mgreenbelt is a leading specialized manufacturer of Water Chiller For Bottle Blowing , established in 2003, our factory is located in Jinan city, covering a total area of 34,000 square meters.

Our mission is to provide customers the best products and services through our wide range of equipment, parts, and services. Our goal is to be a one-stop-shop for your water system needs. To deliver on that promise we only carry the highest quality products and services. We also have knowledgeable application engineering on hand to answer any questions or recommend solutions for your process cooling requirements.

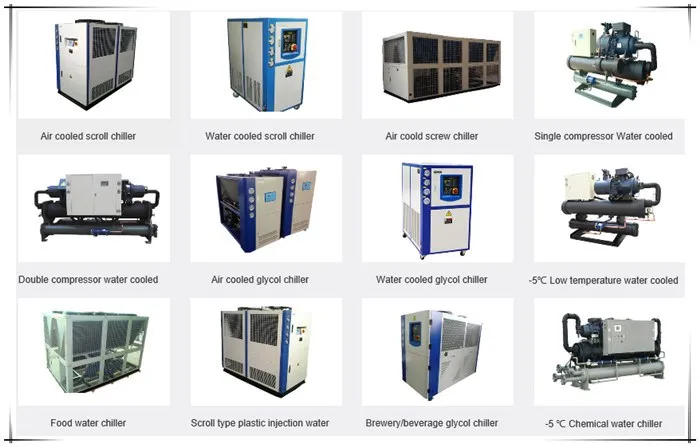

The product series include:

Q1: How to choose the right chiller?
A1:
1).Power supply voltage : PH/ V/ HZ?
2).Refrigerant type R22(Freon ) or CFC free one R407C?
3).What is the cooling capacity requests , KW?
4). What is the outlet water temperature and return water temperature to chiller?
5). Do you have the requests for the water flow rate , water pressure and water quality?
6). For what kind of equipment or cooling system( Close loop or open loop ) in your side?
7). What is the maximum ambient working temperature in your factory?

Q2: What power supply chiller you can produce?
A2: Our standard power supply is 3phase-380V-50Hz, Customzied different for optaions, like 3phase- 415V,440V,460V,480V,- 50Hz or 60Hz

Q3:What is your Payment terms?

A3:Standard is 50% in advance to production, the balance before shippment, this mainly depends on the order.

Q4:What refrigerant you can supply?
A4: We have R22, Eeo friendly R407c, R410a, R134a,R404a depends on your choice.

Q5:This model and type chiller is not what I need, what should I do?
A5:Please tell us the Q1, or your further requirements, then the solution will be sent to your email with prompt.
