Oil water-cooled screw cooler

FOB Price:

Open price

Min.Order Quantity:

1 Set/Sets

Supply Ability:

300 Set/Sets per Month

Port:

Qingdao/Shenzhen

Place of Origin:

Shandong, China (Mainland)

Payment Terms:

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Brand:

Mgreenbelt

Products Model:

MG-43WSL

Products Details
Company Profile

Quick Details

Brand Name: Mgreenbelt

Model Number: MG-43WSL

Place of Origin: Shandong, China (Mainland)

Packaging & Delivery

Packaging Details: Seaworthy Plywood Case For oil water-cooled screw cooler
Delivery Detail: 25days after payment

Specifications

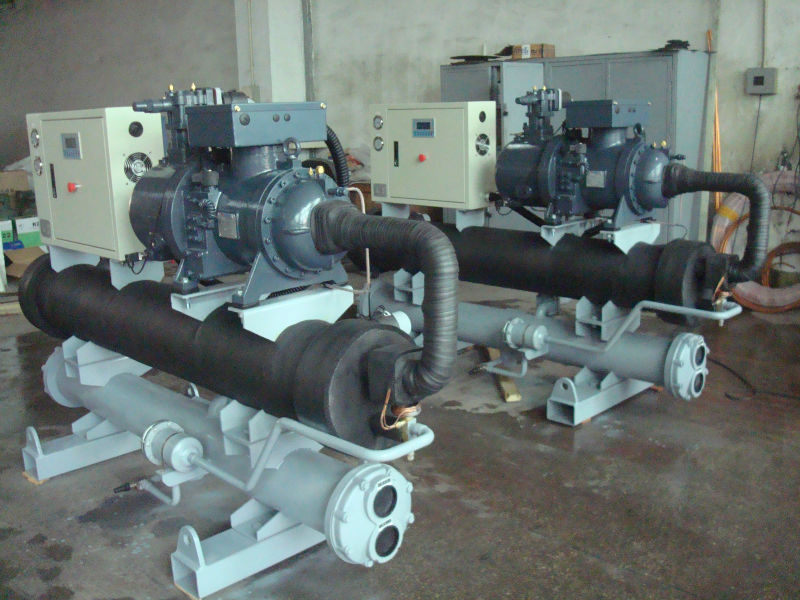

Oil water-cooled screw cooler
1.High quality,good performance
2.Timely delivery
3.Warranty 14 months
4.CE certification

Oil water-cooled screw cooler

We are specialized manufacturer!

Product Description

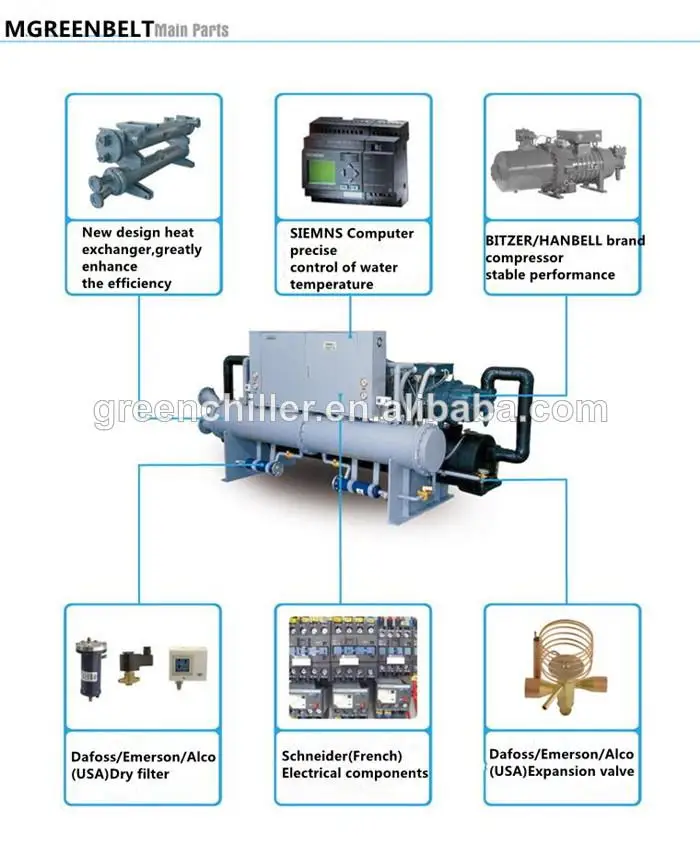

1. Configuration of oil water-cooled screw cooler

2.Parameters of oil water-cooled screw cooler

Model	Unit	MG-43WSL
Nominal cooling capacity	-15°C Outlet (KW)	112.9
	-15°C Outlet (kcal/h)	97100
	-25°C Outlet (KW)	74.5
	-25°C Outlet (kcal/h)	64200
	-35°C Outlet (KW)	43
	-35°C Outlet (kcal/h)	37200
Power consumption	KW	43.5
Running Current	A	71.6
Power supply	3PH-220/380/415/460V-50/60HZ
55% glycol flow	m3/h	9.6
Cooling water flow	m3/h	14.8
Refrigerant	Type	R22/R134a/R407c/R410a
	Control mode	Thermostatic Expansion Valve
	Charge(Kg)	46
Compressor	Type	Semi-hermetic screw type
	Quantity	1
	Start-up mode	Y-triangle
	Energy adjust range%	0,33,66,100 or 0,25,50,75,100
	Power(kw)	43.8
Condenser	Type	Shell and tube
Condenser	Inlet and outlet pipe diameter(mm)	PT 3”
Evaporator	Type	Shell and tube
Evaporator	Inlet and outlet pipe diameter(mm)	PT 3”
Dimension	Length(mm)	2600
	Wide(mm)	850
	High(mm)	1200
Weight	kg	1680

3.Working principle of oil water-cooled screw cooler

4. Safety Protection System of oil water-cooled screw cooler
1). Lack of phase, reverse phase protector.
2). Motor overload protector.
3). High/low pressure protector.
4). Automatic alarm device for lacking of water.
5). Anti-freeze protector.
6). Coil verheated protector.
7). Water shortage protector.
8). Full-automatic temperature control system

5. Applications of oil water-cooled screw cooler

Company Information

1. Cetificates Of oil water-cooled screw cooler

2. MGreenbelt is a leading specialized manufacturer of process cooling equipment in Northern China,founded in 2003, covering 34,000 square meters .

3.Our team of Mgreenbelt

Packaging & Shipping

Seaworthy Plywood Case For oil water-cooled screw cooler

Our Services

A.14 Months warranty and life time technical maintenance offered.
B.All extra parts for the machine can be purchased with agent price from MGreenbelt.
C.Professional technical team and sales person give you regarding troubleshooting procedures via Internet and Phone any time when needed.
D. Free and Professional Training at our Factory under the relaxed condition.

FAQ

Please let us know the following items,before choose the model.

Skype:jack.sun97

Established in the year 2003, we, " Mgreenbelt Machinery Co., Ltd," are engaged in manufacturing, exporting and supplying Chillers, Cooling Towers, Heat Exchangers and Components. Our range is appreciated by the clients based in various parts of China and world for its characteristics, such as robust structure, longer service life and high performance. The durable products are manufactured by experienced workers, using graded alloys and qualified electronic components. Further, for clients' covenience, we undertake the designing and turnkey projects for the devices.

At the sound manufacturing facility, we undertake the production of high performance machines. The quality controllers test the range, to ensure that it is in compliance with the degree of prevailing quality standards. Moreover, we also offer after sales services to ensure all the queries to be handled within the shortest time. We would like to grow and improve by anticipating consumers' needs, offering a better solution than competitiors and supporting customers to be confident of getting fast answers of requirement.

We have been successfully in offering machines to projects of Packaged Equipment and System, Automobile Components Producing System, Food Making, Bakery, etc. to clients from domestic, USA, Canada, Australia, Ecuador, Sudan, Russia, South Africa, Dubai, Israel, India, Philippine, Singapore, Vietnam, Thailand and Korea, etc.
