3Ph 220V 60HZ Industrial chiller machine price philippines / chiller prices philippines / water cooled chiller philippines

Industrial chiller machine price philippines details

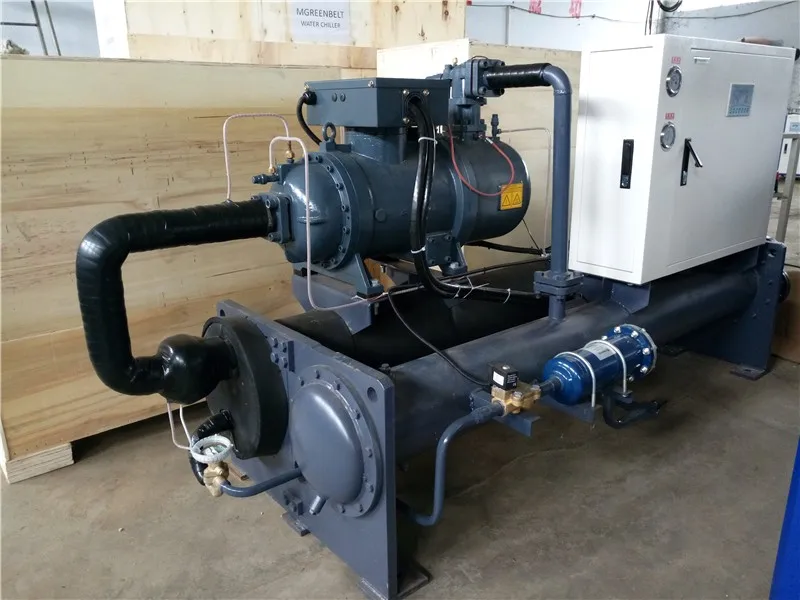

Water-cooled screw chiller remove heat from your process and reject heat to a water source. This water source is generally a cooling tower mounted outside that is sold separately. Although not as common as its Air-Cooled chiller counterpart, for many larger industrial process applications, that have an on-site cooling tower system, water-cooled process chillers can be a great fit. Water-cooled fluid process chillers remove heat from your process and reject heat to a water source. This water source is generally a cooling tower mounted outside that is sold separately. Although not as common as its Air-Cooled chiller counterpart, for many larger industrial process applications, that have an on-site cooling tower system, water-cooled process chillers can be a great fit.

Main Features of industrial chiller machine price philippines

1.Well Known Brand Compressor:

(1).Adjustable infinite or closely stepped capacity control, features energy efficient, stable and quiet running;

(2).Built-in full intelligent monitoring and protection including thermal motor temperature monitoring, phase sequence monitoring, manual reset lock-out, oil temperature sensor;

(3).Adopts Taiwan HANBELL brand semi-hermetic screw compressor, the lastest 5 to 6 patented screw rotor profile with excellent efficiency.

2.Advance Control System:

(1).Industrial micro centralized control combined with compressor capacity control system, precisely monitor;

(2).Integrated protection for low temperature, high/low pressure, anti-freezing, phase missing, a nti-phase, overload, motor over temperature, oil differential, flow switch, start up latency.

(3).Optional operation language, menu leading, unit running state easy to adjust.

3.Heavy-Duty Steel Frame Construction
(1).Q235 carbon steel, other materials customize can be accept.
(2).Flange and nutoutlet of the evaporator and condenser pipe.
(3).High quality EMERSON brand thermostatic expansion valve and dryer filter.
(4).2cm Insulation materials for evaporator and pipe.

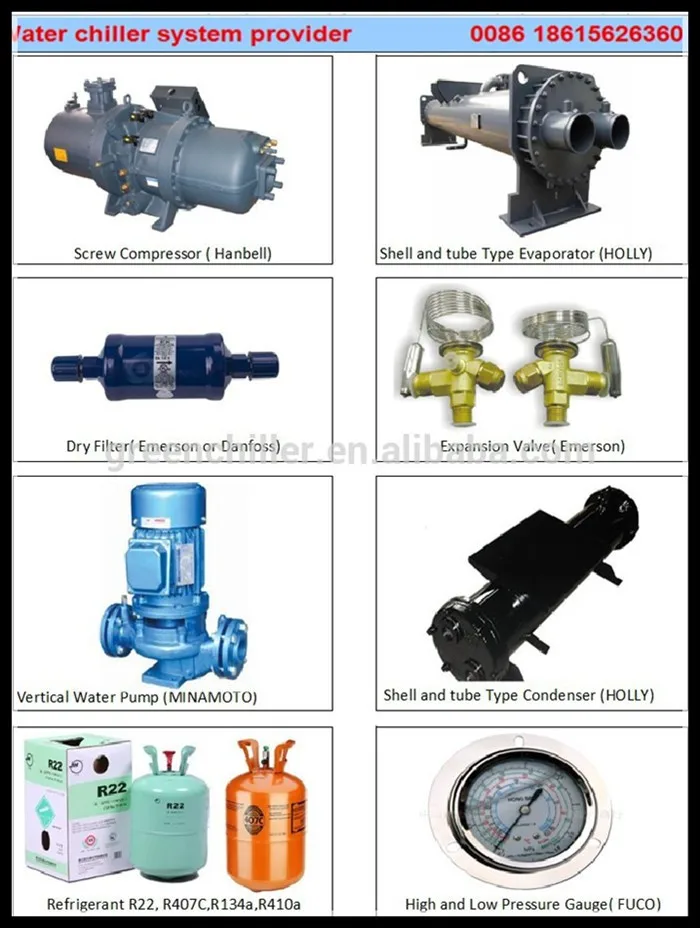

Machine Parts

Name: Control system

Brand: Punp, SIEMNS ,1. Schneider

Original: USA,Germany

Micro-computer control system, or PLC control system for industrial chiller machine price philippines.

Main Features

Name: Dry filter
Brand: Danfoss/Emerson
Original: USA
Expansion valve, Filter, Solenoid valve choose the top quality in this line, to insure the industrial chiller machine price philippines quality.

Machine Parts

Name: Dry type shell and tube evaporator
Brand: MGREENBELT
Original: China
1. High Efficiency copper, increase the tube heat exchange.

Evaporator with drainage device, to prevent caused by low temperature pipe freezing in winter, cold heat exchange tube.

3. Evaporator in/out with temperature control, to prevent the low temperature make heat exchange pipe rupture.

Main Features

Name: High efficiency shell and tube condenser
Brand: MGREENBELT
Original: China
1. Horizontal type design, convenience for repair.

2.Shell and tube condenser is made of high quality copper tube, large pipe diameter, large flow rate, high coefficient of heat transfer.
