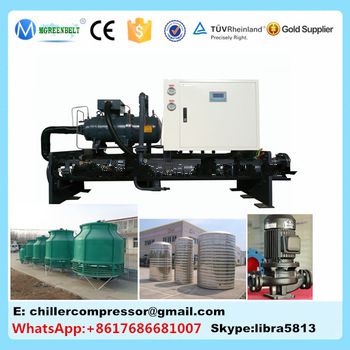

Screw Industrial Water Cooled Chiller with Cooling Pumps and Water Tower

FOB Price:

Get Latest Price

Min.Order Quantity:

1 Unit/Units

Supply Ability:

300 Set/Sets per Year

Port:

Qingdao,Shenzhen,Guangzhou,Shanghai,Ningbo

Place of Origin:

Shandong, China (Mainland)

Payment Terms:

L/C,T/T,MoneyGram

Brand:

MGREENBELT

Products Model:

MG-80WS

Products Details
Company Profile

Quick Details

Brand Name: MGREENBELT

Model Number: MG-80WS

Place of Origin: Shandong, China (Mainland)

Packaging & Delivery

Packaging Details: International wooden case
Delivery Detail: 15-30 days

Specifications

Screw Industrial Water Cooled Chiller with Cooling Pumps and Water Tower

Product Description

Applications industry

MGreenbelt water chillers are applied in variety industries like plastic processing industry,food and beverage industry,chemical and Pharmaceutical industry,electroplating industry,etc.which can control the chilled temperature precisely and greatly improve the production.

Main features

1. Refrigerant available:R22,R407C,R410A,R134A;

2. Power Supply: 3 PHASE-220/380/400/415/460/600V-50/60HZ;

3. Water Cooled Chiller Cooling capacity: 20Tr - 300 Tr

4. Imported Hanbell or Bitzer Semi-hermetic Screw compressor, Cooling capacity control available at four steps(100%-75%-50%-25%),or no steps control style;

5. High efficient shell and tube type evaparator and condenser

6. Microcomputer controller, PLC for options

7. Complete refrigerant charge at chiller Factory

8. Continuous Capacity control

9. Temperature control range from 3 deg C to 30 deg C

10.Comprehensive protection system

Standard cooling system drawing

Technical Specification

Screw Water Cooled Chiller Model MG-30WS MG-40WS MG-50WS MG-60WS MG-70WS MG-80WS MG-90WS MG-100WS MG-110WS USRT 25.1 34.2 44.9 48.9 59.6 77.1 81.4 89.1 96.4 Capacity Kcal/h 75938 103458 135794 147834 180256 233060 246304 269524 291712 KW 88.3 120.3 157.9 171.9 209.6 271 286.4 313.4 339.2 Power Supply 3PHASE-220V/380V/415V-50HZ Refrigerant Type R22/R407c Control Type Thermostatic expansion valve Type Semi-closed screw type Compressor Power(kw) 21.4 28.2 35.4 38.8 47.2 57.9 60.9 67 73.1 Start mode Y-delta Capacity 25-50-75-100(%) Type Shell and tube type Evaporator Flow rate(m³/h) 15.1 20.6 27.1 29.5 35.9 46.5 49.1 53.7 58.1 Fitting pipe DN50 DN65 DN80 DN80 DN80 DN100 DN100 DN100 DN100 Condenser Type Shell and tube type Cooling water Flow(m3/h) 20.7 28 36.5 39.7 48.4 62 65.5 71.7 77.7 Inlet/Outlet Dia DN50 DN65 DN80 DN80 DN80 DN100 DN100 DN100 DN100 Dimension L(mm) 2300 2500 2500 2500 2800 3200 3200 3500 3500 W(mm) 750 750 750 750 800 800 800 900 900 H(mm) 1500 1500 1500 1500 1500 1500 1500 1500 1800

Established in the year 2003, we, " Mgreenbelt Machinery Co., Ltd," are engaged in manufacturing, exporting and supplying Chillers, Cooling Towers, Heat Exchangers and Components. Our range is appreciated by the clients based in various parts of China and world for its characteristics, such as robust structure, longer service life and high performance. The durable products are manufactured by experienced workers, using graded alloys and qualified electronic components. Further, for clients' covenience, we undertake the designing and turnkey projects for the devices.

At the sound manufacturing facility, we undertake the production of high performance machines. The quality controllers test the range, to ensure that it is in compliance with the degree of prevailing quality standards. Moreover, we also offer after sales services to ensure all the queries to be handled within the shortest time. We would like to grow and improve by anticipating consumers' needs, offering a better solution than competitiors and supporting customers to be confident of getting fast answers of requirement.

We have been successfully in offering machines to projects of Packaged Equipment and System, Automobile Components Producing System, Food Making, Bakery, etc. to clients from domestic, USA, Canada, Australia, Ecuador, Sudan, Russia, South Africa, Dubai, Israel, India, Philippine, Singapore, Vietnam, Thailand and Korea, etc.
