Brand Name: MGREENBELT
Model Number: MG-150WS
Place of Origin: Shandong, China (Mainland)

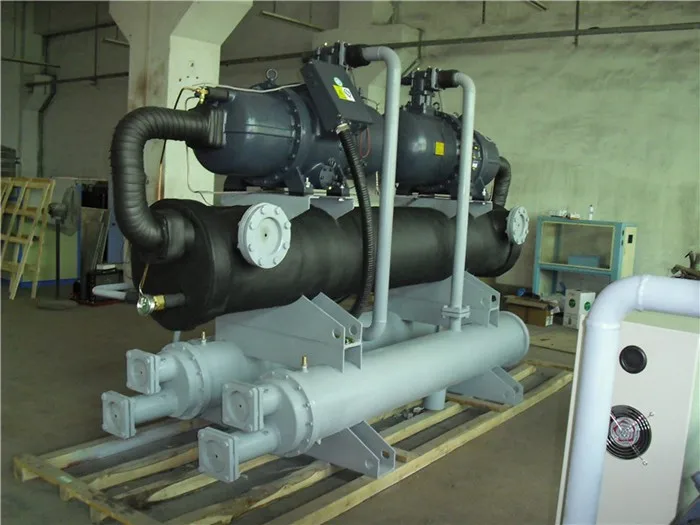

5 Degree C Outlet Industrial Water Cooled Screw Chiller With Cooling Tower
Water cooling solution provider since 2003!
Chiller With Cooling Tower
Chiller With Cooling Tower unit features:
1.Semi-hermetic twin screw compressor, excellent rotor & high efficient motor.
2.Continuative energy regulation
3.Several relatively stable resources can be used , such as groundwater, surface water , specific waste water , deepest lake, Waste heat drainage, geothermal water and ground coupled. No pollution while running.
4.Multi use of the machine, refrigerating, heating and the hot water can be available, save cost and space. Switch 5,with water pipe, easy for control and operation without cooling tower.
6.It features short circuit voltage phase lack protection, phase sequence protection, Circuit voltage phase lack protection,
7.Compressor heat ,overload protection and alarm. Oil level switch protection, cooling water & freeze water over regular range protection and alarm and other protection ensure runs regularly.
8.Programmable logic controller, it is can be controlled long-range. The operating data can be recorded ,indicated and show the bug.
Technical Parameter Of Chiller With Cooling Tower:
| Model | MG-150WS | ||
| Nominal cooling capacity | kcal/h | 403512 | |
| kw | 469.2 | ||
| Running current | A | 200 | |
| Input power | kw | 99.7 | |
| Chilled fluid flow | M3/h | 80.4 | |
| Cooling water flow | M3/h | 107.3 | |
| Power supply | 3PH-380V-50HZ | ||
| Refrigeration oil | Type | HBR-A01 | |
| Charge | L | 16 | |
| Refrigerant | Type | R22/R134a/407c | |
| Type of control | Thermostatic expansion valve | ||
| Compressor | Type | Semi-hermetic screw type | |
| Quantity | 1 set( 2 Optonal) | ||
| start-up mode | Y | ||
| power | Kw | 99.7 | |
| Capacity control | % | 0,33,66,100 or 0,25,50,100 | |
| Evaporator | type | Shell and tube | |
| Inlet and outlet pipe diameter | DN125 | ||
| Condenser | Type | Shell and tube | |
| Inlet and outlet pipe diameter | DN125 | ||
| Dimension | Length | mm | 3800 |
| Width | mm | 1200 | |
| Height | mm | 1800 | |
| Net weight | Kg | 2000 | |
Chiller Water For Plastic Machine
About Our Chiller With Cooling Tower:
*Power supply:3PH-200V/220V/380V/415V-50HZ/60HZ
*Refrigerant R22/R407C/R134a
*Set temperature range: From -30 to +35°C
*Cooling capacity: 0.6HP-720HP (0.5tons-700tons)
Chiller With Cooling Tower
---Single Compressor Chiller With Cooling Tower---
Chiller With Cooling Tower
Chiller With Cooling Tower
---Twin-Compressor Chiller With Cooling Tower---
--Cooling Tower Chiller With Cooling Tower--
Chiller Water For Plastic Machine
Chiller With Cooling Tower
---Air Cooled Type Chiller With Cooling Tower Optional---
Chiller With Cooling Tower
---Appliation Of MG Chiller With Cooling Tower---

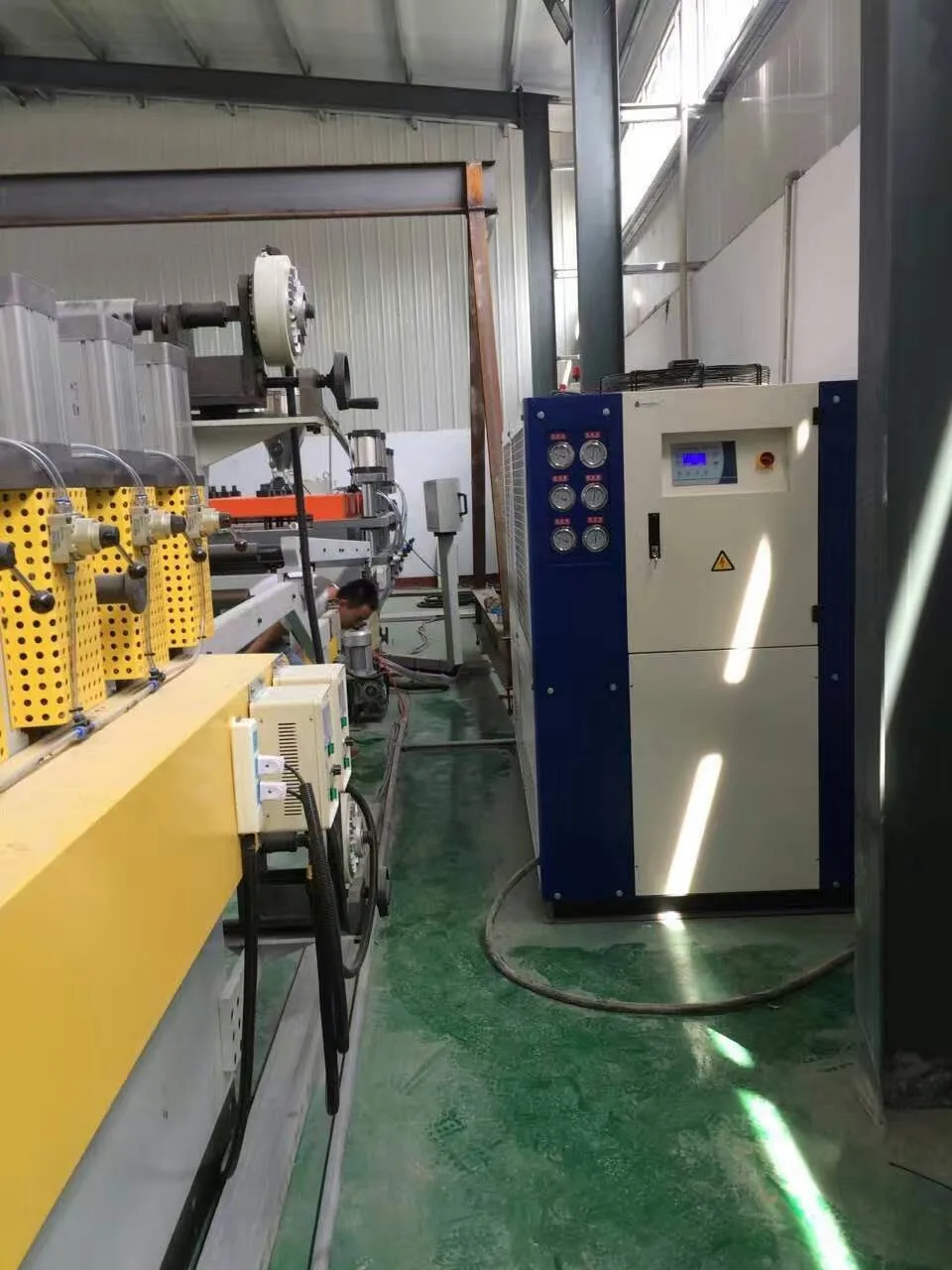

MG-W series Water chiller for pools widely used in plastic injection, extrusion, plating, mold, hydraulic, chemical, leather, printing, profiles of oxidation, reaction kettle, chemical fiber, vacuum coating, paper making, textile, central air conditioning refrigeration and various aspects of water centralized water supply, especially suitable for the inconvenience for water and the water pipe ground.
Chiller With Cooling Tower
In order to quote you an accurate model and price, it must be if you can kindly inform your working requirements as follows:
Call Me, Talk More:
Ms Grace Zhang
Shandong Mgreenbelt Machinery Co.,Ltd
Tel: +86-17686681009(call, whatsapp, weichat)
Address: Jinan.China, welcome to your visit.
Looking forward the distributor from all over the world!
