New condition glycol chiller / beer wort chiller

Solutions designed by engineer---

The jacket fermenting tanks is a closed lopp, so we need provide a open loop (a SS tank with coil Evaporator).  The chiller made with a Stainless steel water tank with coil as evaporator, the cold water out from the chiller will go to cool the jacket tank.

If you have a glycol tank in cooling system, we will provide you a chiller with shell and tube evaporator. The chiller will connect to the glycol directly. You know the chiller will cooling for glycol tank and the glycol tank will cooling for fermentation tank.

If you have different requests, please contact us, we will provide the comlete new solutions for your special demands.

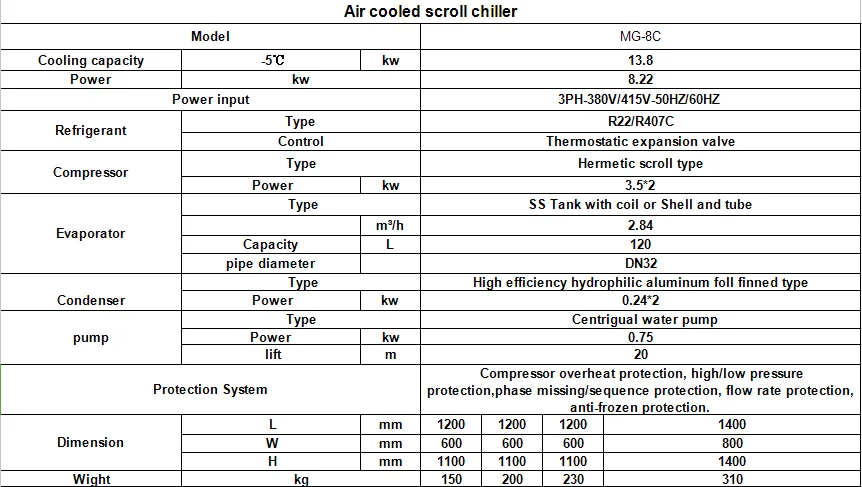

2017 hot sale Air cooled chiller for beer brewing system, pls kindky check the technical information of 8HP chiller in the following:

MG series water chillers have the characters of easy operation, reliable design and good quality, are the best partner for the industry manufacturing.They can control the required temperature during manufacturing exactly and then increase the producing efficiency and good quality. pls see the follow products for different industries.

Advantages

1. The compressor are imported from Japan and USA, built-in safety protection, they have the characters of low noise and power saving

2. With the SCHNEIDER controller to make sure the stable working and long-time life

3. Imported Italy pump with the big water flowing, high efficiency and durable

4. With the stainless steel tank type evaporator , built-in watering device, it can be cleaned easily

5. With the tube condenser, reliable design and with the good heating exchanging ability

Electrostatic spraying shell, European design make them elegant

1. Payment Terms:
T/T - 30% deposit before production,70% balance before delivery, or other terms
2. Delivery Detail: About 20 workdays after payments.
3.Pacage Terms:
International Standard Wooden Case for Export

Pls kindly offer the following information:
1.Cooling capacity
2.Inlet /outlet water temperature
3.Chiller water flow rate
4.Retrigreant
5.Voltage/Frquency
