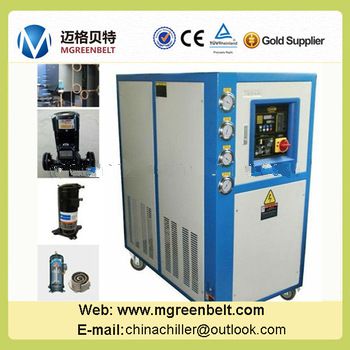

5 ton efficient condensing unit

5 ton efficient condensing unit

* Item: 5 ton efficient condensing unit
* Cooling capacity:17.7kw
* Air cooling condenser:Shell and tube
* Refrigerant:R407c/R22
* Power supply:3ph-220/380/415/460V-50/60Hz
* Water flow:3m3/h

Features and Details of 5 ton condensing unit :
This whole family of water chillers with a wide range of cooling capacity 2.85kw to 2015.6kw.
A.The scroll type water-cooled chillers with small footprint and compact pipeline design only need add water pips outside. All of those benefits make the units easy to be installed and maintained.
B.The scroll type air-cooled chillers utilize import hermetically sealed refrigerant compressor with virtues of high efficiency, low operating sound, little vibration, reliable performance, long life, etc.
C.The micro-computer control system we used has functions of safe protection, communication, failure judgment automatic adaptation, etc.
D.The main refrigeration parts we used are all the national or international famous products with excellent efficiency and reliable performance.
E.The units include two kinds - Integral type and modular type. So it can meet different load requests and save energy throughout the year. The integral type is an independent full-featured air-cooled chiller, while the modular type units usually are made of 2~8 modules. Besides, the modular type unit has large cooling capacity and standby function.
F.Multi-protection : High/low pressure protection, anti-freeze protection of chilled water, power-phase sequence protection, phase-lack protection, the water-flow inadequate protection, overheating protection of compressor motor, automatic start-up function after power cut.

1. Configuration of 5 ton condensing unit

2. Parameters of 5 ton condensing unit

 3. Working principle of 5 ton condensing unit

4. Safety protection system of 5 ton condensing unit
1). Lack of phase, reverse phase protector.
2). Motor overload protector.
3). High/low pressure protector.
4). Automatic alarm device for lacking of water.
5). Anti-freeze protector.
6). Coil verheated protector.
7). Water shortage protector.
8). Full-automatic temperature control system.

5.Applications of 5 ton condensing unit
MG  brand water chiller are the perfect solution for any application, in particular for the plastic field, such as : injection molding, extrusion(sheet & profile), blow molding, thermoforming, PET, plastic film, and other industrial field : electroplating (surface treatment), medicine, chemical, hydraulic system, leaser, shoe-making, electronic, print, etc.

1.Cetificates Of 5 ton condensing unit

2.MGreenbelt is a leading specialized manufacturer of process cooling equipment in Northern China,founded in 2003,covering 34,000 square meters .

3.Our team of Mgreenbelt

After-sale service:
1).Customized accept.
2).Installation solution supply.
3).14 Months warranty.
4). Artificial and out of warranty, all extra parts for the machine can be purchased with agent price from MGreenbelt.
5).Any quality problem will be solved within 48 hours, we can send engineet come, and if our chiller have 3 times big quality problem, customer can send back to us, we pay all charge.
6). Free and Professional Training at our Factory under the relaxed condition.

Customer visit
We welcome customers to visit our factory and communicate with technical problems!

Packing : Seaworthy Plywood Case for  5 ton condensing unit

Please let us know the following items,before choose the model.

If you are not familiar with our 5 ton condensing unit,that's all right,we can serve you a
solve projact.
But you need to give us the information as follows:?
1. What's your industry(you choose the chiller to do what?)
2. What's your cooling capacity?(How many Kw)
3. What's the inlet or outlet water temperature?(degree C)
4. What's the chilled water flow rate?(m3/h)
5. What's the refrigerant? R22/R134a/R407c/R410a (What's your state standards or Industrial standards?Whether the cooling
water direct?contact the food?)
6. What's the voltage and frequency?(Special voltage may need more days)
