Brand Name: MGREENBELT
Model Number: Aquarium Chiller For Sale
Place of Origin: Shandong, China (Mainland)
1.Scroll Type Water Cooled Aquarium Chiller For Sale
1)Aquarium Chiller For Sale
2)Scroll Compressor
3)Various Cooling Capacity
4)CE Certificate
2.Detailed Introduction For Water Chiller

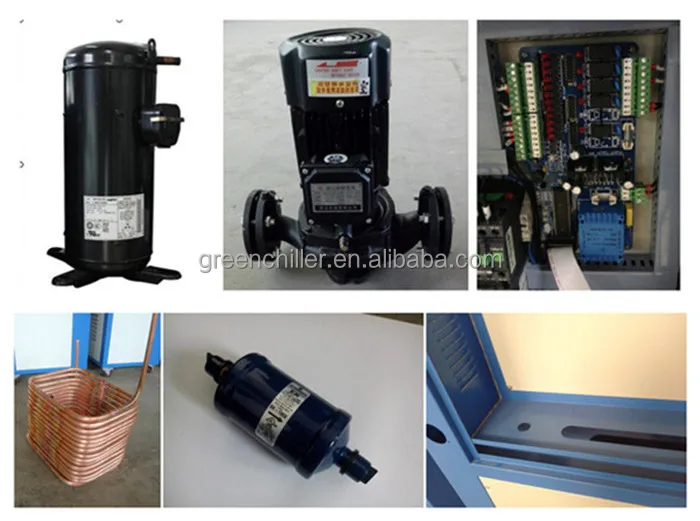

1) Spare parts for water chiller(spare parts for the water chiller are used the popular brand, such as Copeland compressor, Schneider controller,etc)
2) Advantages For Water Chiller

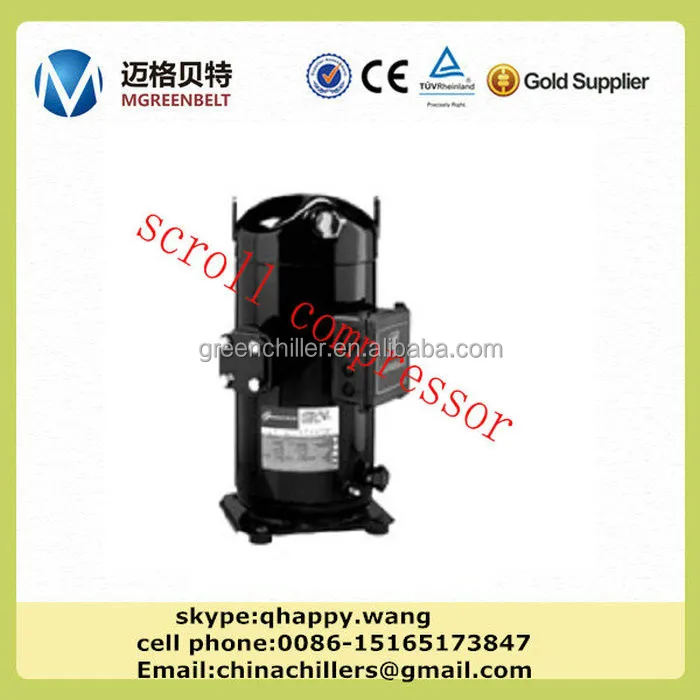

Adopt international advanced scroll compressor( for the scroll compressor, usually use the Copeland Or Sanyo compressor)

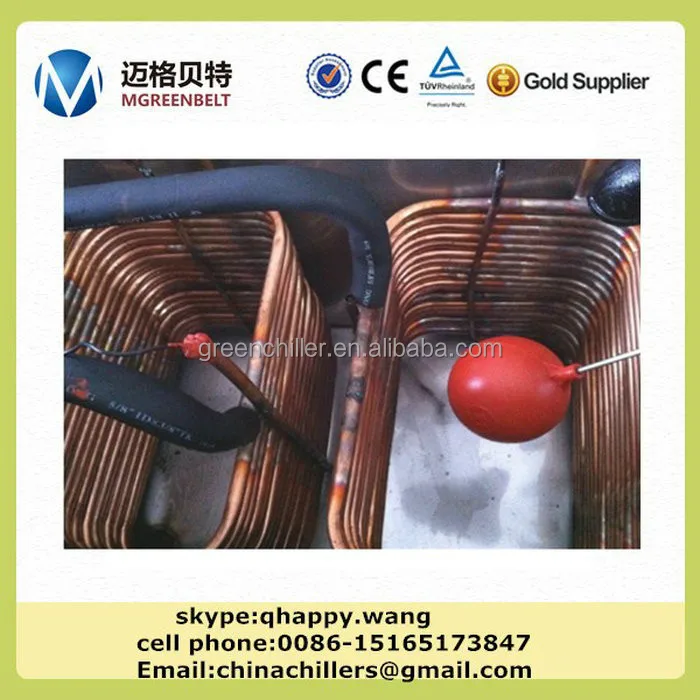

Built-in stainless steel water tank/shell and tube evaporator( the tank with coil are made of 1mm copper to make sure the good quality)

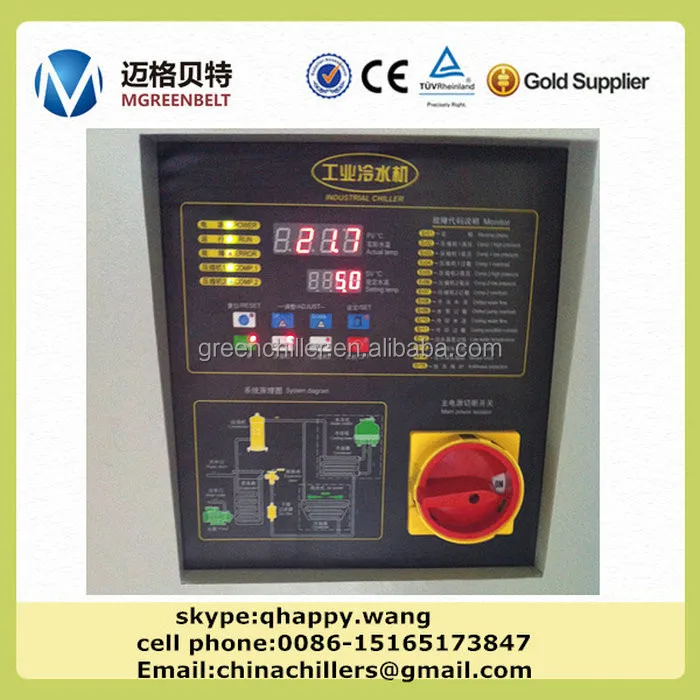

Controlled by microcomputer way(Schneider controller)
3) Technical Parameters For Water Chiller
Specification model | Unit | MG-5W |
Nominal cooling capacity | kcal/h 50HZ/60HZ | 12900 15394 |
KW 50HZ/60HZ | 15.00 17.9 | |
Input power | KW | 5.2 |
Set temp. range | 0ºC~50ºC | |
Power supply | 3PH-380V-50HZ (200V/220V/415V-50HZ/60HZ) | |
Refrigerant | Type | R22/R134a/407c |
Type of control | Capillary | |
Compressor | Type | Hermetic scroll |
Power(kw) | 4.55 | |
Condenser | Type | shell and tube |
Cooling water flow(m3/h) | 3.5 4.2 | |
Inlet and outlet pipe diameter(inch) | 1-1/2" | |
Evaporator | Type | Tank with coil/shell and tube |
Chilled fluid flow(m3/h) | 2.63 3.16 | |
Volume(L) | 60 | |
Inlet and outlet pipe diameter(inch) | 1" | |
Pump | Power(kw) | 0.75 |
Lift(m) | 20 | |
Dimension | Length(mm) | 890 |
Wide(mm) | 500 | |
High(mm) | 840 | |
Weight | kg | 150 |
Safety protection | compressor over temperature,over current,high and low pressure,Phase sequence,phase-missing |

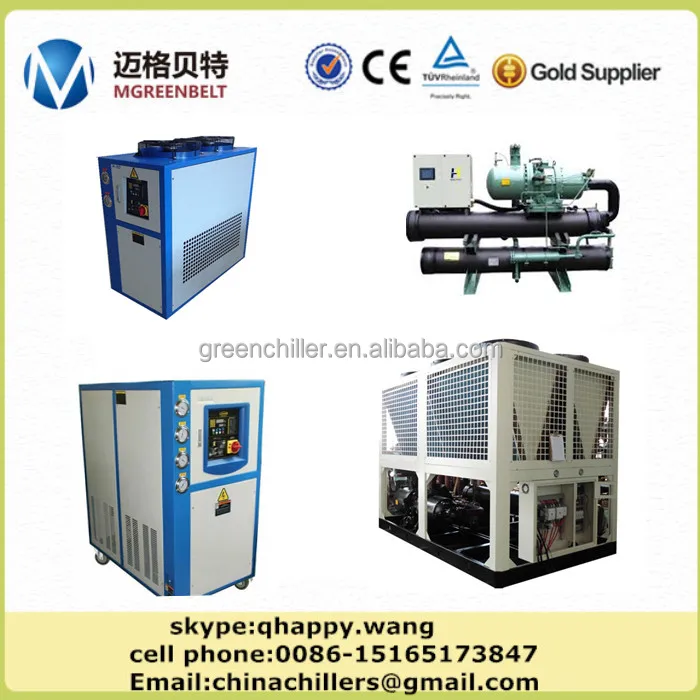

4) Different Models For Water Chiller(air cooled scroll water chiller, water cooled scroll water chiller, air cooled screw water chiller, water cooled screw water chiller)

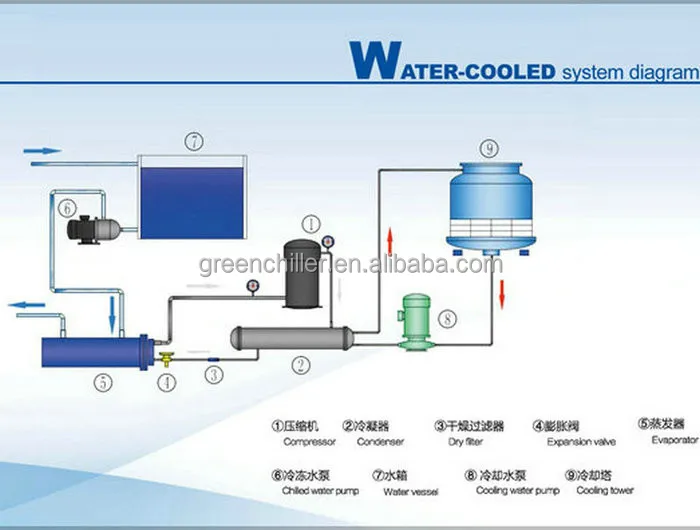

5)Working Process For The Water Chiller
3.Detailed Inroduction For Shipping And Package

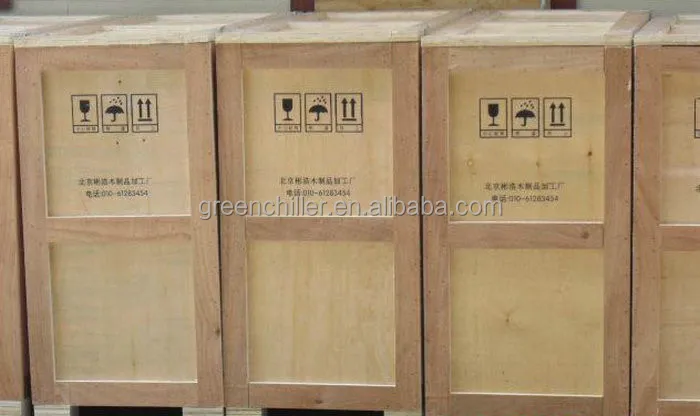

We usually we use the standard exporting wooden case to make sure the safety during delivery
4.Detailed Introduction For Our Services
1) Before confirming the suitable water chiller to you, our technical worker will check your application carefully and then to recommend the best water chiller to you

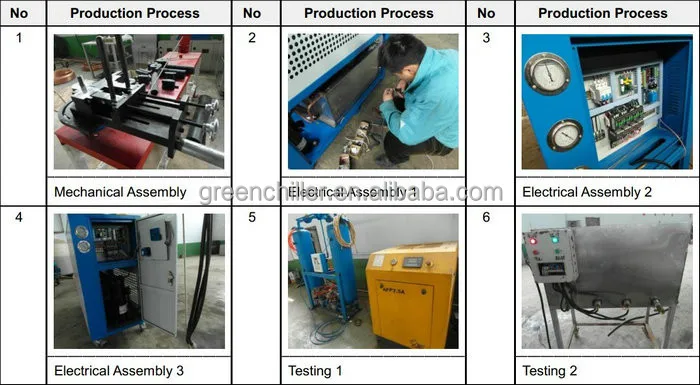

2) Once order confirmed, our engineer check the quality step by step during production to make sure the good quality of the water chiller
3) Before delivery, we always make a lot of trials to make sure the good performance of the water chiller
4) During your usage, once there is any problem, a professional technical team is supporting you and submitting the best solution to you
5.Detailed Introduction For Our Company
Shandong Mgreenbelt Machinery Co.,Ltd, which is specializing in various capacity industrial water chiller with good quality and competitive price for more than 10 years, our main products include air cooled scroll water chiller, water cooled scroll water chiller, air cooled screw water chiller, water cooled screw water chiller as well as low temperature water chiller
1) Q: How to choose a suitable water chiller?
A: Tell me your cooling capacity or your detailed application, we will submit the best solution to you
2) Q:What is the warranty of the water chiller?
A: 14 months once you begin using it
3) Q:How to make sure the good quality of the water chiller?
A: we have enough experience for water chiller for 10 years and a professional technical team is behind you to support you
6.Contact Details For Water Chiller
Look Forward To The Opportunity To Cooperate With You
