Home > Products > Refrigeration Equipment > Water Chiller

Industrial Chiller with Copland Scroll Compressor

FOB Price:

US 3,000-5,000 / Set

Min.Order Quantity:

1 Set/Sets

Supply Ability:

300 Set/Sets per Month

Port:

Qingdao; Shenzhen; Guangzhou

Place of Origin:

Shandong, China (Mainland)

Payment Terms:

L/C,T/T,Western Union,MoneyGram

Brand:

Mgreenbelt

Products Model:

MG-10W(D)

Products Details
Company Profile

Quick Details

Brand Name: Mgreenbelt

Model Number: MG-10W(D)

Place of Origin: Shandong, China (Mainland)

Packaging & Delivery

Packaging Details: Standard export packing
Delivery Detail: 20 working days

Specifications

Industrial chiller with copland scroll compressor
1. CE certificate
2. Cooling capacity: 9.85kW
3. 12-month quality warranty

Industrial Chiller with Copland Scroll Compressor

Product Description

1. Introduction of chiller with copland scroll compressor

Water-cooled chiller adopts the single vapor compression circuit and also have the device of compressor carry protection,pump delivery protection, reverse warning, prevent freezing protection and high and low pressure protection,etc.

This machine has stable performance and long service life.It can cooling down quickly ,temperature control stability and meet customer demand.

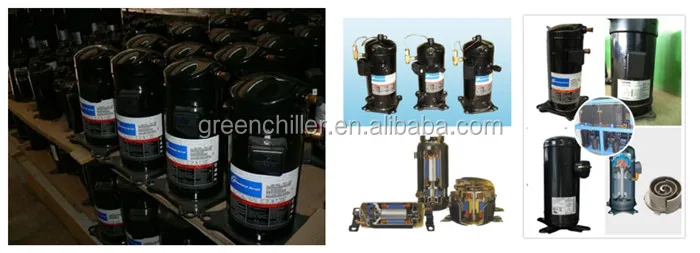

Copland scroll compressor

2. Technical Data Sheet of chiller with copland scroll compressor

Model	Unit	MG-10W(D)
Nominal cooling capacity	kcal/h	25800
Nominal cooling capacity	KW	30
Input power	KW	9.85
Set temp. range	5ºC~35ºC
Power supply	3PH-220/380/415/460V-50/60HZ
Refrigerant	Type	R22/R134a/407c
Refrigerant	Type of control	Thermostatic expansion valve
Compressor	Type	Hermetic scroll
Compressor	Power(kw)	4.55*2
Condenser	Type	shell and tube
	Cooling water flow(m3/h)	6.76
	Inlet and outlet pipe diameter	1-1/2"
Evaporator	Type	Tank with coil/shell and tube
	Chilled fluid flow(m3/h)	5.26
	Volume(L)	200
	Inlet and outlet pipe diameter	1-1/2"
Pump	Power(kw)	0.75
Pump	Lift(m)	20
Dimension	Length(mm)	1170
	Wide(mm)	710
	High(mm)	1200
Weight	kg	430

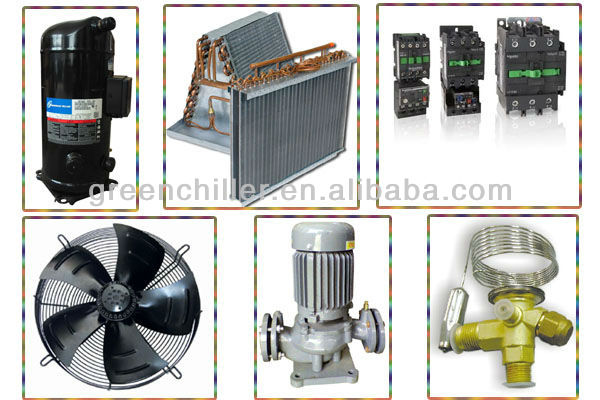

3. Components of water cooled chiller with copland scroll compressor

1). Adopt international advanced scroll compressor;

2). Built-in stainless steel tank/shell and tube, high performance pump;

4. Producing process

5. Working principle of chiller with copland scroll compressor

6. Photo of chiller with copland scroll compressor

7. Applications of industrial chiller with copland scroll compressor

8. Certificates and Consumer visiting

Packaging & Shipping

Our Services

Company Information

FAQ

Established in the year 2003, we, " Mgreenbelt Machinery Co., Ltd," are engaged in manufacturing, exporting and supplying Chillers, Cooling Towers, Heat Exchangers and Components. Our range is appreciated by the clients based in various parts of China and world for its characteristics, such as robust structure, longer service life and high performance. The durable products are manufactured by experienced workers, using graded alloys and qualified electronic components. Further, for clients' covenience, we undertake the designing and turnkey projects for the devices.

At the sound manufacturing facility, we undertake the production of high performance machines. The quality controllers test the range, to ensure that it is in compliance with the degree of prevailing quality standards. Moreover, we also offer after sales services to ensure all the queries to be handled within the shortest time. We would like to grow and improve by anticipating consumers' needs, offering a better solution than competitiors and supporting customers to be confident of getting fast answers of requirement.

We have been successfully in offering machines to projects of Packaged Equipment and System, Automobile Components Producing System, Food Making, Bakery, etc. to clients from domestic, USA, Canada, Australia, Ecuador, Sudan, Russia, South Africa, Dubai, Israel, India, Philippine, Singapore, Vietnam, Thailand and Korea, etc.
