China Manufacturer Water Chiller System/Water Cooled Chiller System

FOB Price:

US 1,100-13,000 / Set

Min.Order Quantity:

1 Set/Sets

Supply Ability:

500 Set/Sets per Month

Port:

Qingdao,Guangzhou,Shanghai

Place of Origin:

Shandong, China (Mainland)

Payment Terms:

L/C,T/T,Western Union,MoneyGram,Paypal

Brand:

MGREENBELT

Products Model:

Water Cooled Chiller System

Products Details
Company Profile

Quick Details

Brand Name: MGREENBELT

Model Number: Water Cooled Chiller System

Place of Origin: Shandong, China (Mainland)

Packaging & Delivery

Packaging Details: Water chiller will be packing in Standard wooden case
Delivery Detail: Within 7 working days after payment

Specifications

Water Cooled Chiller System
1.SANYO/COMPELAND compressor
2.Direct selling,OEM offered
3.Cooling capacity customize
4.CE

China Manufacturer Water Chiller System/Water Cooled Chiller System

Product Description

1.Application

MG-series Water Cooled Chiller System is a new generation of refrigeration equipment, mainly used for the steel, medicine, electronics, chemical industry, food industry and other special industry, in particular for the plastic field, such as : injection molding, extrusion(sheet & profile), blow molding, thermoforming, PET, plastic film, and other industrial field : electroplating (surface treatment), medicine, chemical, hydraulic system, leaser, shoe-making, electronic, print, etc.

2.What you can optional?

1).Power supply:3PH-200V/220V/380V/415V-50HZ/60HZ
2).Refrigerant R22/R/134/407c
3).Set temperature range: From 0 to +50°C
4).Cooling capacity: 1HP-240HP (0.7tons-206tons)
5).Compressor type:Screw type,Scroll type
6).Compressor brand: SANYO, COPELAND, DANFOSS, HANBELL.DAIKIN, HITACHI

3.Technical parameter:

Specification model	Unit	MG-50W(D)
Nominal cooling capacity	kcal/h	134332
Nominal cooling capacity	KW	153.2
Input power	KW	48.5
Set temp. range	0ºC~50ºC
Power supply	3PH-380V-50HZ
Refrigerant	Type	R22/R134a/407c
Refrigerant	Type of control	Thermostatic expansion valve
Compressor	Type	Hermetic scroll
Compressor	Power(kw)	43
Condenser	Type	Shell and tube
	Cooling water flow(m3/h)	33
	Inlet and outlet pipe diameter(inch)	3"
Evaporator	Type	Tank with coil/shell and tube
	Chilled fluid flow(m3/h)	26.3
	Volume(L)	620
	Inlet and outlet pipe diameter(inch)	3"
Pump	Power(kw)	5.5
Pump	Lift(m)	23
Dimension	LWH(mm)	20009801960
Weight	kg	1380
Safety protection	Compressor over temperature,over current,high and low pressure,Phase sequence,phase-missing

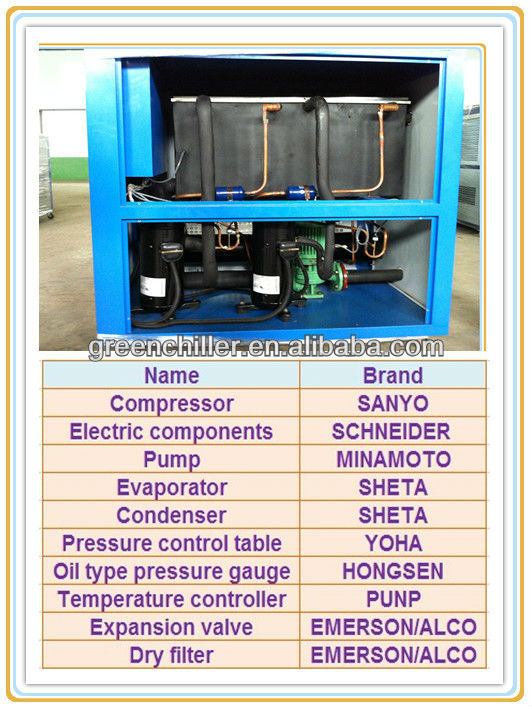

4.Main parts of the Water Cooled Chiller System

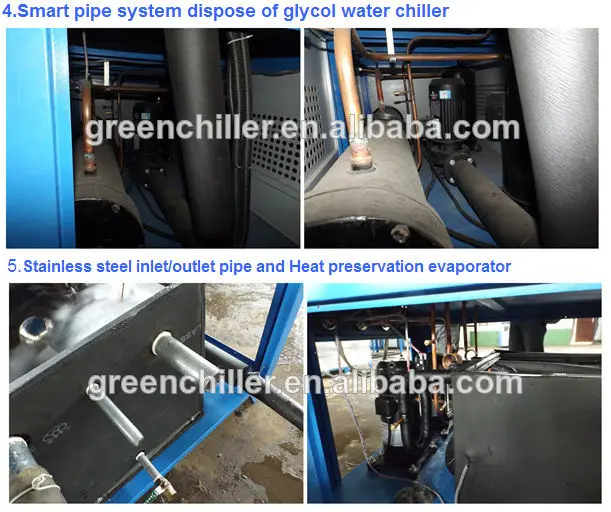

5.More details picture

Our Services

After-sale service:

1. MGreenbelt provide 12 months warranty for the machine. Warranty starts from receipt of the machine or parts.

2. All extra parts for the machine can be purchased with agent price from MGreenbelt.

3. MGreenbelt 24 hours working phone call: +8618615626360, Email/ Skype/ MSN/ Trade manager online to support.

4. Life-long Technical Support and After-sale Service free of charge.

5.Professional technical team and sales person give you regarding troubleshooting procedures via Internet and Phone any time when needed.

6. Free and Professional Training at our Factory under the relaxed condition.

7. Door-to-Door Service if necessary.

Packaging & Shipping

Shipping details

Shipping port:Qingdao,Shenzhen,Shanghai,Guangzhou,Ningbo or as your need

Shipping charge: we can arrang it with CIF price for you, shipping charge will fom our gold cooperate shipping agent in 10 years. And also can arrange ith you own shipping agent.

FAQ

FAQ

1.Can you accept custmize?

Yes, we have R&D department, can supply you a complete solution, you just tell me what you need, then we will send all design ad details.

2.How about afte-service?

We establish a archives for every customer,give you a return visit timing, engineers one to one talk with you for technical support.

3.How about the delivery?

Sorry, we don't have stock of the machine because order busy, but normall parts in stock, so we have to 10-20 days for prepare, it in order to Grace's final confim with you.

If you have more wondering, please dn't hesitated to contact with our gold sales Ms Grace zhang:

Cell:008618615626360(Call,WhatsApp, viber)

Skype:mb.gracezhang

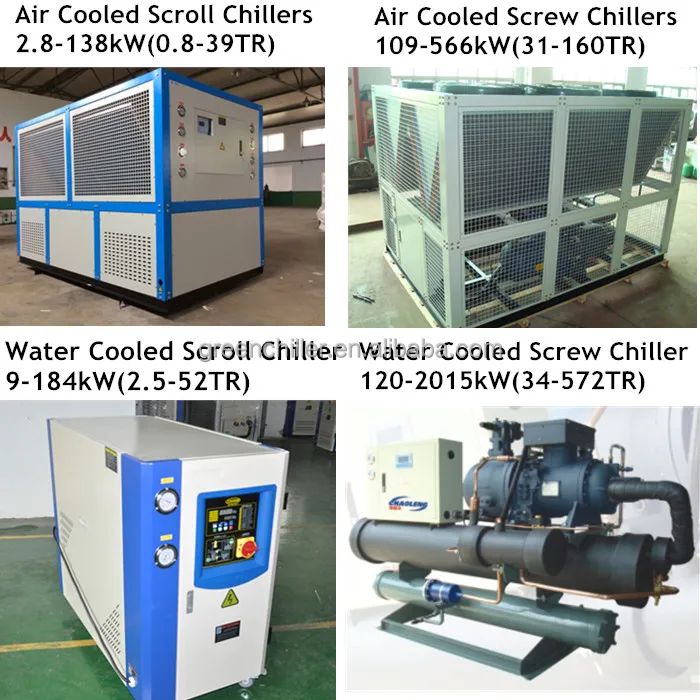

What we have?

Top sales Recomment product

Air/water cooled scroll water chiller

Air/water cooled screw water chillerGlycol

Low temperature water chiller( Glycol chiller/glycol/wine chiller ),instant wine chiller, Electric wine chiller, water chilling machine/water cooling machine/water cooling chiller.

Established in the year 2003, we, " Mgreenbelt Machinery Co., Ltd," are engaged in manufacturing, exporting and supplying Chillers, Cooling Towers, Heat Exchangers and Components. Our range is appreciated by the clients based in various parts of China and world for its characteristics, such as robust structure, longer service life and high performance. The durable products are manufactured by experienced workers, using graded alloys and qualified electronic components. Further, for clients' covenience, we undertake the designing and turnkey projects for the devices.

At the sound manufacturing facility, we undertake the production of high performance machines. The quality controllers test the range, to ensure that it is in compliance with the degree of prevailing quality standards. Moreover, we also offer after sales services to ensure all the queries to be handled within the shortest time. We would like to grow and improve by anticipating consumers' needs, offering a better solution than competitiors and supporting customers to be confident of getting fast answers of requirement.

We have been successfully in offering machines to projects of Packaged Equipment and System, Automobile Components Producing System, Food Making, Bakery, etc. to clients from domestic, USA, Canada, Australia, Ecuador, Sudan, Russia, South Africa, Dubai, Israel, India, Philippine, Singapore, Vietnam, Thailand and Korea, etc.
