China Supplier Hot Selling High Quality Spring Check Valve

FOB Price:

US 1-50 / Set

Min.Order Quantity:

1 Set/Sets

Supply Ability:

3000 Set/Sets per Week

Port:

Changsha

Place of Origin:

Zhejiang, China (Mainland)

Payment Terms:

L/C,T/T,Western Union,Paypal

Brand:

WINNER

Products Model:

SW-B152

Products Details
Company Profile

Quick Details

Brand Name: WINNER

Model Number: SW-B152

Place of Origin: Zhejiang, China (Mainland)

Packaging & Delivery

Packaging Details: 57 units per carton, 0.05CBM/CTN
Delivery Detail: --

Specifications

China Supplier Hot Selling High Quality Spring Check Valve

*Product Name*	Spring Check Valve
*Valve body:*	*Forged brass*
*Valve seat:*	*Brass*
*Valve stem:*	*Chrome-plated brass*
*Actuator shell:*	*Aluminum*
*Actuator bottom case:*	*Stainless steel*
*Working voltage:*	*24VAC, 110/120VAC, 230VAC; 50/60Hz*
*On/off time:*	*13-18s*
*Spring return time:*	*4-5s*
*Motor power:*	*6.5W, 7 VA*
*OEM & ODM*	*Acceptable*
*Thread Type*	*BSP NPT*

Specification

Model No.	Size	Description	Kv(Cv)	Closing pressure	Weight (g)
SW-B152	15MM (1/2’’)	2 way valve	2.2(2.5)	0.18MPa (25PSI)	700
SW-B202	20MM (3/4’’)		3.0(3.5)	0.16MPa (23PSI)	850
SW-B252	25MM (1’’)		6.9(8.0)	0.14MPa (20PSI)	1000
SW-B153	15MM (1/2’’)	3 way valve	2.6(3.0)	0.18MPa (25PSI)	750
SW-B203	20MM (3/4’’)		3.4(4.0)	0.16MPa (23PSI)	900
SW-B253	25MM (1’’)		6.5(7.5)	0.14MPa (20PSI)	1050
SW-B152H	15MM (1/2’’)	High C.P 2 way valve	1.7(2.0)	0.45MPa (65PSI)	700
SW-B202H	20MM (3/4’’)		2.2(2.5)	0.35MPa (50PSI)	850
SW-B252H	25MM (1’’)		3.0(3.5)	0.20MPa (30PSI)	1000
SW-B153H	15MM (1/2’’)	High C.P 3 way valve	1.7(2.0)	0.45MPa (65PSI)	750
SW-B203H	20MM (3/4’’)		2.6(3.0)	0.35MPa (50PSI)	900
SW-B253H	25MM (1’’)		3.4(4.0)	0.20MPa (30PSI)	1050

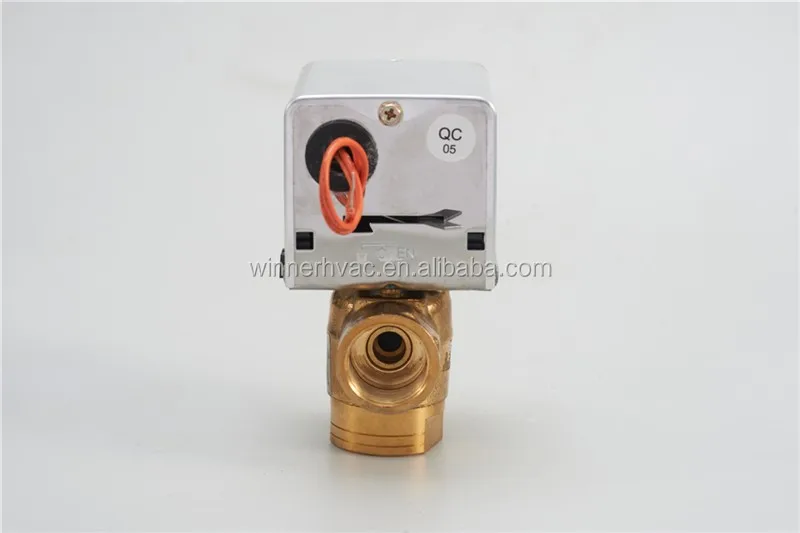

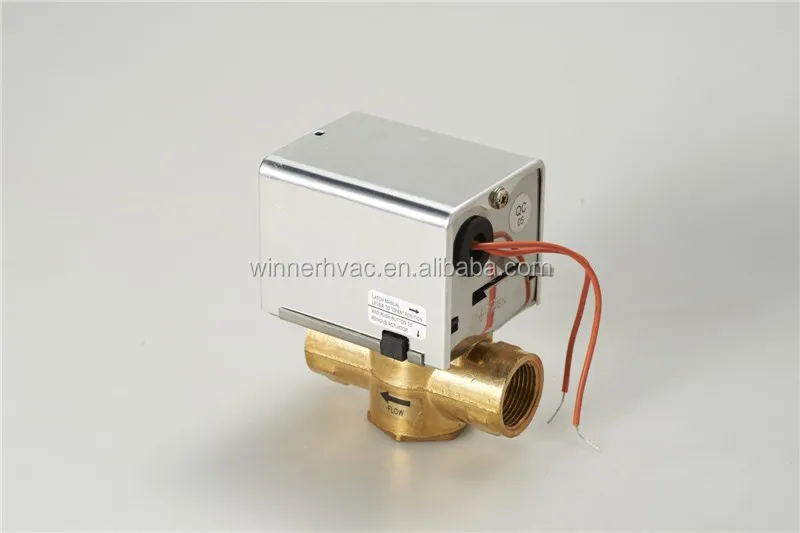

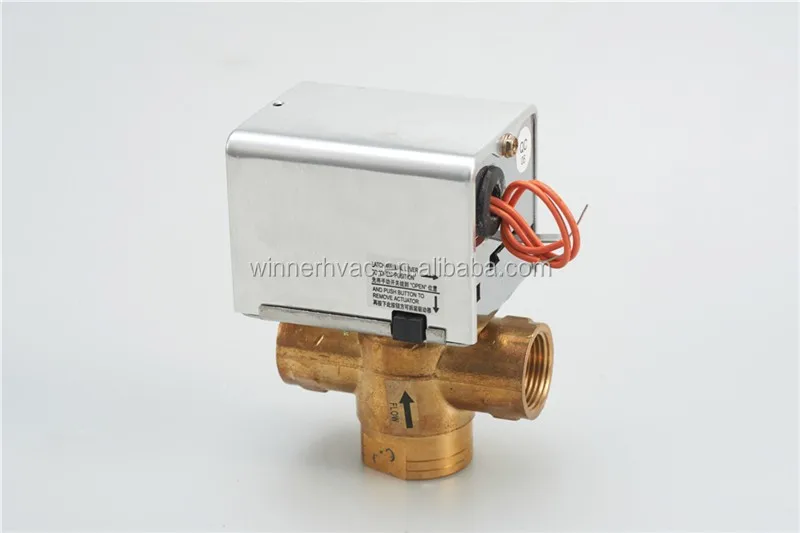

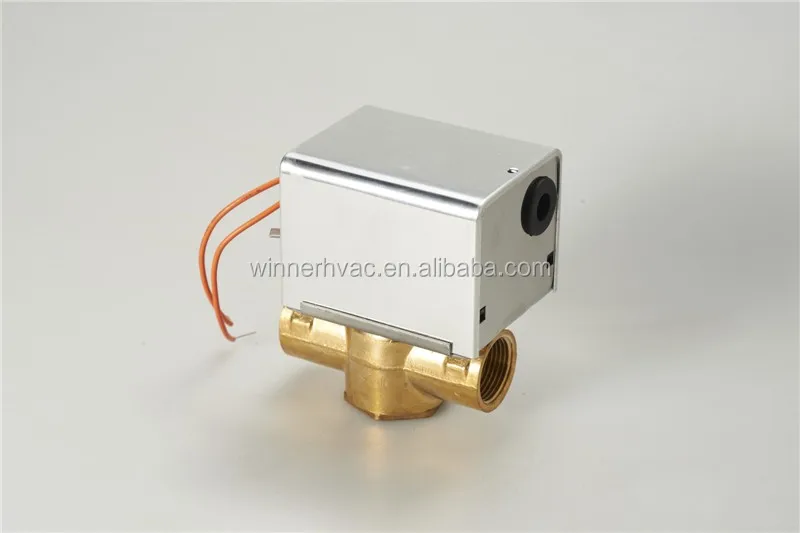

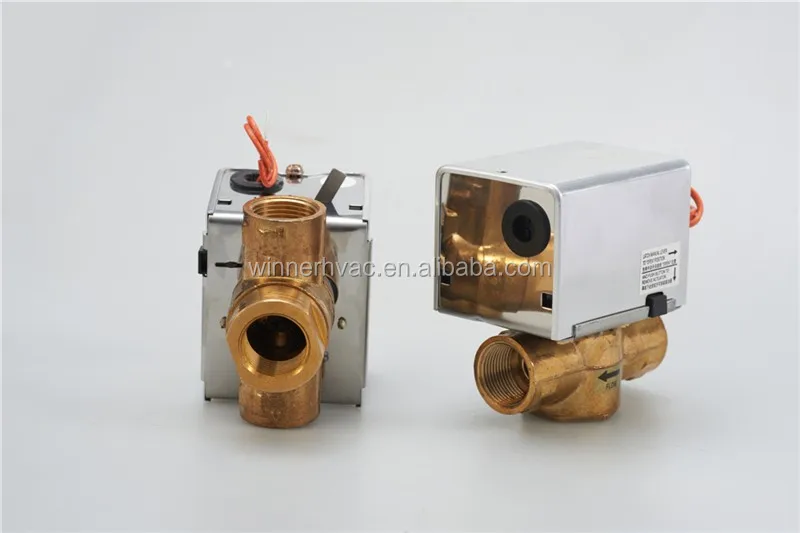

Pictures Of Product

More Products For You To Choose

Certificate of Products

Production line of Product

Exhibition and Customer

Our Services

Before service:

1.We have full stock and can deliver within short time.
2.OEM and ODM order are accepted, Any kind of logo printing or design are available.
3.Good Quality + Factory Price + Quick Response + Reliable Service, is what we are trying best to offer you.
4.All of our products are produced by our professional workman and we have our high-work-effect foreign trade team, you can totally believe our service.

After you choose:

1. We will count cheapest shipping cost and make invoice to you at once.
2. Check quality again, then send out to you at 1-2 working day after your payment
3. Email you the tracking no., and help to chase the parcels until it arrive you.

After-sale service:

1.We are very glad that customers give us some suggestion for price and products.
2.If you have any question,please contact us freely by E-mail or Telephone.

Our Company View

FAQ

Q. what is your payment term?

A: T/T 30% down payment, balance to be paid before shipment. or L/C.

Q: How do you control the products’ quality?

A: 1. High quality mold.
2. Raw materials control.
3. Production process quality control.
4. Final inspection.
5. Water testing (no leaking).

Q:Could I use my own logo or design on goods?

A:Yes.Customized logo and design on production are available.

Q: Can I get samples from your factory?

A: Yes, Samples can be provided.

Q: If products have some quality problem, how would you deal with?

A: We will responsible for all the quality problems.

Contact Information

Winner electronic was established in 2005 in Wuhan ,Hubei province, China. Winner electronic is the first company in China to develop, produce and sell small automotive electric ball valve and put the ball valve for central air condition system. After first generation, second generation, third generation improvement, our products are now widely used for HVAC system, hospital equipment system and environmental control system. All our valves are our patent products and they are CE, ROSH certified. Winner has developed to be the most professional which has the longest experience in electronic ball valve manufacturer. In 2010, winner set up its branch in Changsha ,Hunan Province to match up the fast developing market.

Our company is a professional supplier of motorized ball valves, automatic control valves and thermostats, which are widely used in HVAC equipment, water treatment systems and some industrial equipments. With high-quality products, excellent services and a good reputation, we have won great support from customers around the world. Thus, our company scale has expanded. We also offer all kinds of OEM/ODM services. At present, we export products to America, Europe, the Middle East and other countries in Asia. We have established long-term stable and good business relationships with many manufacturers and wholesalers around the world. Currently, we are looking forward to even greater cooperation with overseas customers based on mutual benefits. Please feel free to contact us for more details.
