three-way DN 15 motorized valve

three-way DN 15 motorized valve

FOB Price:
US 15-20 / Piece
Min.Order Quantity:
1 Piece/Pieces
Supply Ability:
3000 Piece/Pieces per Week
Port:
Changsha
Place of Origin:
Hunan, China (Mainland)
Payment Terms:
L/C,T/T,Western Union
Brand:
WINNER
Products Model:
WRA-4203
Share:
  • Products Details
  • Company Profile

Quick Details

  • Brand Name: WINNER

    Model Number: WRA-4203

    Place of Origin: Hunan, China (Mainland)

Packaging & Delivery

  • Packaging Details: carton,54 units per carton, size:0.05CBM/CTN
  • Delivery Detail: 3 days DHL/UPS/FEDEX

Specifications

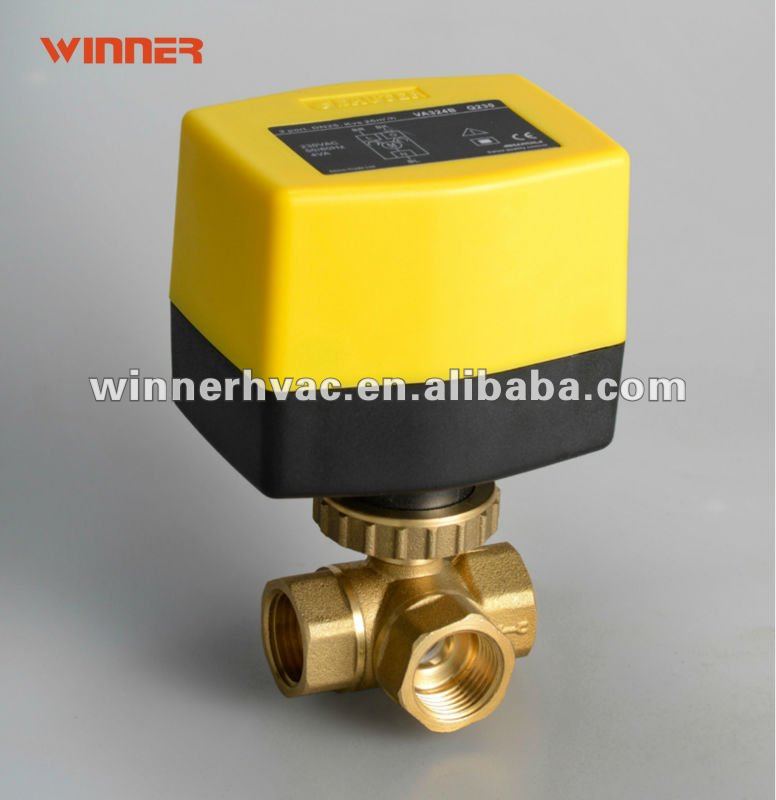

three-way motorized valve
1.Open/close: 4S
2.1/2'', 3/4'',1''
3.Voltage: DC3V
4.Pressure: 1800V, 2S

Contact: Mrs Fiona

Mobile : + 86 18684652254

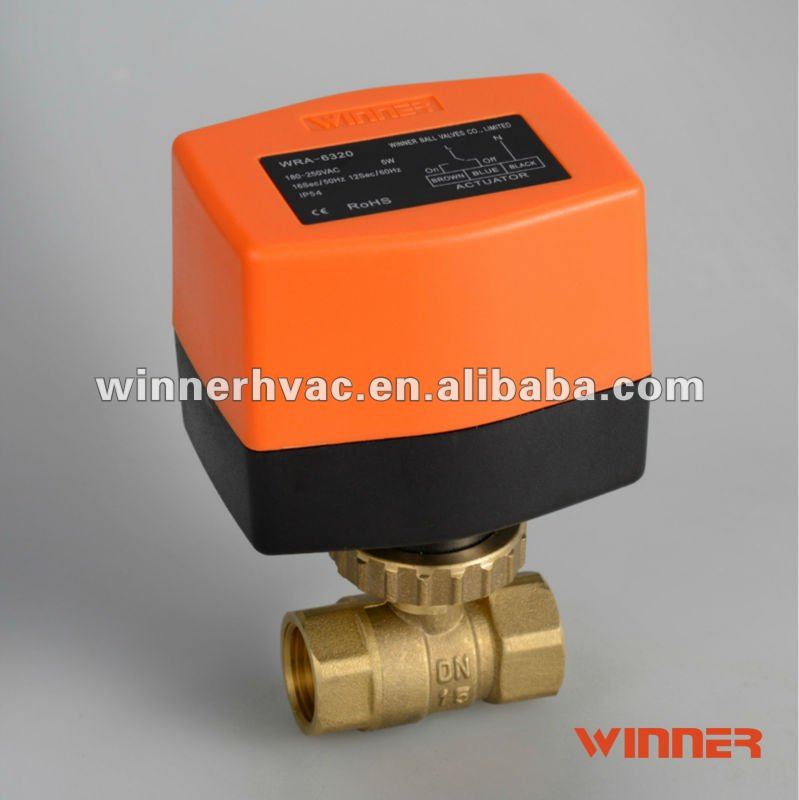

DC motorized ball valve features excellent capacity of water stoppage, large water flow rate, zero dirt block, low torque, nice design and easy installation.



Material:

  1. Valve Body:  Hpb59-1 (Gilded with Nickle) ;
  2. Valve Seal:  Stem:  EPDM with double O-ring ;
  3. Ball:  PTFE+EPDM with double O-ring;
  4. Actuator enclosure:  PC+10GF;
  5. Actuator revolving shaft:  POM;





Specifications:

  • Actuator motor: DC motor
  • Power supply: DC3V
  • Working current: <300mA
  • Output torque: 2N.m
  •  Power consumption:  <2
  • Control way: 3 point or on/off
  • Pipe connection: G/BSP
  • Media temperature range: 2°C~90°C
  • Ambient temperature: -5°C~60°C
  • Running time: 4S
  • Ambient humidity: <90%
  • Pressure grade:  PN20
  • Protect rank:  IP54

 Application:
HVAC system

 heating system

Water treatment system

Industrial equipments



Products Chracteristic

1, Smart shape, perform reliably, brass gear, PPO parts, large output

torque, long product life.

2, Electrical limit and machinery limit design, accurate position,

avoid gear and switch.

3, Multi-assembling, easy to install.

4, Float ball structure, no leakage, especially suitable for heavy

pollution conditions.

5, Good substitution for solenoid valve.

6, High protection class, can be worked in moistconditions. IP54
