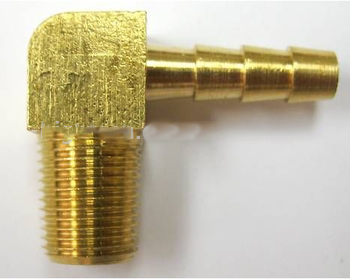

Elbow Brass Barb Fitting 3/16" Hose x 1/8 NPT Fuel Boat

FOB Price:

US 0.4-1.5 / Piece

Min.Order Quantity:

500 Piece/Pieces

Supply Ability:

100000 Piece/Pieces per Month

Port:

shanghai/ningbo

Place of Origin:

Zhejiang, China (Mainland)

Payment Terms:

L/C,T/T,Western Union,MoneyGram,paypal

Brand:

HI-TEK

Products Model:

BL0124

Products Details
Company Profile

Quick Details

Brand Name: HI-TEK

Model Number: BL0124

Place of Origin: Zhejiang, China (Mainland)

Packaging & Delivery

Packaging Details: poly bag , inner box , export standard carton
Delivery Detail: 10-25days according to quantity

Specifications

Product Description

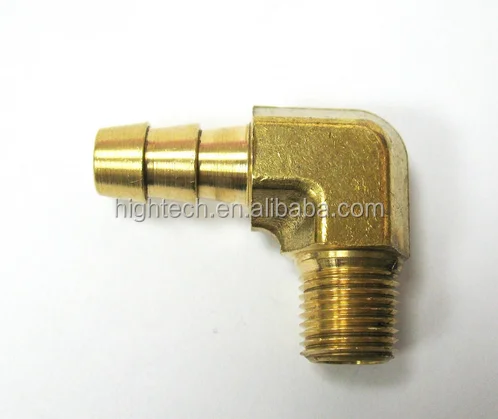

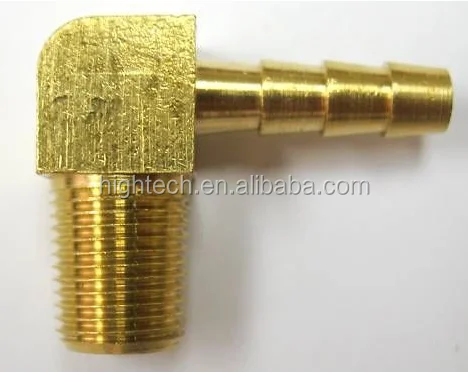

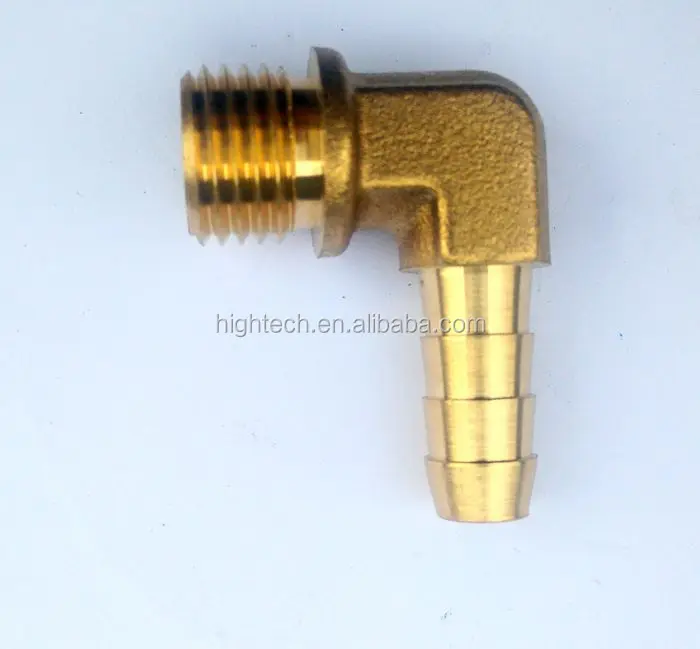

Brass Hose Barb Fitting
Male Elbow

Material: Brass C36000, C37700

Characteristic
Be applied to low pressure water transport;
Could be used repeatedly when connecting with flexible hose;

Working Pressure
150 PSI maximum

Assembly steps:
1. Straight-across-cu the flexible hose to the required length;
2. Put beam set to the flexible hose;
3. Spray some lubricant on the inside wall of the flexible hose and push it into the joint until touching the hexangular;
4. Move the beam set to the certain position and fix it tightly by spanner or screw driver.

Part No.	Pipe Thread T	Tube Size D1	L1	L2	L3	HEX	I.D
BLH-0101	1/8	1/8	18	21.5	14	9.5	2
BLH-1015	1/8	3/16	18	21.5	14.5	9.5	3
BLH-0102	1/8	1/4	18	27	20	9.5	4
BLH-1025	1/8	5/16	18	27	20	9.5	5.5
BLH-0103	1/8	3/8	18	27	19	9.5	5.5
BLH-0220	1/4	1/4	23.5	30.5	20	11.5	4
BLH-2025	1/4	5/16	23.5	30.5	20	11.5	5.5
BLH-0230	1/4	3/8	23.5	31	20	11.5	7
BLH-0204	1/4	1/2	23	30.5	20	13	8
BLH-0302	3/8	1/4	23.5	30	20	11	4
BLH-3025	3/8	5/16	23.5	30	20	11	5.5
BLH-0303	3/8	3/8	23.5	30	20	11	7
BLH-0304	3/8	1/2	28	35	20	15	9.5
BLH-0402	1/2	1/4	31	33.5	20	15	4
BLH-4025	1/2	5/16	31	33.5	20	15	5.5
BLH-0403	1/2	3/8	31	33.5	20	15	7
BLH-0404	1/2	1/2	30	33.5	20	15	9.5
