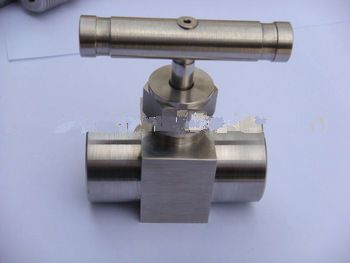

stainless steel 6000 psi 1/4 female NPT high pressure needle valve gas needle valve

Price:

US 15.46-19.15 / Unit

Min.Order Quantity:

10 Unit/Units

Port:

Place of Origin:

Zhejiang, China (Mainland)

Payment Terms:

L/C,T/T

Brand:

HI-TEK

Products Model:

Products Details
Company Profile

Quick Details

Brand Name: HI-TEK

Model Number: --

Place of Origin: Zhejiang, China (Mainland)

Packaging & Delivery

Packaging Details: export packing(ply-wooden case)
Delivery Detail: within 10days

Specifications

Product Description

1.Maximum working pressure: 6000 psi (413bar)

2.One-piece forged body

3.Working temperature: -65 °Fto 1200°F(-53°c to 648°c)

4.Connection sizes: 1/8 to 2 in.

5.Body materials: 316, 316L, 304, 321, F91, Duplex 2205, Duplex 2507/A182, alloy 600/B156 and brass CAD/B283.

6. Orifice size: from 4 mm to 20 mm

Feature

1. Two stem design: The upper stem has hardened threads, the lower stem has hardened smooth surface.

2. Upper stem thread lubricant is isolated from system media.

3. The lower stem performs vertical linear movement instead of screwing movement, significantly reducing the friction area.

4. The nonrotating lower stem eliminates galling between the seat and tip.

5. Stem back seating seals in the fully open position.

6. Optional panel mounting is available.

7. Double lock-pins enable steady and durable fastening of the handle.

8. Optional handle colors are available.

9. 100% factory test. Every valve is tested with nitrogen for leak tight performance at its maximum working pressure.

Basic Information

Business Type: Manufacturer
Main Products: instrument ball valve,pressure gauge syphon,ball valve,tube fitting,valve manifold
Location: Zhejiang, China (Mainland) Asia
