Brand Name: HX
Model Number: FP-5~FP-16
Place of Origin: Tianjin, China (Mainland)
Ceiling Concealed Fan Coil Unit
Brief Introduction
The fan coil units is the part of an HVAC system found in residential, commercial, and industrial buildings. Typically a fan coil unit is not connected to ductwork, and is used to control the temperature in the space where it is installed, or serve multiple spaces. It is controlled either by a manual on/off switch or by thermostat.

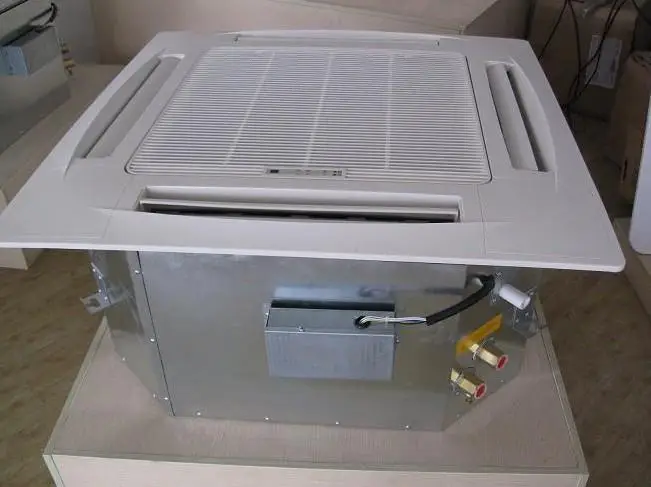

Cassette Type Fan Coil Unit Components
Ceiling Concealed Fan Coil Unit
Features
1.High efficiency.Coiler is made of high quality seamless copper tube and aluminum sine wave type radiating fin.they have the best effect of heat transfer.
2.Beautiful shape, space-saving.It has smooth line, graceful color ,can be hidden in the ceiling.Perfectly combine with space decoration.
3.Safe ,reliable,and long-life. A.Every surface air cooler has through twice 2.4Mpa Pressure Testing.100% inspection.B.Motor is adopted three-speed capacitance running motor.fitted with imported high precision low noise rolling bearing,don’t need luricating oil when use it.Motor reel through special processing , never rust. So service life can reach 42000 hours.C. Condensation basin is weldless,is dealt with plastic spraying to prevent it from rust.The surface paste insulate board.So our fan coil unit never happen any hydrops,leakage,condensation ect.bad phenomenon. D. We use closed-cell fire-resistance Polyurethane insulation board to prevent fire accident comes from human factors.
4.Surface air cooler has high heating efficiency,and power saving features.A.We choose high quality,seamless vacuum annealed soft copper tube and good aluminum fin to make it by heat exchanger processing equipment imported from America,We use America automatic welding machine to insure the welding quality.let coil won’t leak under 2.4Pa pressure.B.The unit is equipped with three-speed switch,can adjust the air volume according to your need.achieved the purpose of adjusting heating and cooling.So it will save more electricity.
5.Large air flow,low noise.The fan is adopted super-wide galvanized steel volute and galvanized steel leafy centrifugal rotor.All fan have through static balance test,to insure low noise and small vibration.
Model |
FP-5 |
FP-6.3 |
FP-8 |
FP-10 |
FP-12.5 |
FP-16 |
|||
Feature |
Cold |
High |
3000 |
3700 |
4700 |
5756 |
6815 |
8500 |
|
Mid |
2634 |
3249 |
4127 |
5054 |
5970 |
7380 |
|||
Low |
1882 |
2320 |
2947 |
3609 |
4263 |
5978 |
|||
Heat |
High |
5200 |
6250 |
7750 |
9533 |
10900 |
12750 |
||
Mid |
4185 |
5030 |
6238 |
7673 |
8773 |
10585 |
|||
Low |
2748 |
3303 |
4096 |
5038 |
5760 |
7266 |
|||
Water kg/h |
520 |
590 |
790 |
920 |
1220 |
1650 |
|||
Water Resistance kPa |
7.2 |
8.9 |
27.2 |
39.2 |
34.4 |
35.6 |
|||
Fan |
Type |
Double metal leafy centrifugal fan |
|||||||
Qty |
1 |
1 |
2 |
2 |
3 |
4 |
|||
Air flow |
High |
540 |
680 |
880 |
1100 |
1310 |
1600 |
||
|
Mid |
380 |
507 |
656 |
848 |
990 |
1400 |
||
|
Low |
320 |
363 |
470 |
542 |
710 |
1000 |
||
Motor |
Voltage |
50Hz 220V |
|||||||
Input Power W |
<50 |
<70 |
<95 |
<110 |
<136 |
<160 |
|||
Motor quantity |
1 |
2 |
|||||||
Voltage |
DN20 copper thread outside |
||||||||
Input Power W |
DN20 steel pipe thread outside |
||||||||
Voltage |
<30 |
<36 |
<42 |
<43.8 |
<44 |
<47 |
