HVAC system rectangular VAV air flow control damper

FOB Price:

US 80-500 / Set

Min.Order Quantity:

1 Set/Sets

Supply Ability:

800 Set/Sets per Month

Port:

Tianjin Port

Place of Origin:

Tianjin, China (Mainland)

Payment Terms:

L/C

Brand:

Huixi

Products Model:

VAV-R

Products Details
Company Profile

Quick Details

Brand Name: Huixi

Model Number: VAV-R

Place of Origin: Tianjin, China (Mainland)

Packaging & Delivery

Packaging Details: generally about 7 days after receiving the deposit.
Delivery Detail: Seaworthy export plywood case

Specifications

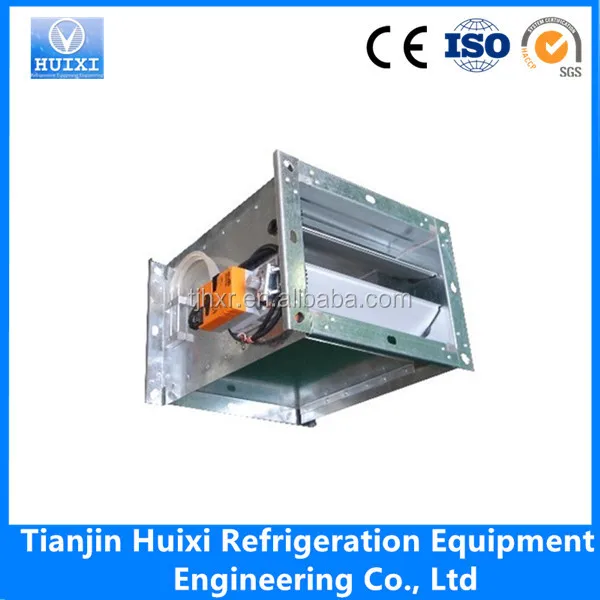

HVAC system rectangular VAV air flow control damper

Product Description

Introduction

The variable air vavle is used for air volume control in variable air volume system. This flow valve is consist of mechanical parts (multi-blade valve plate, shell and differential pressure sensor) and electronic control unit. They have been equipped before they delivery and complete the hose connection and wiring. The airflow control adopts closed loop control, need external power supply. The electronic control unit for Belimo, products. Each set equipment will be set to the required air volume, and through the performance test. Flange on both ends of the equipment are used to connect duct.

Product Specification

Material	Galvanized steel sheet
Structure	· Rectangular, fastness frame · Duct flange on both side ·Split blade, rotate through the internal gear on both sides. ·Bearing position with O type ring seal.
Cabinet	·Cabinet, shaft and fittings are made of galvanized steel sheet. ·Valve plates and piezometric tube with aluminum · Gear with antistatic plastic (ABS), heat resistance and 50 ℃

Material

Galvanized steel sheet

Structure

· Rectangular, fastness frame

· Duct flange on both side

·Split blade, rotate through the internal gear on both sides.

·Bearing position with O type ring seal.

Cabinet

·Cabinet, shaft and fittings are made of galvanized steel sheet.

·Valve plates and piezometric tube with aluminum

· Gear with antistatic plastic (ABS), heat resistance and 50 ℃

Product Feature

Electric air volume control;
suit for supply air and exhaust air;
Air volume range:5:1, pressure differential range:20~1000Pa;
Air volume control precision is high, the need to ensure that air duct layout to meet the best flow characteristics;
Air volume control precision is high, the need to ensure that air duct layout to meet the best flow characteristics;
Working temperature:0℃~50℃, can be completely shut down completely.

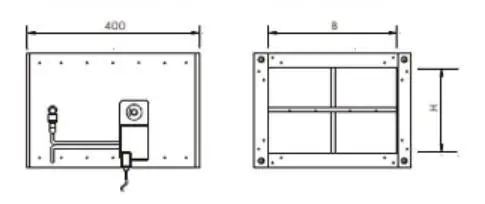

Drawing Picture

Operation Parameter/Structure Size(mm)

*BH(mm)**	Airflow(m³/h)	Pressure Loss(Pa)	*BH(mm)**	Airflow(m³/h)	*BH(mm)**	Airflow(m³/h)	Pressure Loss(Pa)
200*100	162-774	20-40(10-185)	700*300	30-35(10-185)	1000*500	3672-18360	20-40(10-185)
300*100	234-1152		800*300		600*600	2628-13140
400*100	306-1530		900*300		700*600	3060-15300
500*100	378-1926		1000*300		800*600	3492-17460
600*100	468-2340		400*400		900*600	3960-19800
200*200	306-1494		500*400		1000*600	4392-21960
300*200	450-2232		600*400		700*700	3564-17820
400*200	594-2970		700*400		800*700	4104-20520
500*200	738-3726		800*400		900*700	4680-23400
600*200	900-4500		900*400		1000*700	5112-25560
700*200	1044-5220		1000*400		800*800	4608-23040
800*200	1188-5940		500*500		900*800	5112-25560
300*300	666-3312	20-35(10-185)	600*500	20-40(10-185)	1000*800	5832-29160
400*300	882-4428		700*500		900*900	5904-29520
500*300	1098-5526		800*500		1000*900	6552-32760
600*300	1332-6660		900*500		1000*1000	7272-36360
