How to Install In Floor Heat Mat under the Tile

FOB Price:

US 9-13.5 / Square Meter

Min.Order Quantity:

200 Square

Supply Ability:

15000 Square per Meter/Square

Port:

shanghai, shenzhen, or guangzhou

Place of Origin:

Sichuan, China (Mainland)

Payment Terms:

L/C,T/T

Brand:

ANLT

Products Model:

ALTFV2R-Heating Mat

Products Details
Company Profile

Quick Details

Brand Name: ANLT

Model Number: ALTFV2R-Heating Mat

Place of Origin: Sichuan, China (Mainland)

Packaging & Delivery

Packaging Details: How to Install In Floor Heat Mat under the Tile package: white box with user manual
Delivery Detail: Shipped in 10 days after payment

Specifications

Product Description

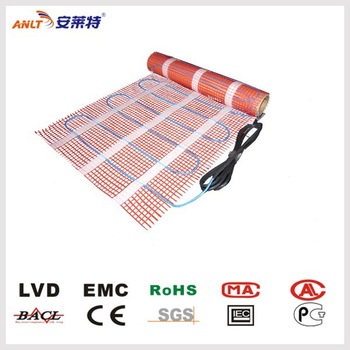

How to Install In Floor Heat Mat under the Tile

There are various types of heating including natural or propane gas and oil, but electric heat, though not always the most efficient cost-wise (depending on your electricity rates), is probably the most common - mainly because it is readily available in most areas.

Cost Effective -- Compared to other heating systems, the investment costs for electric underfloor heating are extremely low. Littl maintainance cost.

Convenience -- Easy to fix by adhering to the floor and design to install at the site.

All-in-one -- Complete All-in-one with the mat (fiber-glass mesh) and cable to facilitate convenience in the plastering finish.

Flexibility -- possible to install flexibly in any shape at any place.

Approved with CE, RoHS and PCT certificate.

Installation -- When the mat is unfolded, the cable is attached at certain& intervals and it can be automatically installed.

Applied for dry and wet locations.

Emits zero Electromagnetic fields.

ANLT heating mat is NOT necessary to install wire mesh separately.

ANLT heating mat can shorten the installation time thanks to simple installation.

ANLT heating mat can be installed in a range of spaces.

Technical Data
Power lead wire	2m soft copper with ground
Heating element	copper alloy, double core, shielded
Conductor insulation	Teflon (FEP) applicable from -85℃ to 205℃
Outer jacket insulation	PVC applicable from 25℃ to 105℃
Cable diameter	3.5 to 4.0 mm
Power supply	110V, 120V, 220V, 230V or 240V
Power Unit	100watts, 150watts or 160watts per square meter
Linear Power Rating	12watts per linear meter
Heating mat net	red or white fiber-glass mesh with white self-adhesive tape
Individual package	white box w/o handle; white box w/handle for easy carrying can be customized

installation

Calculate the area of the floor to be heated. This is the total floor area minus any permanent fixtures and fittings such a regrigerators, cabinets, tubs, vanity units, ect, as the mat MUST NOT be installed under them.

Please DO NOT cut, damage or shorten the heating cable!!!!!! Only cut and turn the fiber-glass mesh.

Please DO NOT cross the sensor wire over the heating cable or cold lead wire!!!!!!

Please DO NOT make the heating cables cross or touch!!!!!!

All electrical connections must be performed by a fully qualified and certified electrician!!!

Floor material requirements for installing the ANLT Floor Radiant Heating system

Application Field

Certifications

Contact details

ANLT Product Categories

Electric Floor Heating Mat Electric Floor Heating Cable Digital Thermostat

At ANLT we anticipate your needs and will provide the best products and services.

Located in the Hi-tech Development Zone, Xindu District, Chengdu, ANLT Cable Manufacturing Co., Ltd is a hi-tech enterprise integrating in research and development, manufacturing and sales of heating wire, Temperature Controller and Electric Products. With about 10 years' experience in cable product manufacturing, it boasts of rich powerful technical strength and highly efficient operation and management experiences in the industry and has widely accepted and supported by partners and customers.

The company has introduced a whole set of advanced cable manufacturing equipment and technologies from the Europe abd researches, develops and improves the product structure and manufacturing process independently in combination with actual condition of China. Moreover, it has set up a whole set of highly efficient management system, a strict and comprehensive system combining supply chain, manufacturing and inspection. It has been certified by ISO9001:2000 and owns a complete series of inspection equipment and system inspection procedure. ANLT produces its products in strict accordance with IEC800 standard. Its diversified products have passed the certification by TICW, U.S. BACL Laboratory and Swiss ROHS, it gains the quality insurance from China Pacific Insurance Co.,Ltd.

Adhering to the quality guideline of "Offer the Best Quality, Pursue for Excellence, Strive for Perfection" and business concept of "Honesty as Basis, Technology Prevails and Services Foremost", it offers top ranking products and services to customers for joint progress and mutual brilliance!
