silicone rubber jacket floor heating system

FOB Price:

US 0.1-10 / Meter

Min.Order Quantity:

5000 Meter/Meters

Supply Ability:

1000000 Meter/Meters per Month

Port:

shanghai/shenzhen/Guangzhou

Place of Origin:

Sichuan, China (Mainland)

Payment Terms:

L/C,D/A,D/P,T/T,Western Union,MoneyGram,paypal

Brand:

anlt

Products Model:

altgv1r

Products Details
Company Profile

Quick Details

Brand Name: anlt

Model Number: altgv1r

Place of Origin: Sichuan, China (Mainland)

Packaging & Delivery

Packaging Details: display box/carton.
Delivery Detail: within 20 days after order confirmed,

Specifications

silicone rubber jacket underfloor heating system

Feature:

Single Conductor / Double Conductor heating cable:

1, materials: Tinned Copper,

2, number of core: 1 for single conductor, 2 for double conductor

3, screen: Double layers for single conductor (copper coil shielding + aluminum foil shielding)

single layer for double conductors (copper coil shielding)

4, sheath: high-termperature-resistent PVC or high-temperature-resistent silicon rubber

5, power range: 300w-3000w,

6,rated voltage: 220v, 230v

7, Power(w/m):18w, 20w

The basic specification for both single conductor and double conductor as below:

specification	Nominal Resistance (ohm)	Length (m/pcs)	Total power (w/pcs)	specification	Nominal Resistance (ohm)	Length (m/pcs)	Total power (w/pcs)
single-conductor	161.33	16.7	300	double conductor	161.33	16.7	300
	121	22.2	400		121	22.2	400
	96.8	27.8	500		96.8	27.8	500
	80.67	33.3	600		80.67	33.3	600
	69.14	38.9	700		69.14	38.9	700
	56.94	47.2	850		56.94	47.2	850
	48.4	55.6	1000		48.4	55.6	1000
	38.41	70	1260		38.41	70	1260
	35.59	75.66	1360		35.59	75.66	1360
	30.25	88.9	1600		30.25	88.9	1600
	27.5	97.8	1760		27.5	97.8	1760
	24.2	111.1	2000		24.2	111.1	2000
	22	122.2	2200		22	122.2	2200
	20.17	133.3	2400		20.17	133.3	2400
	18.62	144.4	2600		18.62	144.4	2600
	17.29	155.6	2800		/	/	/
	16.13	166.7	3000		/	/	/

Description:

1,Safety and uniform temperature distribution are guaranteed due to double

shielded with ground for easy installation and programmed thermostats to

conveniently and fast control the temperature and avoid malfunctions.

2,comfortable and health.

Heat the human body from the feet, if the feet are cold,the whole body won’t warm, it is in line with medical principle of traditional chinese medication.

3,Eco-friendly, no emissions, populations or noise occur during it working in line with low-carbon economy,

4,energy-saving,

5,High Durability and No Maintenance. Thanks to the double layer structure, it has

high durability and it is not necessary to manage and maintain the system

separately.

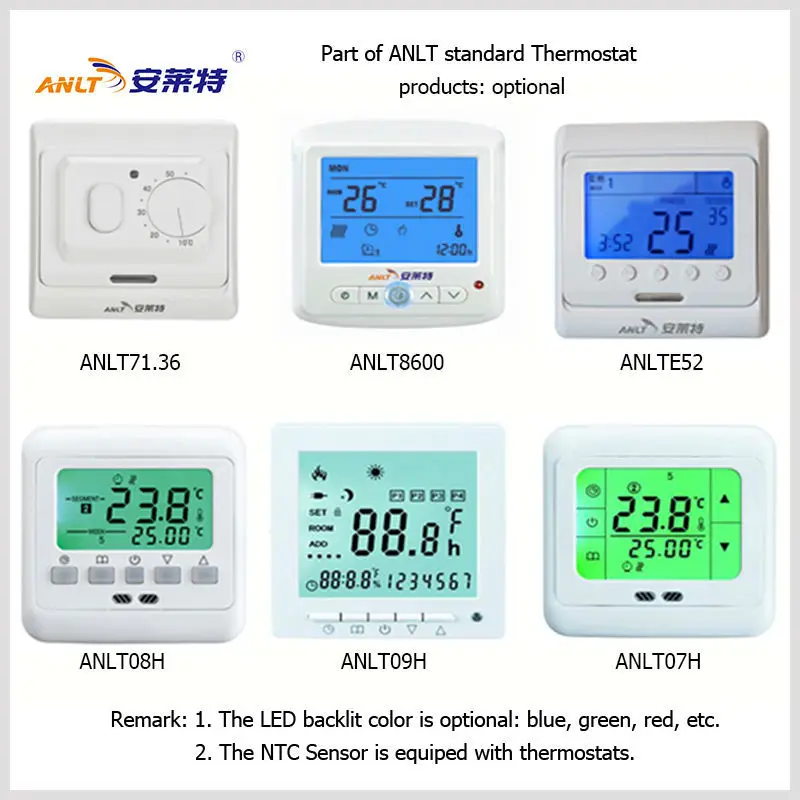

6,intelligent temperature control tha ensures the accurate control based on time and space.
