Introduction&Features

1. Utilized Semi-Hermetic Bitzer Refrigeration Compressors; Good Quality and Reliable Performance;

2. The products feature by their structures of muti semi-hermetic Bitzer Compressors paralleled together to from one integrated  systems. The discharge pipes, suction pipes are one shared by all the compressors for each units. The paralleled system is simpler for intergrated control and cap adjustment;

3. Structure is compacted to save installation space;

4. According to the change of cooling load,the multilevel energy regulation can be realized and also can reduce the equipment running cost.

5. Reduce the influence on operation that caused by machine failure so as to increase the realibity of the unit operation.

6. R404a, R22 units can be provided.

Models Specifications:

JZB     B     F     3 ------- 30     M     B     Y

JZB--LVTE Company Products Code

B--Compressor Type Code: B(1-stage Semi-hermetic); SB(2-stage Semi-hermetic)

F--Cooling Type: F(Air Cooled); S(Water Cooled)

3--Compressor Quantity

30--Compressor Power Input; HP

M--Temperature:M:-5~5°C;L:-20~-15°C;J:-40~-25°C

B--Compressor Brand: Bitzer

Y--Refrigerant, Y-R404A, ---:R22

Model Details:

Air Cooled Compressor Racks R22 Units

Temperature:-5°C~ 5°C (Middle and High Temperature Units)

a. 2 Compressors Racks Models:JZBBF2-20MB---JZBBF2-100MB(20HP-100HP)

b. 3 Compressors Racks Models:JZBBF3-30MB---JZBBF3-150MB(30HP-150HP)

c. 4 Compressors Racks Models:JZBBF4-40MB---JZBBF4-200MB(40HP-200HP)

d. 5 Compressors Racks Models:JZBBF5-50MB---JZBBF4-250MB(50HP-250HP)

Air Cooled 2-Stage Compressor Racks R22 Units (Quick Freezing Low Temperature Type)

Temperature:-40°C~ -25°C Models:JZBSBF2-40JB---JZBSBF5-150JB(40HP-150HP)

Air Cooled Compressor Racks; Refrigerant-R22

Air Cooled Compressor Racks R22 Units

Temperature:-5°C~ 5°C (Middle and High Temperature Units)

a. 2 Compressors Racks Models:JZBBF2-20MB---JZBBF2-100MB(20HP-100HP)

Design Working Condition:Evaporation Temperature -7°C;Environmental Temperature 35°C; Suction Overheat 10°C.

Air Cooled Compressor Racks R22 Units

Temperature:-5°C~ 5°C (Middle and High Temperature Units)

b. 3 Compressors Racks Models:JZBBF3-30MB---JZBBF3-150MB(30HP-150HP)

Design Working Condition:Evaporation Temperature -7°C;Environmental Temperature 35°C; Suction Overheat 10°C.

Air Cooled Compressor Racks R22 Units

Temperature:-5°C~ 5°C (Middle and High Temperature Units)

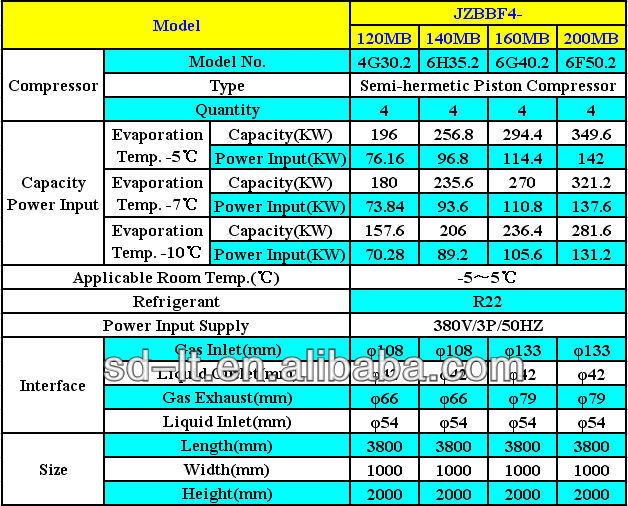

c. 4 Compressors Racks Models:JZBBF4-40MB---JZBBF4-200MB(40HP-200HP)

Design Working Condition:Evaporation Temperature -7°C;Environmental Temperature 35°C; Suction Overheat 10°C.

Air Cooled Compressor Racks R22 Units

Temperature:-5°C~ 5°C (Middle and High Temperature Units)

d. 5 Compressors Racks Models:JZBBF5-50MB---JZBBF5-250MB(50HP-250HP)

Design Working Condition:Evaporation Temperature -7°C;Environmental Temperature 35°C; Suction Overheat 10°C.

Air Cooled Compressor Racks R22 Units

Temperature:-20°C~ -15°C (Middle and Low Temperature Units)

a. 2 Compressors Racks Models:JZBBF2-20LB---JZBBF2-100LB(20HP-80HP)

Design Working Condition:Evaporation Temperature -23°C;Environmental Temperature 35°C; Suction Overheat 10°C.

CIC is to be used for the evaporation temperature under -25°C operation.

Air Cooled Compressor Racks R22 Units

Temperature:-20°C~ -15°C (Middle and Low Temperature Units)

b. 3 Compressors Racks Models:JZBBF3-30LB---JZBBF3-120LB(30HP-120HP)

Design Working Condition:Evaporation Temperature -23°C;Environmental Temperature 35°C; Suction Overheat 10°C.

CIC is to be used for the evaporation temperature under -25°C operation.

Air Cooled Compressor Racks R22 Units

Temperature:-20°C~ -15°C (Middle and Low Temperature Units)

c. 4 Compressors Racks Models:JZBBF4-40LB---JZBBF4-160LB(40HP-160HP)

Design Working Condition:Evaporation Temperature -23°C;Environmental Temperature 35°C; Suction Overheat 10°C.

CIC is to be used for the evaporation temperature under -25°C operation.

Air Cooled Compressor Racks R22 Units

Temperature:-20°C~ -15°C (Middle and Low Temperature Units)

d. 5 Compressors Racks Models:JZBBF5-50LB---JZBBF5-200LB(50HP-200HP)

Design Working Condition:Evaporation Temperature -23°C;Environmental Temperature 35°C; Suction Overheat 10°C.

CIC is to be used for the evaporation temperature under -25°C operation.

Air Cooled 2-Stage Compressor Racks R22 Units

Main Parts:

a.Semi-hermetic Bitzer Compressor b.Crankcase Heater c.Exhaust one-Way valve d.Shock Tube e.Oil Separator f.Oil Balance Device g.Oil Storage Device h.Oil Filter i.Pressure Diff. Check Valve j.Liquid Storege Device(Except Water Cooled Unit) k.Dry Filter l.Liquid Sight Gauge m.Electromagnetic Valve n.Air and Liquid Separator o.Pressure Protector p.High/Medium/loW Pressure Gauge q.Hydraulic Protector r.Controlling Box

Temperature:-40°C~ -25°C (Quick Frzeezing Low Temperature Type)

Models:JZBSBF2-40JB---JZBSBF3-150JB(40HP-150HP)

Design Working Condition:Ambient Temperature 35°C. The Economizer is used for all racks operation.
