FN Series Air Cooled Condenser

FOB Price:

Open price

Min.Order Quantity:

10 Set/Sets

Supply Ability:

20000 Set/Sets per Month

Port:

Qingdao Port

Place of Origin:

Shandong, China (Mainland)

Payment Terms:

L/C,T/T

Brand:

LYTTE or OEM Service

Products Model:

FN-Standard Type Air Cooled Condenser

Products Details
Company Profile

Quick Details

Brand Name: LYTTE or OEM Service

Model Number: FN-Standard Type Air Cooled Condenser

Place of Origin: Shandong, China (Mainland)

Packaging & Delivery

Packaging Details: Wooden Cases or Cartons
Delivery Detail: 20days as per the requests

Specifications

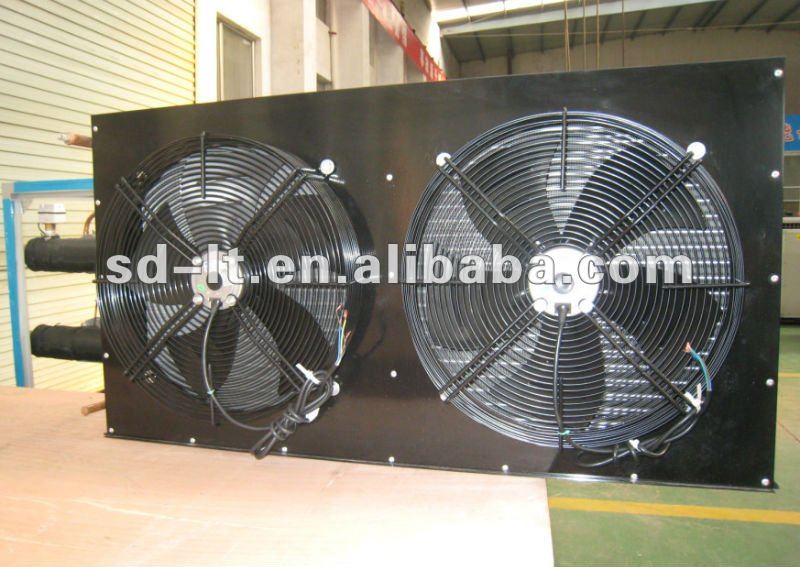

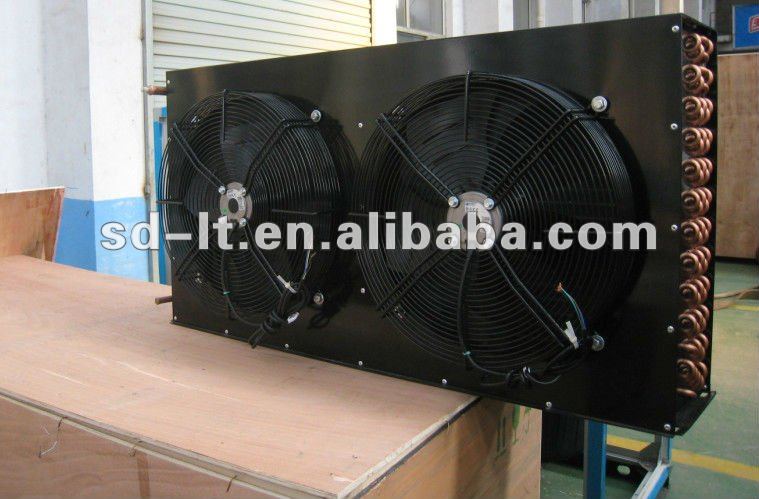

Air Cooled Condenser
-Air Cooled Condenser
-CE Certificate, Copper Tube&AL Fin
-Connected with Condensing Unit
-Cold Room

FN Series Air Cooled Condenser, Standard Type

Models Specifications

FN S ----- 80 A

FN: Condenser Products Code

S: Type: S(Low Noise Type); V(Air Top Outlet Type); P(Water Spray Type); None(Standard Type)

80:Heat Exchange Area(Sq.m)

A: Model Change Design Code

Introduction

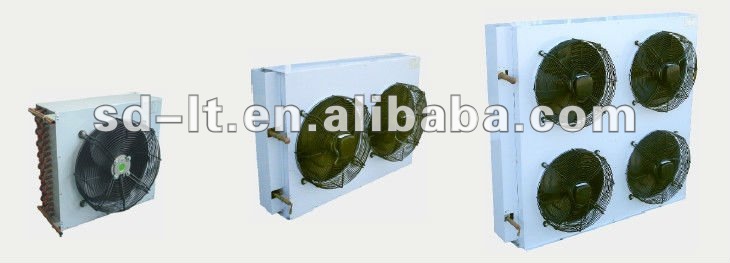

Air cooled condenser is a kind of cooling devices by utilizing air which connected with Freon refrigeration equipments. Now we produce FN, FNS type and FNV type air cooled condenser, Air side outlet for FN&FNS type and Air top outlet for FNV type.

Features

1. The outcovering is made of high-quality steel plate with sprayed surface to ensure corrosion resistance, beautiful appearance;

2. Coil adopted staggered permutation,and tighted to fit with Aluminum sheet to ensure high efficiency heat exchange;

3. Units adopted 2.8MPa air tightness test and system sewage discharge treatment;

4. Application for R22,R134a,R404a,R407C etc. refrigerant;

5. FNS condenser utilized large air volume and low speed internal motors with low noise,beautiful appearance; Application for refrigerant equipments which denmand high requirements of noise;

6. FNV condenser have the features of large windward side, high quality heat exchange; external rotor motors used.

Models No.	Nominal heat exchange	Area	Fan				Diameter of Interface
Models No.	KW	Sq.m	Power(W)	Diameter(mm)	Air Flow(m³/h)	Voltage(V)	Inlets	Outlets
FN-2	0.6	2	1×35	200	410	220	φ10	φ10
FN-3.4	1.0	3.4	1×35	200	410	220	φ12	φ12
FN-4.4	1.3	4.4	1×60	250	750	220	φ12	φ12
FN-5.4	1.6	5.4	1×75	300	1350	220	φ12	φ12
FN-7.0	2.0	7	1×90	300	1350	220	φ12	φ12
FN-8.4	2.3	8.4	1×150	350	3100	380	φ16	φ12
FN-11.5	3.5	11.5	1×150	350	3100	380	φ16	φ12
FN-15	4.4	15	1×150	350	3100	380	φ16	φ12
FN-18	5.2	18	1×180	400	4500	380	φ19	φ16
FN-22	6.4	22	1×180	400	4500	380	φ19	φ16
FN-25	8.1	25	1×180	400	4500	380	φ19	φ16
FN-21	6.1	21	2×90	300	2700	220	φ16	φ12
FN-28	8.2	28	2×150	350	6200	380	φ19	φ16
FN-33	11.2	33	2×150	350	6200	380	φ19	φ16
FN-36	12.6	36	2×180	400	9000	380	φ19	φ16
FN-43	14.8	43	2×180	400	9000	380	φ22	φ16
FN-48	17.5	48	2×180	400	9000	380	φ22	φ16
FN-55	19.2	55	2×180	400	9000	380	φ22	φ19
FN-70A	20.5	70	2×250	450	10360	380	φ28	φ19
FN-80A	24.4	80	2×250	450	10360	380	φ28	φ19
FN-100	29.6	100	4×180	400	18000	380	φ28	φ22
FN-130	38.2	130	4×180	400	18000	380	φ28	φ22
FN-150	47.2	150	4×180	400	18000	380	φ28	φ22
FN-180	54.0	180	4×180	400	18000	380	φ35	φ22

Products In Fatory:

Since 2002, LVTE starts to offer HVAC products including Ground Source HEAT PUMP(Geothermal HEAT PUMP, Water to Water HEAT PUMP),Air Source HEAT PUMP,Air Cooled CHILLER, Water Cooled CHILLER,FAN COIL,AHU,Packaged Air Conditioner etc and Refrigerant Equipments for Cold, Freezer, Blast/Quick freezing Rooms including Condensing Units, Air Cooler, Air Cooled Condenser, Evaporator, Cold Room Spare Parts and Accessaries etc. to oversea markets. Up to now, LVTE have already grown up to a group with 5 filiales, 250 employees, and 100,000 Sq.m workshop, and annual production volume 30,000 UNITS heat pumps and over 20000 UNITS chillers and 50000sets of refrigerant equipments. Now we have 2 registered Brand LUTE and LYTTE.

LUTE and LYTTE, the brand name itself means MOST ENERGY SAVING AND ENVIRONMENT PROTECTION.

LVTE employees, LVTE health and safety, plan for employees career development. We listen to our customers and work for their demands, customer satisfaction is the first to achieve. We respect our suppliers and emphasize fair competition for a long term business relationship. LVTE will continue to grow up rapidly and stand a leading place at refrigeration,heat pump technology fields by the help and contribution of LVTE people.

Impressed by the founder of specialist knowledge and experience at HEAT PUMP,CHILLER,Refrigeration fields, helped by the closed cooperation with engineers from world famous refrigerant parts companies . LVTE management team is keen to committed innovation to develop low carbon emissions heat pumps to fight for the cold weather, world warming and power shortage. LVTE heat pumps, such as air source heat pumps, water source heat pumps, geothermal ground source heat pumps,chillers are changing our ways of living, to reduce our foot print.LVTE is consistently create new possibilities to develop new technology for reducing carbon emissions, enhance people's comfort and improve lives.
