Automatic Precision Filter General

Particle contamination in process water accelerates the rate of wear of system components. The particles suspended in the media also have detrimental effects on ends products. In order to protect the operational infrastructure and to guarantee shorter maintenance times, it is essential to have a filtration system to remove solid particles from operating fluids.
The automatic back-flushing filter has been highly useful. Numerous operators of power stations, district heating, sewage treatment plants, and manufacturing plants have relied on this dependable filter for many years.

Automatic Precision Filter Structure

Automatic Precision Filter  Back-flushing
1.The gear motor rotates the flushing arm under the filter elements and ensures the contamination is discharged.
2.The contamination is flushed away through the open back-flushing valve.
3.The pressure drop between filtrate side and back-flushing line flushes a small amount of the filtrate back through the contaminated filter elements.
4.The contamination particles collected on the inside of the filter elements are loosened and flushed into the backflushing line via the flushing arm.
5.After the "back-flushing time per element" has expired, the back-flushing valve is closed. In this way, all the filter elements are back-flushed, one after the other.
A back-flushing cycle is terminated once all filter elements have been cleaned.


Automatic Precision Filter  is triggered:
– When the differential pressure trigger point is exceeded,
– By means of an adjustable timer
– By pressing the TEST button.

Optimum structure and back-flushing design
The special conical shape and configuration of the filter elements allow consistent flow, resulting in a low pressure drop and complete cleaning of the elements.
Very low-maintenance. Its robust design, specially developed for retrofitting, makes installation in both existing and new systems fast and cost-effective.

Pulse-aided back-flushing
On the control types EPT and PT, the flushing arm remains under the filter element for only a few seconds.

Variable filter isometry:
The inlet and outlet flanges as well as the back-flushing line can be configured in different positions. This means that the filter can be integrated easily into any system layout.

Electromechanical design
Simple install. PLC controller and drop pressure test pipes connected already, connect with air source can into use.

Parameter settable
Users can set drop pressure and time on actual usage.

Automatic Precision Filter Technical specifications

Automatic Precision Filter Performance

Costs

Automatic Precision Filter Maintenance

Automatic Precision Filter Industries and Applications

Power industry
• Conditioning of industrial water used to cool generators
• Filtration of sealing water to increase the service life of the turbine shaft floating ring seals in hydroelectric power stations

Steel industry
• Filtration of process water to protect nozzle sand pumps in high pressure descaling
• Water conditioning for cooling blast furnaces and rolling mills
• Emulsion filtration in hot and cold rolling mills
• Filtration of rolling emulsions

Paper industry
• Protection of all types of nozzles
• on paper machines
• Treatment of fresh water (e.g. river water) to be used for cooling

Automotive industry
• Filtration of coolant lubricants
• Filtration of washing fluids
• Protection of machine tools

Marine
-filtration forballast water conditioning systems

Chemical industry
• Cooling water filtration
• Waste water filtration
• Filtration of chemicals

Oil and gas industry
• Filtration of injection water
• Filtration of cooling water
• Filtration of service water
• Filtration of flushing water (pipeline flushing)
• Filtration solution for the subsea sector

Water / waste water conditioning
• Protective filter before membrane systems
• Conditioning of service water in sewage treatment plants

Mining
• Filtration of water for shield spraying
• Filtration of water for coal-cutting machinery
• Treatment of cooling water for mine ventilation

Power supply

Electric or pneumatic:EPT
Electric: EU

Automatic Precision Filter Models

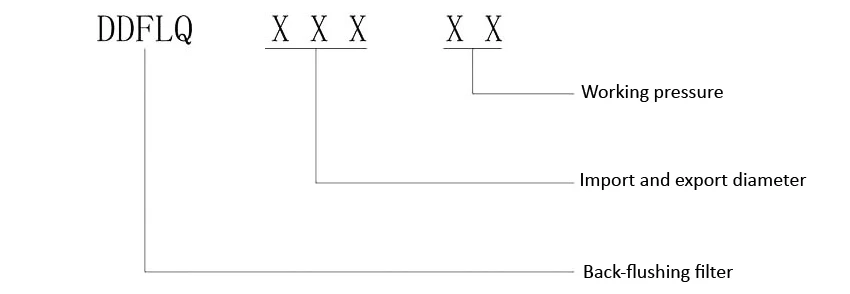

how to select model
