Brand Name: Peide Electrochemical Scale Treatment
Model Number: F/G Electrochemical Scale Treatment
Place of Origin: Jiangsu, China (Mainland)
Electrochemical Scale Treatment System for cooling towers
Electrochemical Scale Treatment Core principles
1. Efficient pulse and low-voltage electric field can capture dirt ions, cleaning visible.
2. Electric field produce the crystallite which has function of prevent with 48hours.
3. Electrode with the function of activity and catalytic can produce reactive oxygen and other strong bactericidal factor which can kill bacterial and algae.
4. Active substances form Fe3O4 dense protective film to prevent corrosion on the inner wall of water pipe
5. The suspended will be divided efficiently and removed from the water treatment equipment. The water will become clean.
Electrochemical Scale Treatment Application
Electrochemical Scale Treatment Technical parameters
Input power: ~ 380 v, 50 hz
Operating voltage: < 36 v
The range of the water temperature: 0 ~ 50 °C
Head loss: 4 ~ 7 m
The range of the water hardness quality<700mg/L(CaCO3)
Descaling anti-scaling efficiency: 99%
Sterilization rate: > 99%
algae removal rate:> 97%
Legionella bacteria: meet the national standards
Corrosion rate: meet the national standards

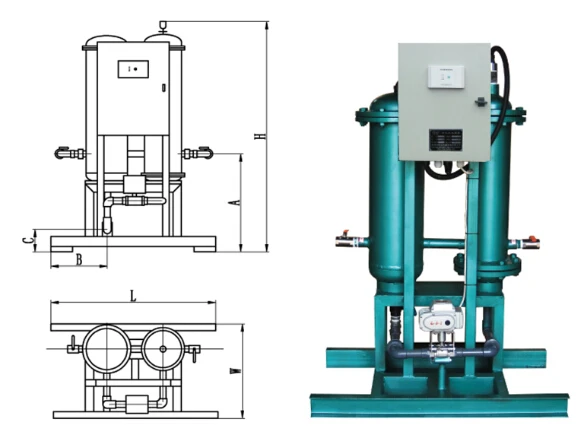

Specification size and technical parameters--F style
Model |
Suitable pipe (mm) |
Boundary dimension |
Extension size |
Head loss (m) |
Max power (W) |
|||
L (mm) |
W (mm) |
H (mm) |
Inlet and outlet (mm) |
Drain valve (mm) |
||||
0100F |
80 |
1450 |
720 |
1260 |
25 |
25 |
6 |
90 |
0200F |
100 |
1450 |
720 |
1260 |
25 |
25 |
6 |
120 |
0300F |
150 |
1450 |
720 |
1260 |
25 |
25 |
6 |
160 |
0400F |
200 |
1450 |
720 |
1260 |
25 |
25 |
6 |
200 |
0500F |
250 |
1450 |
720 |
1260 |
25 |
25 |
6 |
300 |
0600F |
300 |
1450 |
720 |
1260 |
32 |
25 |
4 |
500 |
0700F |
350 |
1450 |
720 |
1260 |
32 |
25 |
7 |
600 |
0800F |
400 |
1475 |
740 |
1260 |
40 |
25 |
5 |
800 |
0900F |
450 |
1475 |
740 |
1260 |
40 |
25 |
7 |
900 |
1000F |
500 |
1500 |
750 |
1260 |
50 |
25 |
4.5 |
1100 |
1100F |
600 |
1500 |
750 |
1260 |
50 |
25 |
5 |
1300 |
1200F |
700 |
1750 |
770 |
1260 |
65 |
25 |
4 |
1500 |
1300F |
800 |
1750 |
770 |
1260 |
65 |
25 |
5 |
1800 |
Technical parameters
Input power: ~ 220 v, 50 hz
Operating voltage: < 36 v
Sterilization rate: >99%
Suitable water temperature:0-95 celsius degrees
Head loss: 0.2 ~1.0 m
Legionella bacteria: meet the national standards
Corrosion rate: meet the national standards
The range of the water hardness quality<700mg/L(CaCO3)
| Model | Suitable pipe (mm) | Boundary dimension | Extension size | Head loss (m) | Max power (W) | ||||
| L (mm) | W (mm) | H (mm) | Inlet and outlet (mm) | Drain valve (mm) | |||||
0100G |
80 |
950 |
580 |
1320 |
25 |
25 |
0.2 |
50 |
|
0200G |
100 |
950 |
580 |
1320 |
25 |
25 |
0.4 |
90 |
|
0300G |
150 |
950 |
580 |
1320 |
25 |
25 |
0.7 |
120 |
|
0400G |
200 |
950 |
580 |
1320 |
25 |
25 |
1.0 |
160 |
|
0500G |
250 |
950 |
580 |
1320 |
25 |
25 |
1.0 |
220 |
|
0600G |
300 |
950 |
580 |
1320 |
32 |
25 |
1.0 |
300 |
|
0700G |
350 |
950 |
580 |
1320 |
32 |
25 |
1.0 |
500 |
|
0800G |
400 |
950 |
580 |
1320 |
40 |
25 |
1.0 |
600 |
|
0900G |
450 |
1000 |
900 |
1320 |
40 |
25 |
1.0 |
800 |
|
1000G |
500 |
1000 |
900 |
1320 |
50 |
25 |
1.0 |
900 |
|
1100G |
600 |
1000 |
900 |
1320 |
50 |
25 |
1.0 |
1100 |
|
1200G |
700 |
1000 |
1220 |
1320 |
65 |
25 |
1.0 |
1400 |
|
1300G |
800 |
1000 |
1220 |
1320 |
65 |
25 |
1.0 |
1700 |
|
