China supplier JKTL api gate valve

FOB Price:

US 32.69-1,203.44 / Piece

Min.Order Quantity:

1 Piece/Pieces

Supply Ability:

500 Piece/Pieces per Month

Port:

TIANJIN, SHANGHAI

Place of Origin:

Hebei, China (Mainland)

Payment Terms:

L/C,D/A,D/P,T/T,Western Union,MoneyGram,O/A

Brand:

JKTL

Products Model:

Gate Valve

Products Details
Company Profile

Quick Details

Brand Name: JKTL

Model Number: Gate Valve

Place of Origin: Hebei, China (Mainland)

Packaging & Delivery

Packaging Details: wooden box
Delivery Detail: 15 days after we get customers payment

Specifications

China supplier JKTL api gate valve

Product Description

JKTL valve overcome the general poor flexibility fatigue, easy to get rusty defects, the troditional

soft sealing valve is substitute. Trace the elastic deformation of the damper have compensation

and to achieve good sealing effect. The switching valve with lighter, seal reliable, flexible and long

life, goood memory and obvious advantages, which can be widely used in water, sewage,

construction, food, electricity, medicine, metallurgy, light industry and texible, energy systems

such as fluid pipeline regulation and the closure devices.

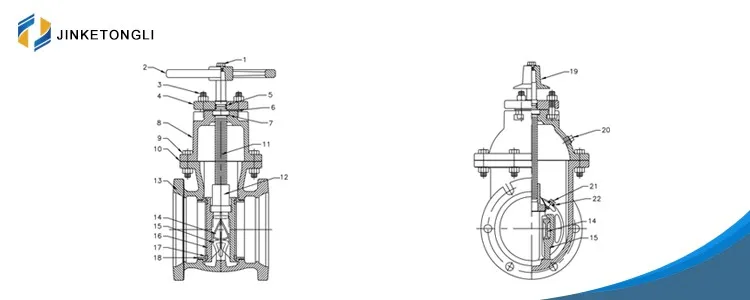

	QTY	DESCRIPTION	MATERIAL
1	1	Capscrew & Whasher	304 Stainless Steel
2	1	Handwheel	Cast iron, ASTM A126 Class B
3		Bolts & Nuts (O-Ring Plate)	304 Stainless Steel
4	1	O-Ring Plate	Cast iron, ASTM A126 Class B
5	2	O-Rings (O-Ring Plate)	Rubber
6	1	Gasket (O-Ring Plate)	Composition
7	1	Low Torque Bearing	Delrin
8	1	Cover	Cast iron, ASTM A126 Class B
9		Bolts & Nuts (Cover)	304 Stainless Steel
10	1	Gasket (Cover/Body)	Composition
11	1	Non-Rising Stem	Low Zinc Bronze
12	1	Stem/Gate Nut	Bronze
13	1	Body	Cast iron, ASTM A126 Class B
14	2	Wedge	Bronze
15	2	Hook	Cast iron, ASTM A126 Class B
16	2	Gate/Disc	Cast iron, ASTM A126 Class B
17	2	Gate/Disc Ring	Bronze
18	2	Case/Body Ring	Bronze
19	1	Operating Nut	Cast iron, ASTM A126 Class B
20	1	Pipe Plug	Steel with Teflon
21	4	Capscrew on 10" & 12" only	Silicon Bronze
22	2	Straps on 10" & 12" only	Stainless Steel

* DELRIN BEARING, PART 7, USED ON 4"-12" ONLY.

2"-3" has all bronze gates, without rings and hooks. Wedge is one piece bronze.

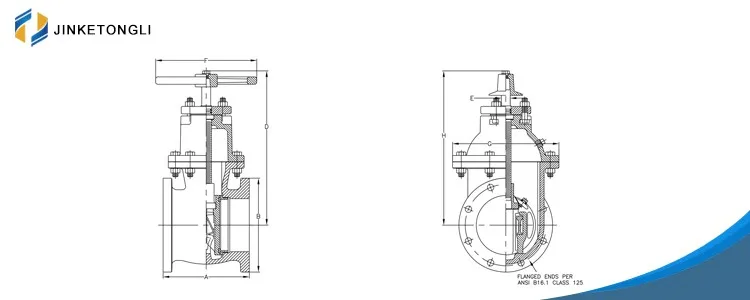

VALVE SIZE	A	B	C	D	E	F	G	H	TURNS TO OPEN
2	7	6	5	11 3/4	7/8	7 1/4	5 7/8	11 3/4	5
2 1/2	7 1/2	7	5 1/8	13	7/8	7 1/4	6 3/8	13	6
3	8	7 1/2	5 1/2	14	7/8	7 1/4	7 1/8	14	7
4	9	9	7	15 1/4	15 1/4	1 1/8	9	15 1/4	15
5	10	10	7 3/4	16 3/4	16 3/4	1 1/8	10 7/8	16 3/4	18
6	10 1/2	11	9	18 1/2	18 1/2	1 1/4	12 5/8	18 1/2	21
8	11 1/2	13 1/2	10	21 5/8	21 5/8	1 3/8	15 1/4	21 5/8	27
10	13	16	10 5/8	28 1/4	28 1/4	1 1/2	18 1/4	28 1/4	33
12	14	19	11 1/4	30 3/4	30 3/4	1 1/2	20 1/4	30 3/4	39
