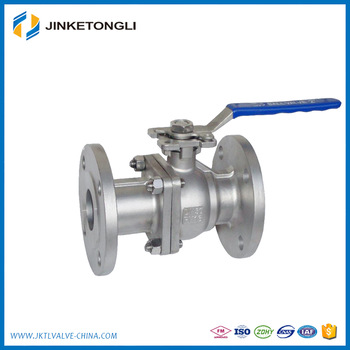

JKTL Stainless Steel 2PC flange ball valve handles

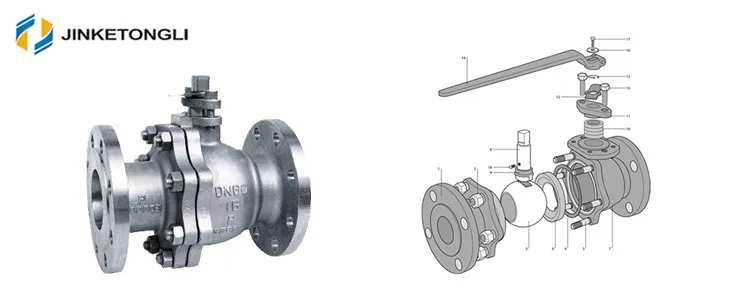

- Split body design with flanged ends for fast installation, in line maintenance and rebuilding.

- Solid ball construction provide structural integrity and minimizes flow turbulence.

- Mounting pad complies with ISO 5211 for ease and interchargeability of actuation.

- Bottom-loaded blow-out proof stem.

- Investment cast body & end cap on sizes 1/2" to 4" sand cast body & end cap on sizes 5" to 10".

- Body joint is designed to prevent excessive compression of valve internals, resulting in a consistent and low operating torque.

- Basic design complies with ASME/ANSI B16.34

- Flanged ends comply with ASME/ANSI B16.5

- Face-to-face dimensions comply with ASME/ANSI B16.10

- Tested according to ANSI/ASME B16.34 & API598.

- Fire Tested to API 607/BS 6577.

We use high quality plywood wooden case packing which avoid fumigation. It have good cushioning

performance, high strength, and corrosion resistance. The use of foam film cover the valve better

to protect the valve body and fixing wooden cases is the final step.

1. Inner packing: opp bag, then carton box for each product.
2. Outer packing: export standard carton, Foam outside protecting the goods against damage.
3. Usually we ship your order by sea or by air.
4. We do our best to ship your order within 1 week after receiving your payment.
5. We'll tell you the tracking number once your order has been sent.
6. We accept T/T Bank transfer, L/C, Western Union, Moneygram, Paypal.

1. Our products have ten years warranty.

2. We have certification of ISO, and according to the rules of ANSI, we can get the ANSI

certification.

3. Please feel free to call us if you have any query about the product. Professional answers will

be given to you in any time!

4. Any products you want will come to you! If you have any request, satisfying answer will reach

you from our professional team and research staff ASAP.

5. All the products can be customized!

Hebei Tongli automatic control valve manufacturing Co., Ltd. which was founded in 1995. The

company is a professional manufacturer engaged in the research, production, and sales, through

development and innovation for 20 years, research, production and sales of professional

committed to the heating valve.

The company covers an area of 58000 square meters, 510 employees including 280 engineering

and technical personnel. The marketing team of 180 sales of the elite 90 people, the company has

international advancedtesting equipment 30 sets, 400 sets of CNC machine tools, products

structure, the heating valve products as the leading factor, provides a full range of HVAC system

design and installation, debugging program.

The company has passed the certification of ISO9001:2000 quality system, the two time the license

of special equipment, the people's Republic of China occupational health and safety management

system certification,environmental management system certification.
