Brand Name: Recool
Model Number: DT30A
Place of Origin: Henan, China (Mainland)

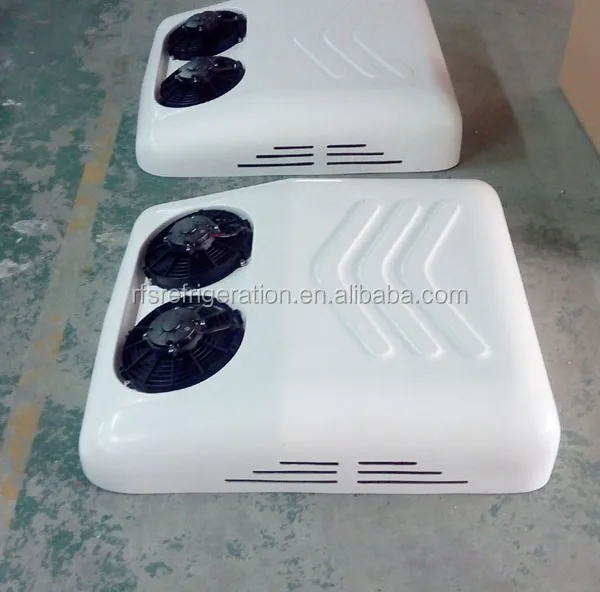

This DT30A truck air conditioner is designed for coolingthe driver's cabin. It is driven by
vehicle's battery . It does not require the installation of a compressor on the vehicle’s engine.
You just connect wire harness to battery ,the air conditioner would start to work .
Easy installtion and use .Enjoy the cool air when you drive in the hot summer.
1. compact design
2. high performance
3. low noise
4. competitive price
5. Complete service
| Item | truck air conditioner | |
| Model | DT30A | |
| Cooling capacity | 3KW(10000Btu/h-2600Kcal/h | |
| Type | Roof mounted , one body unit | |
| Refrigerant | R134a | |
| Compressor | Model | 12/24 volt dc powered |
| Displacement | 36cc/r | |
| Evaporator | Coil | Copper tube&Aluminum fins |
| Blower type | Double Axle centrifugal flow | |
| Blower output | 650m³/h | |
| Blower quantity | 1 | |
| Condenser | Coil | Copper tube&Aluminum fins |
| Fan type | Axial flow | |
| Fan output | 1700m³/h | |
| Fan quantity | 2 | |
| voltage | DC 12V /24V | |
| weight | 40kgs | |
| Overall dimension | 900mm*795mm*200mm | |
| Current draw | 12v/70A, 24V/35A | |
| Applying vehicle | truck , tractor , forklift , general macinery ,etc | |

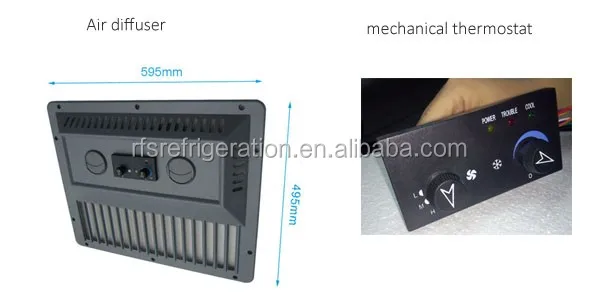

The ceiling panel is fitted with:
1 three-speed fan selector
1 mechanical thermostat control selector
1 air conditioning on/off switch 2 closable and multi-directional louvers
1 air intake and air filter access grille
Safety features
1. Should the vehicle battery go below a threshold of 10.5 V
(for a 12 V DT30A unit and 21 V for a 24 V unit), the unit will automatically shut
down. This feature prevents from emptying the battery and saves enough battery
for starting the engine of the vehicle.2. DT30A is equipped with a pressure switch
which protects the system in case of overpressure or low pressure.
1. We will reply you for your inquiry in 24 hours.
2. Sample order .
3. after sending, we will track the products for you once every two days, until you get
the products. When you got the goods, test them, and give me a feedback.If you have
any questions about the problem, contact with us, we will offer the solve way for you.
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral brown cartons or wooden box .
Q2. What is your terms of payment?
A: T/T. We'll show you the photos of the products and packages before delivery.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF,
Q4. How about your delivery time?
A: Generally, it will take 3 to 10days after receiving your advance payment. The specific
delivery time depends on the items and the quantity of your order.
Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
