New durable R680 direct drive front mount 12V 24V freezer unit for truck

FOB Price:

US 1,950-2,200 / Unit

Min.Order Quantity:

1 Unit/Units

Supply Ability:

500 Unit/Units per Month

Port:

Qingdao, China

Place of Origin:

Henan, China (Mainland)

Payment Terms:

L/C,T/T,Western Union

Brand:

Rifusen

Products Model:

R680

Products Details
Company Profile

Quick Details

Brand Name: Rifusen

Model Number: R680

Place of Origin: Henan, China (Mainland)

Packaging & Delivery

Packaging Details: carton or wooden box packing for freezer unit for truck
Delivery Detail: shipped within 5 working days

Specifications

Product Description

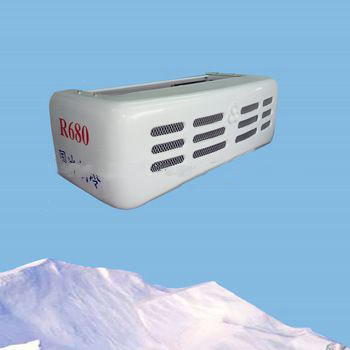

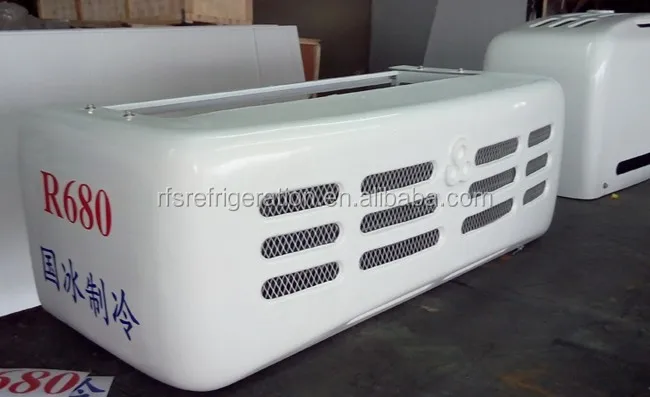

New durable R680 direct drive front mount 12V 24V freezer unit for truck

This R680 unit is designed in medium size box bodies insulated for fresh or frozen produce transport.
The R680 is suitable for operation down to -18°C.

Technical data
Model	R680
Temperature range in box body	-18℃ ~ +25℃
Drive	engine drive
Construction	split
Installation	nose mount
Voltage	12V/24V
Current draw	12V/36A, 24V/28A
Suggested box body volume	18m³ ~25m³
Control	digital microprocesser in cab
Compressor	TM21
Refrigerant	R404a
Gas charge	2.5kgs ~3.2kgs
Protection	High & low pressure switch
Condenser coil	copper tube aluminum fin

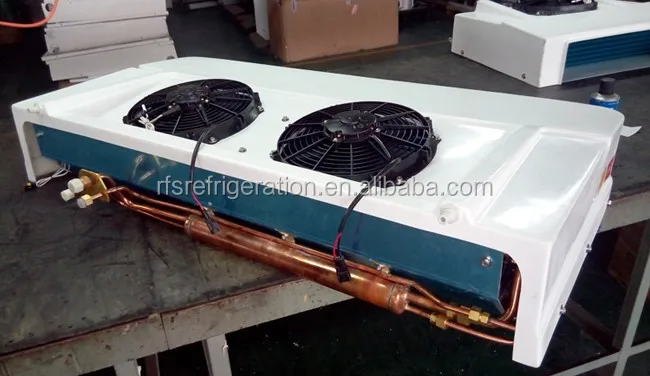

Evaporator coil	copper tube aluminum fin
Size for evaporator	1280mm650mm228mm
Size for condenser	1100mm511mm376mm
Weight for evaporator	40kgs
Weight for condenser	44kgs
Application	5.6m to 6.8m long box body insulated

Cooling Capacity

℃	℉	Watts	Kcal/h	Btu/h
-18	-0.4	3170	2726	10816
0	32	3686	3169	12577
As amebient temperature is +30℃

Supply

This unit supply include : compressor , in-cab controller with digital display, wire harness , water drain hose , suitalbe length refrigeration hose , installation kits and fittings and user manual . exclude compressor bracket .

Our Services

1. After receiving inquiry we will reply you as soon as possible .

2. We will recommend you the most suitable refrigeration unit as per your

local temperature and working condition .

3. We guarantee the delivery in the time of the order specificed .

4. After the goods is received , we will help you how to install and use .

5. Rifusen supply one year's spare parts .

shippment

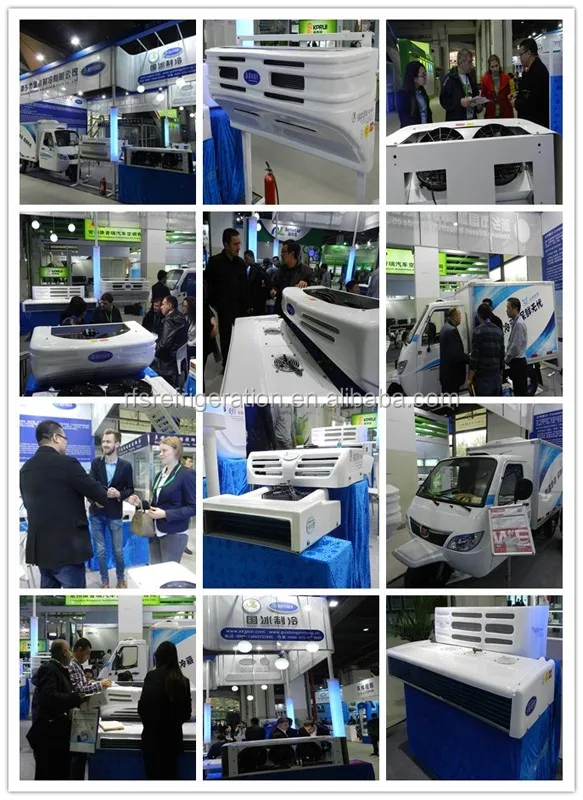

Trade Shows

Certifications

Company Information

With over 10 years experience, Rifusen specializes in the manufacture of durable, vehicle engine powered mobile refrigeration for safe delivery of your fresh and frozen products. Our refrigeration units are suitable for installation in the truck box body insulated from 2.6m to 9.6m . Rifusen is OEM supplier for large refrigerated truck box body manufacturers in China such as Beijing FOTON , Henan Xinfei and Liuzhou WUling .etc .Also our refrigeration units have been exported to many regions such as North America , South America , Middle east and Africa .
