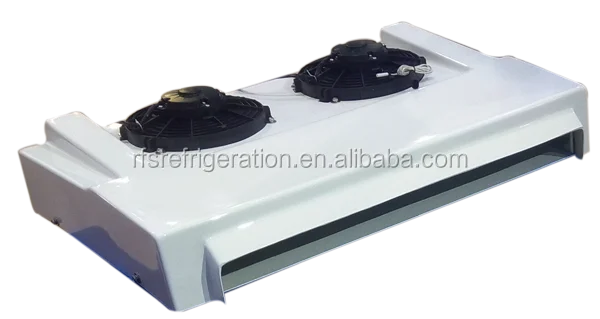

R380 front mount transport refrigeration units for small refrigerated truck

R380 front mount transport refrigeration units for small refrigerated truck

FOB Price:
US 1,000-1,500 / Unit
Min.Order Quantity:
1 Unit/Units
Supply Ability:
500 Unit/Units per Month
Port:
Qingdao, China
Place of Origin:
Henan, China (Mainland)
Payment Terms:
L/C,T/T,Western Union
Brand:
Rifusen
Products Model:
R380
Share:
  • Products Details
  • Company Profile

Quick Details

  • Brand Name: Rifusen

    Model Number: R380

    Place of Origin: Henan, China (Mainland)

  • item: transport refrigeration units

    refrigerant: R404a

    OEM: Support

  • Structure: front mount

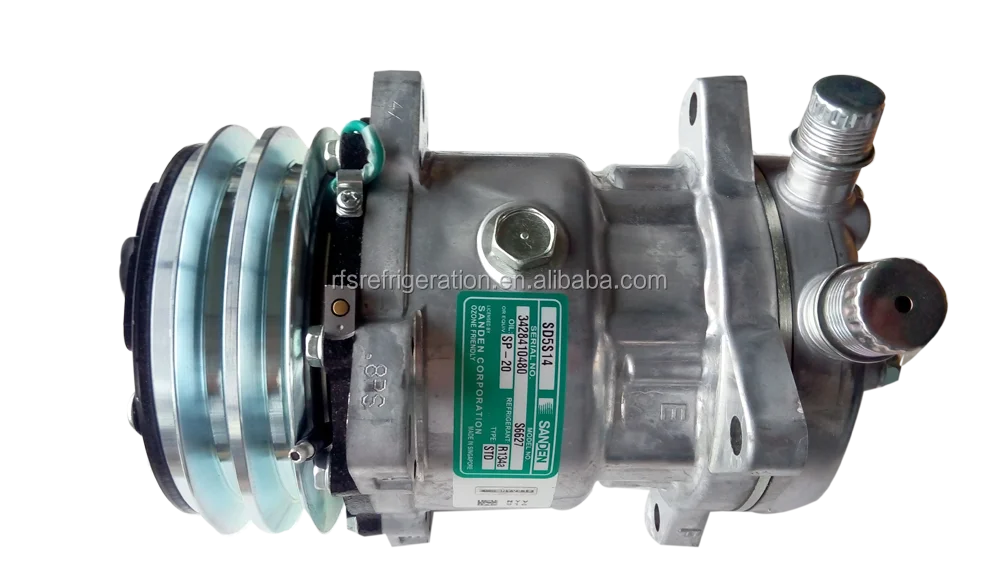

    compressor: Jap SD5S14

    Defrost: hot gas

  • expansion valve: Danfoss

    filter drier: Danfoss

    total weight: 56kgs

Packaging & Delivery

  • Packaging Details: carton packing for transport refrigeration units
  • Delivery Detail: 5 working days for transport refrigeration units

Specifications

 R380 front mount transport refrigeration units for small refrigerated truck



Product Description

This R380B unit is designed in small box bodies insulated for fresh or frozen produce

transport.It is driven by compressor which is bolted near the engine .It has great

advantages in Fuel Saving, Environmental and Highly Efficient.Special design for insulated

box body voulume up to 8m³( -18℃), or 12m³( 0℃).



digital control in cab

Environmentally friendly

Easy installation and operation

low maintenance



                                                 Technical   data
Item  transport refrigeration units
Model  R380

Temperature range in box body

(as ambient temperature+30℃)

-18℃ ~ +25℃
cooling capacity  -18℃/1620W(1393Kcal/h,5527Btu/h)
0℃/1884w(1620kac/h,6428Btu/h)
Drive  engine drive
Construction  split
Installation   nose mount
Voltage  12V/24V
Current draw  12V/36A, 24V/28A
Suggested box body volume  8m³ ~12m³
Control  digital microprocesser in cab
Compressor  SD5H14
Refrigerant  R404a
Gas charge 1.7kgs
Protection High & low pressure switch
Condenser coil  copper tube aluminum fin
Evaporator coil copper tube aluminum fin
Size for evaporator 952mm*556mm*183mm
Size for condenser  970mm*535mm*375mm
Weight for evaporator  23kgs
Weight for condenser 33kgs
Application 3.6m to 4.2m long box body insulated
Cooling capacity  -18℃ / 1600W (5450Btu/h, 1375Kcal/h)
0℃ / 3200W (10000Kcal/h, 2750Kcal/h)

























Our Services

1. We will reply you for your inquiry in 24 hours.

2. Sample order .

3. after sending, we will track the products for you once every two days,

until you get the  products. When you got the  goods, test them, and give me

a feedback.If you have any questions about the problem, contact with us, we

will offer the solve way for you.







Company Information

With over 10 years experience, Rifusen specializes in the manufacture of durable,

vehicle engine powered mobile refrigeration for safe  delivery of your fresh and

frozen  products.Rifusen is OEM supplier for large refrigerated truck box body

manufacturers .Over 1500 refrigeration units have been used at many regions in the world .





FAQ

Q1. What is your terms of delivery?

A: EXW, FOB, CFR, CIF.

Q2: How will you arrange the delivery?

A:after sending, we will track the products for you once every two days, until you get the products. When you got the goods, test them, and give me a feedback.If you have any

questions about the problem, contact with us, we will offer the solve way for you.

Q3:Are you responsible for technical guidance ?

A: We provide the specific technological help, include: installation, use and maintenance.



Q6. Do you test all your goods before delivery?

A: Yes, we have 100% test before delivery.
