Bundy tube condenser evaporative condenser made in china , air cooled condenser tube

Bundy tube condenser evaporative condenser made in china , air cooled condenser tube

Specifications

color bundy tube /single wall bundy tube/Coating bundy tube
Size; 4.76,6.35,7.96,9.52,12.7
TK :0.7mm
PK:Roll/Pancake

Specifications:

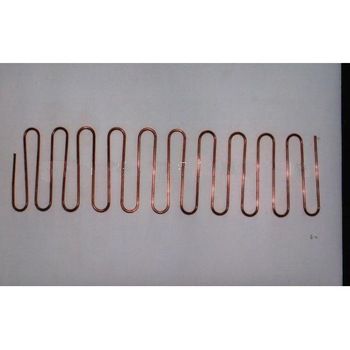

Single wall bundy tube for condenser
Outer diameter: 4.0mm-10.0mm.
Wall thickness: 0.5mm-1.0mm.

Single wall bundy tube for Condenser .

Widely used in freezer,refrigerator

1)material:be made of steel strap,low carbon;

2)main use:widely used in refrigeration,freezer etc;

3)outer diameter:4.00mm,4.76mm,6.00mm,6.35mm,8.00mm;

4)wall thickness:0.50mm,0.60mm,0.65mm,0.70mm;

5)packing as customer's request;

6)also passed ISO9001 quality attestation system;

7)competitive price among the same area.

8) Features: No stain, smooth surface, high intensity, good plasticity, strong corrosion resistance, small resistance.
9)Package : wooden boxes,iron pallets,iron boxes etc,we also can follow customer's own request

1. Main use: widely used in evaporators, refrigerators, automobiles and heaters
2. Features: high intensity, good plasticity, and small resistance
3. Standard: ASTMA254-94
4. Materials: materials can be altered according to customers' requirements
5. Size: 4.7*0.7mm, 6.35*0.7mm,
6. Type: Zinc coating outer side, Cu coating outer side, Cu coating both sides
7. Packing: packed with iron pallet

bundy tube /brake tube/ Coating bundy tube / PVF tube / color bundy tube / single wall bundy tube
Plating:Copper, White&Yellow Zinc, Olive Green and PVF
Size:4.76, 6.35, 8, 9.5*0.7 mm,etc.
ISO9001
TS16949

The low carbon steel brake tube is supplied in single wall and double wall(Bundy Pipe). The products conform to ASTM A-254-91, A-512-91A and ASTM A214 and A513 in material and quality. Commonly sizes we supply to the client include 4.76mm×0.7 mm,6.35 mm×0.7 mm and 8 mm×0.7 mm.

Plating:Yellow Zinc,White Zinc,Copper and PVE. Package:in coils/cut-to-length Application:Hydraulic brake line tubing, brake tubing, brake pipes, fuel lines, transmission oil cooler lines, air conditioning tube, power steering, condenser, compressor, evaporator etc.

Standard ASTM A254
OD:4mm,4.76mm 6mm 6.35mm.7.94mm,8mm,12.76
WT:0.4-1.0MM

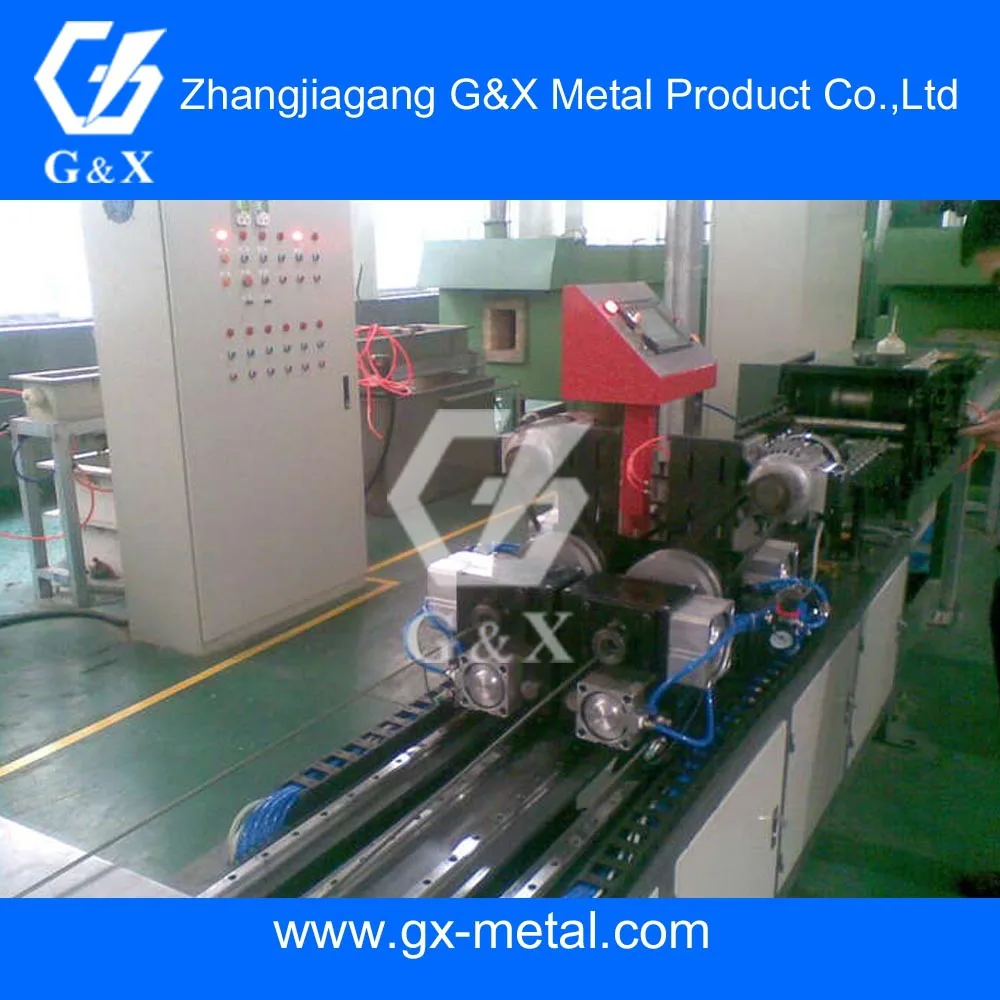

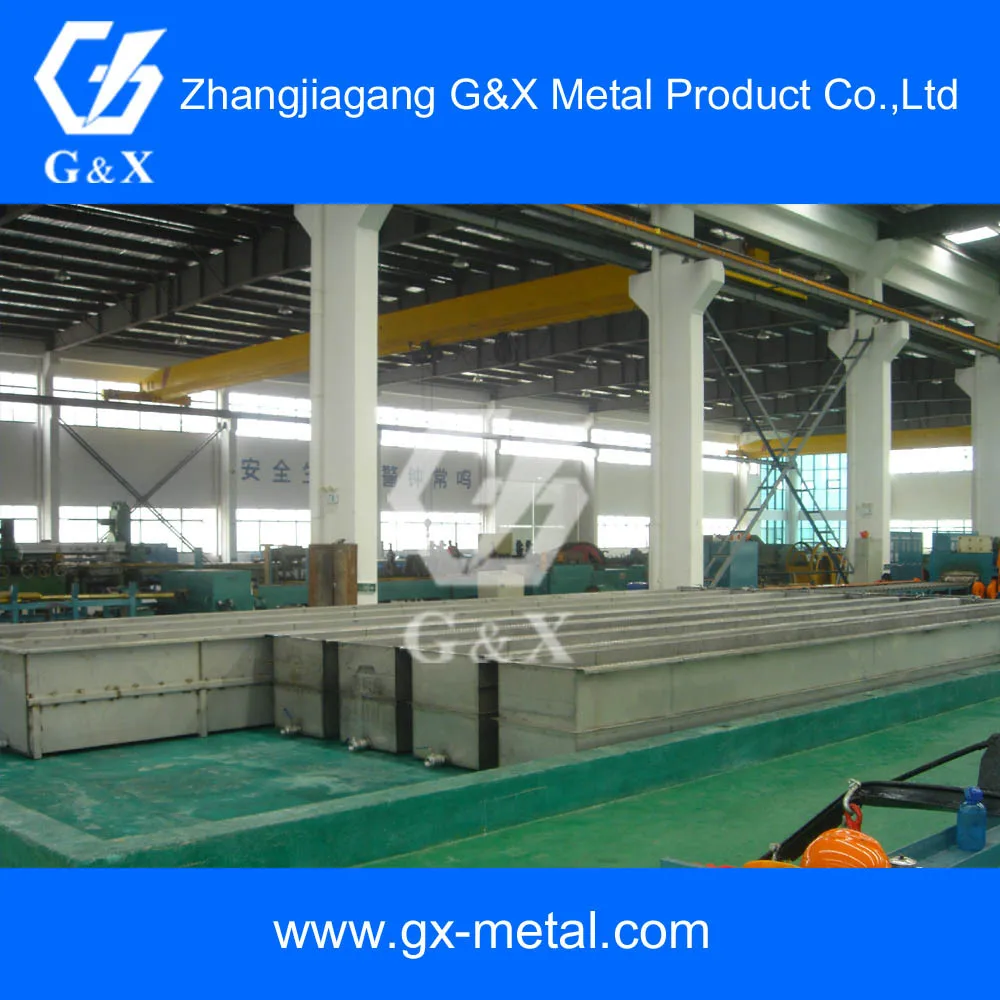

Our product & workshop & packing & delivery

Our certificates

The Advantages to choice us:
1)Fast delivery: 35days guaranteed below 50tons;

2) Quality Assured: strictly acc. to International standard JIS & ASTM & BS& EN, with system ISO9001 running very well;

3) Good Service: supplied anytime after sales, with our experts for your technical guide free of charge;

4) Reasonable Price: to better support your business;

5)  Overseas Market: Over 30countries
