1. Products Description of Floor Standing (Vertical) Fan Coil

INSIDE UNIT

Panels and frame are made of galvanized steel, properly punched and punched for fixing both accessories and the unit itself, either to wall (vertical version) or ceiling (horizontal version).

HEATING COIL

The coils are made of seamless tubes expanded into aluminum fins in continuous block. The connections have brass headers with female fittings and provided with easily accessible vent and drainage valve.

FAN DECK

The fan decks are composed of double suction centrifugal fans with aluminum impellers and 3-speed fan motors. Each fan motor assembly is dynamically balanced.

FILTER

The easily removable filter is made of filtering honeycomb polypropylene fabric and supported by an aluminum or plastic frame.

DRIP TRAY

The drip trays are made from sheet metal treated with polyester powder coating to ensure total resistance to atmospheric agents. The “L” type tray makes the units suitable for both vertical and horizontal installation.

ELECTRICAL CONNECTION BOX

All electric wires are connected to enclosed electrical terminal block, situated on the opposite side to the water connections.

DECORATIVE CABINET

The decorative cabinet has a modern design that blends in with any environment. It’s made from galvanized steel treated with polyester powder coating to ensure total resistance to rust, corrosion, chemical agents, aliphatic solvents and alcohols.

The discharge grille and supporting legs are made of ABS materials.

ON-BOARD THERMOSTART

Mechanical type for two pipe system exposed version use, working mode selection (OFF-Heating-Cooling), ventilation (HIGH-MED-LOW) and room temperature setting.

OPTIONAL

1. Condensation tray (water connection area)

2. Different type thermostats with more advanced functions

3. High external static pressure 30Pa and 50Pa

Model Specifications

 Tech Data of Floor Standing(Vertical) Fan Coil Unit

2. Packaging & Shipping of Floor Standing (Vertical) Fan Coil Unit

 Packages: Cartons, International Standard Package.

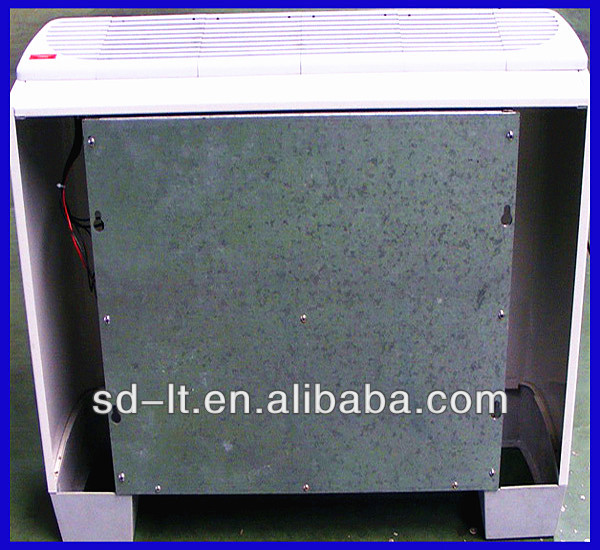

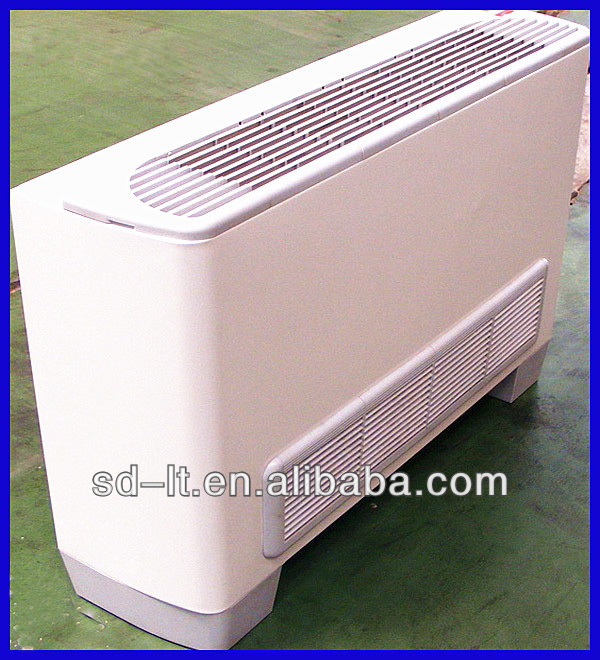

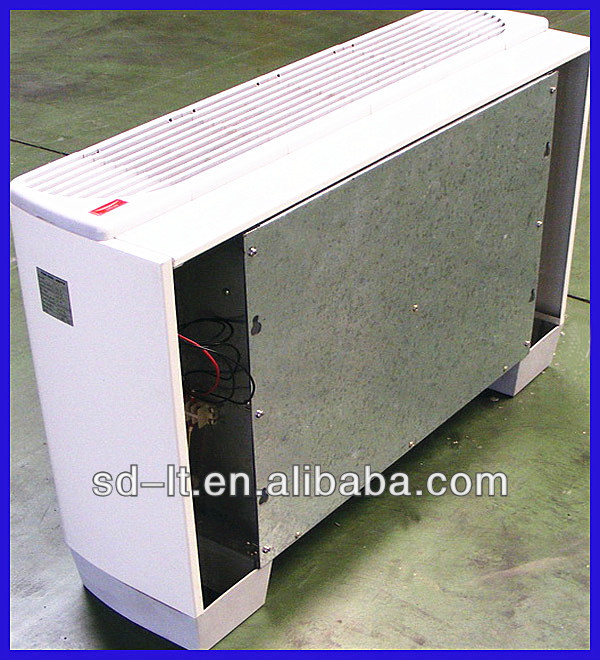

3. Finished Product of Floor Standing (Vertical) Fan Coil Unit

4. Our Service

Provide best quality and best service to all the customers,

24 hours technical support on the installation and usage and maintenance.

Other Fan Coil Units for Your Choice

Why Choose Us?

1. National High-tech Enterprise, Abundant Financial Resources

Registered capital USD5,000,000, and as a new energy industry, we got financial support from government of Shandong province.

We specializing in producing HVAC products (Heating, Ventilation and Air Conditioning ) , including central air conditioning system,

water Source HEAT PUMP, Ground Source HEAT PUMP, and Refrigerant Equipments, including Air Cooled CHILLER, Water Cooled CHILLER,etc.

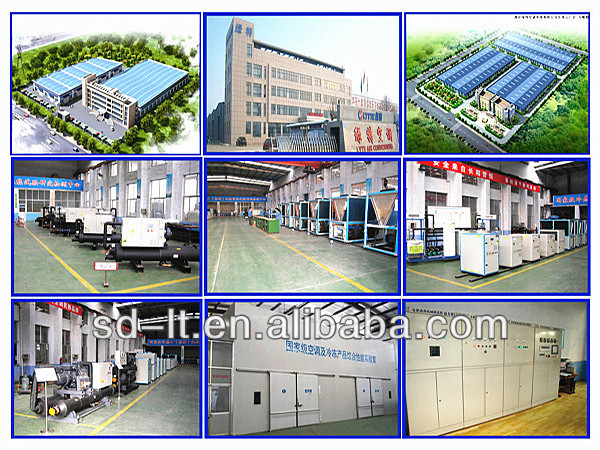

2. Two Production Bases, Guarantee Supply Ability.

Covering an area of 110,000 CBM workshop, annual production of heat pumps are 30,000 UNITS, chillers are 20,000 UNITS,

and refrigerant equipments are 50,000 sets, fan coil 500,000 PCS.

3. Famous Brand Enjoyed High Reputation overseas

As ground source heat pump, we are one of ten leading brands, product exported to Russia, Kazakhstan,

Ukraine, United States, Britain, Germany, Italy, and so on. And every year many overseas client come for a visit.

4. Strong R&D Research Team

Built an Academician workstation, consisted of domestic famous professors and doctors, and high tech workman,

which can design projects according to customer’s requirement., And built long term cooperation relationship with

famous universities, such as Shandong university, Xi’an Jiaotong university, Qingdao ocean university.

5. Perfect Quality Control System

Invested USD1,700,000 to build the enthalpy difference laboratory, imported advanced inspection equipments from

America, covering 100% testing item of AHRI, and with a perfect quality control system, from raw material purchase to

production and quality inspection, to ensure the high quality product can reach the international standards.

6. Qualified Export Certificate: CE certificate, and CRAA, ISO9001.
