Four-Way Cassette Fan Coil Unit (Chiller Water Fan Coil Unit)

FOB Price:

Open price

Min.Order Quantity:

10 Piece/Pieces

Supply Ability:

10000 Piece/Pieces per Month

Port:

QINGDAO

Place of Origin:

Shandong, China (Mainland)

Payment Terms:

L/C,D/P,T/T,Western Union

Brand:

LYTTE, OEM, OEM Service

Products Model:

FP3.4KM-FP23.8KM

Products Details
Company Profile

Quick Details

Brand Name: LYTTE, OEM, OEM Service

Model Number: FP3.4KM-FP23.8KM

Place of Origin: Shandong, China (Mainland)

Packaging & Delivery

Packaging Details: Cartons, International Stadard Packages
Delivery Detail: 15 Days below 500PCS, Over 500PCS can be negotiated

Specifications

Cassette Fan Coil Unit
-200CFM-1700CFM Air Flow Rate
-2KW-12.8KW for Cooling
-4-way Air Blowing

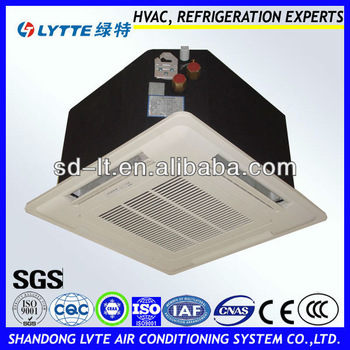

Four-Way Cassette Fan Coil Unit (Chiller Water Fan Coil Unit)

Product Description

Features of Cassette Fan Coil Unit

INSIDE UNIT
Panels and frame are made of galvanized steel, properly punched and punched for fixing

both accessories and the unit itself, either to wall (vertical version) or ceiling (horizontal

version).
COOLING OR HEATING COIL
The coils are made of seamless tubes expanded into aluminum fins in continuous block.

The connections have brass headers with female fittings and provided with easily accessible

vent and drainage valve.

FAN DECK
The fan decks are composed of double suction centrifugal fans with aluminum impellers and

3-speed fan motors. Each fan motor assembly is dynamically balanced.
FILTER
The easily removable filter is made of filtering honeycomb polypropylene fabric and supported

by an aluminum or plastic frame.
DRIP TRAY
The drip trays are made from sheet metal treated with polyester powder coating to ensure

total resistance to atmospheric agents. The “L” type tray makes the units suitable for both

vertical and horizontal installation.

ELECTRICAL CONNECTION BOX
All electric wires are connected to enclosed electrical terminal block, situated on the opposite

side to the water connections.

DECORATIVE CABINET
The decorative cabinet has a modern design that blends in with any environment. It’s made

from galvanized steel treated with polyester powder coating to ensure total resistance to rust, corrosion, chemical agents, aliphatic solvents and alcohols.The discharge grille and supporting

legs are made of ABS materials.
ON-BOARD THERMOSTART
Mechanical type for two pipe system exposed version use, working mode selection (OFF-

Heating-Cooling), ventilation(HIGH-MED-LOW) and room temperature setting.

OPTIONAL
Condensation tray (water connection area)
Different type thermostats with more advanced functions
High external static pressure 30Pa and 50Pa

Model Specifications:

FP 5.1 KM

FP: Fan Coil

5.1: Model No. and Size

KM: 4-way cassette type

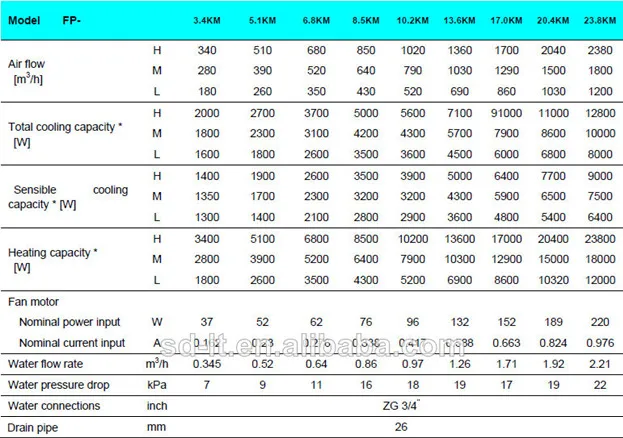

Technical Data of Cassette Fan Coil Unit

Cassette Fan Coil Unit Products

Since 2002, LVTE starts to offer HVAC products including Ground Source HEAT PUMP(Geothermal HEAT PUMP, Water to Water HEAT PUMP),Air Source HEAT PUMP,Air Cooled CHILLER, Water Cooled CHILLER,FAN COIL,AHU,Packaged Air Conditioner etc and Refrigerant Equipments for Cold, Freezer, Blast/Quick freezing Rooms including Condensing Units, Air Cooler, Air Cooled Condenser, Evaporator, Cold Room Spare Parts and Accessaries etc. to oversea markets. Up to now, LVTE have already grown up to a group with 5 filiales, 250 employees, and 100,000 Sq.m workshop, and annual production volume 30,000 UNITS heat pumps and over 20000 UNITS chillers and 50000sets of refrigerant equipments. Now we have 2 registered Brand LUTE and LYTTE.

LUTE and LYTTE, the brand name itself means MOST ENERGY SAVING AND ENVIRONMENT PROTECTION.

LVTE employees, LVTE health and safety, plan for employees career development. We listen to our customers and work for their demands, customer satisfaction is the first to achieve. We respect our suppliers and emphasize fair competition for a long term business relationship. LVTE will continue to grow up rapidly and stand a leading place at refrigeration,heat pump technology fields by the help and contribution of LVTE people.

Impressed by the founder of specialist knowledge and experience at HEAT PUMP,CHILLER,Refrigeration fields, helped by the closed cooperation with engineers from world famous refrigerant parts companies . LVTE management team is keen to committed innovation to develop low carbon emissions heat pumps to fight for the cold weather, world warming and power shortage. LVTE heat pumps, such as air source heat pumps, water source heat pumps, geothermal ground source heat pumps,chillers are changing our ways of living, to reduce our foot print.LVTE is consistently create new possibilities to develop new technology for reducing carbon emissions, enhance people's comfort and improve lives.
