Air filter manufacture for Clean room hepa Fan Filter Unit FFU

FOB Price:

US 180-300 / Piece

Min.Order Quantity:

200 Piece/Pieces

Supply Ability:

10000 Piece/Pieces per Week

Port:

QingDao

Place of Origin:

Shandong, China (Mainland)

Payment Terms:

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Brand:

AOBO

Products Model:

FFU

Products Details
Company Profile

Quick Details

Brand Name: AOBO

Model Number: FFU

Place of Origin: Shandong, China (Mainland)

Packaging & Delivery

Packaging Details: Packaging Details: Standard Packing, Wooden Case Packing Delivery Detail: Shipped in 30 days after payment
Delivery Detail: Shipped in 7 days after payment

Specifications

Product Description

Model	FFU-1	FFU-2	FFU-3
FUU size	6101220350(mm)	610610350(mm)	1174574350(mm)
Filter size	600121069(mm)	61061069(mm)	117057069(mm)
Air flow	2000m3h	1000 m3h	1300 m3h
Speed control	Stepless air flow regulator can arbitrarily adjust the air flow
Voltage/current	Single phase 220V/50Hz
Output power	140W-240W
Filter efficiency	HEPA 0.3um is above 99.99%
Body material	SUS304/430 mirror stainless steel plate 1.1T//PP powder coated steel plate
Weight	25Kg	16Kg	25Kg

Description:

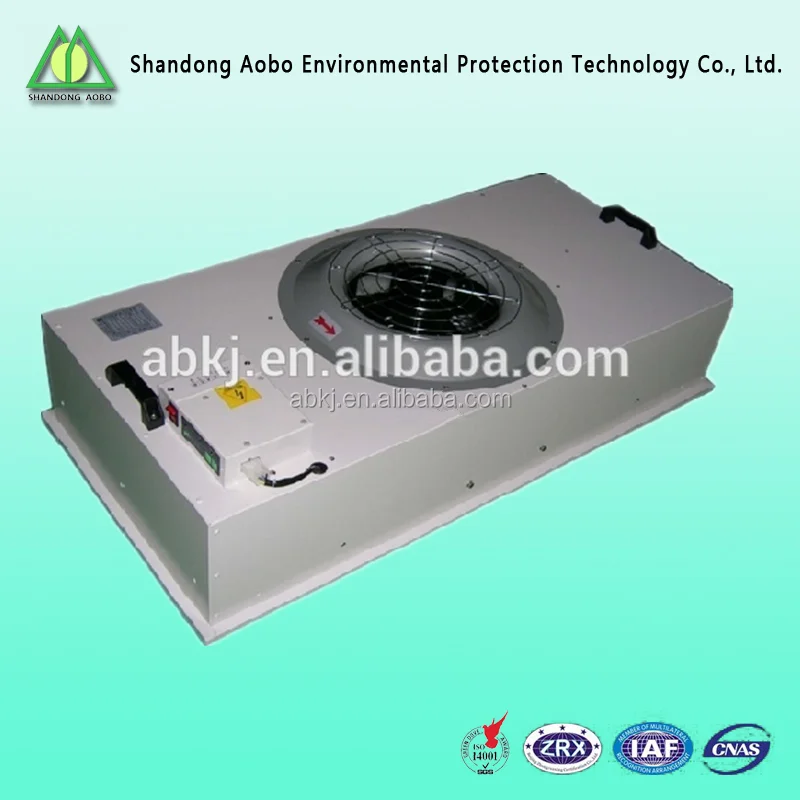

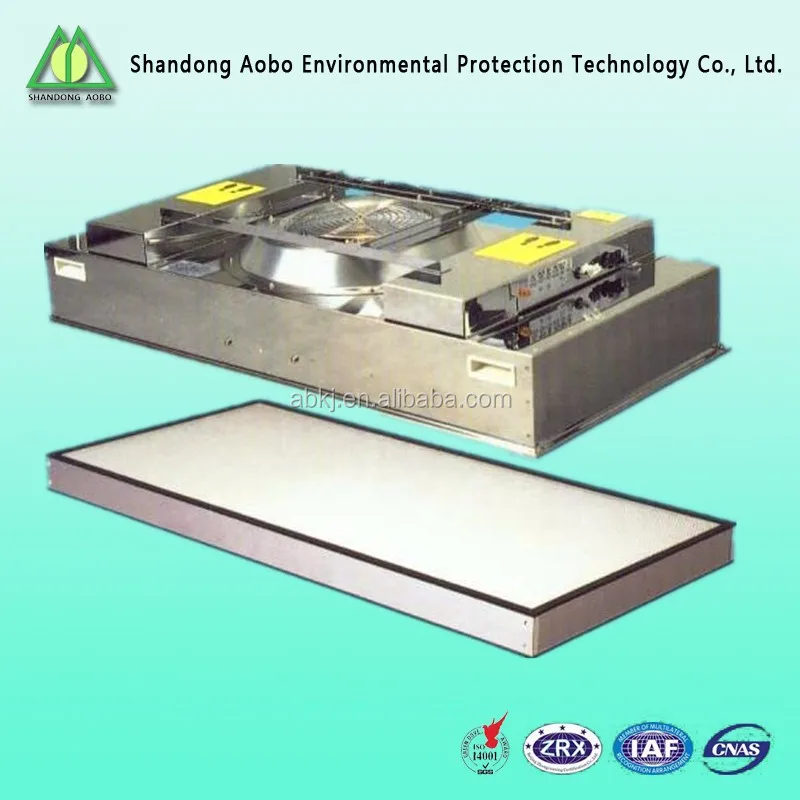

Fan filter unit (FFU) is air cleaning equipment to supply purified air to the clean room for manufacturing semiconductor, liquid crystal, etc. The installation space is the system ceiling grid. For a large clean room, the number of required FFU is from several hundreds to several thousands.

Concept of FFU development:

1. To reduce running cost by saving energy;

2. To reduce construction cost and term by thin, light and compact structure;

3. To reduce initial cost by total design of clean room including noise spec. etc;

4. We development FFU units basing upon the above concept to meet all the requirements for constructing, operating and maintaining clean rooms.

Advantage of clean room with FFU:

1. The construction period can be shortened;

2. The degree of cleanness from class 10 to class 1000 can be set and the degree of cleanness can be set at each area;

3. Because the back in the ceiling is a low-pressure, the potential of the leakage is low;

4. Bay method or through the wall method is possible by the arrangement of layout of FFU;

5. The velocity of the air flow can be set at each area;

6. Flexible increase or change of the clean room is possible by the arrangement of FFU.

Our Company

Shandong Aobo Environmental Protection Technology Co., Ltd., as a member unit of China Non-Woven Association and a member of China Bag Dust Association, is situated in Wucheng Economic Development Zone of Dezhou City, which was titled as "Reaching in all directions". Our company has a beautiful surrounding environment and convenient transportation. We are only three hours' drive away from Beijing and one hour away from Jinan. Our factory covers an area of 200 acres with office buildings, research rooms, product exhibition halls, dust filtering material workshops, air filter material workshop, and hard cotton thermal insulation material workshops. Our company has a world-class non-woven production line introduced from Germany, a needle-punched hot-air hot-melt production line and Japanese exclusive electromagnetic sewing bonding filter bag production lines. Our company has a professional filter & purification scientific research room together with a professional after-sales service team.

Shandong Aobo Environmental Protection Technology Co., Ltd. is professional in the research, development, and production of filter materials. Our company's main products are divided into two series, air filters and smoke dust filters. Main products include air filters and smoke dust filters. Specific products include initial effect, medium effect, and high effect as well as anti-static glass fiber, special fiber filters and filter bags as well as some coating composite materials with special function.

Shandong Aobo Environmental protection Technology Co., Ltd. is committed to the environment protection career in the motherland of China and would be actively involved to make a contribution to environment protection with friends from all over the world.
