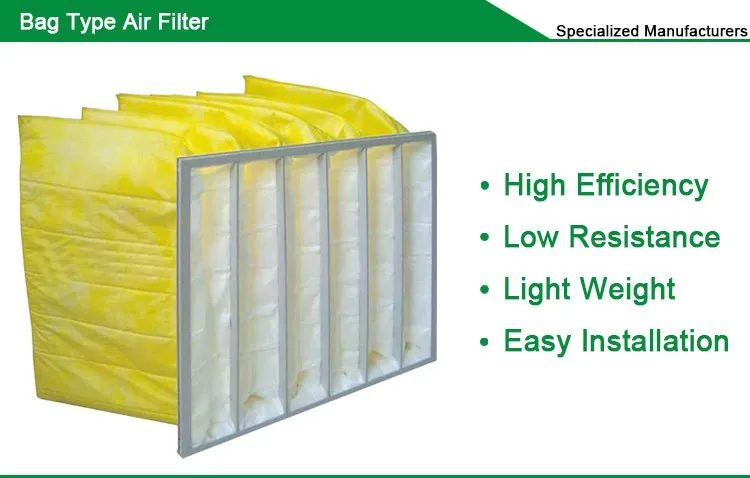

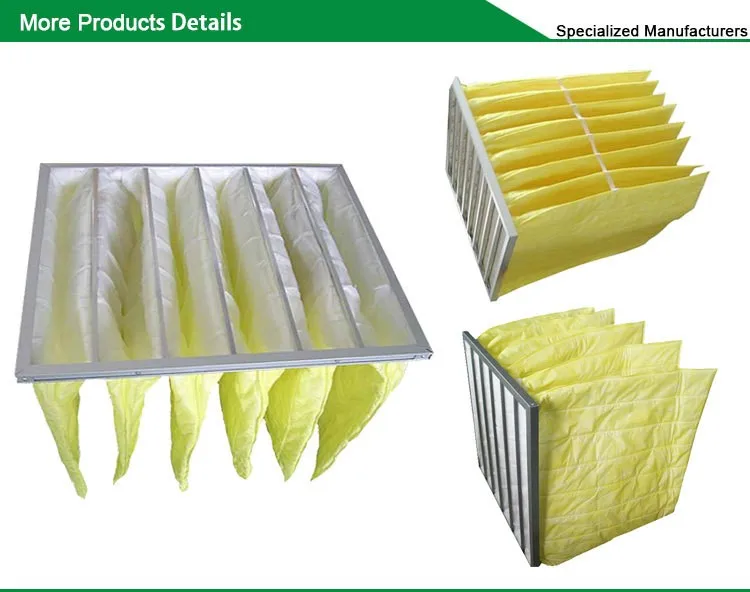

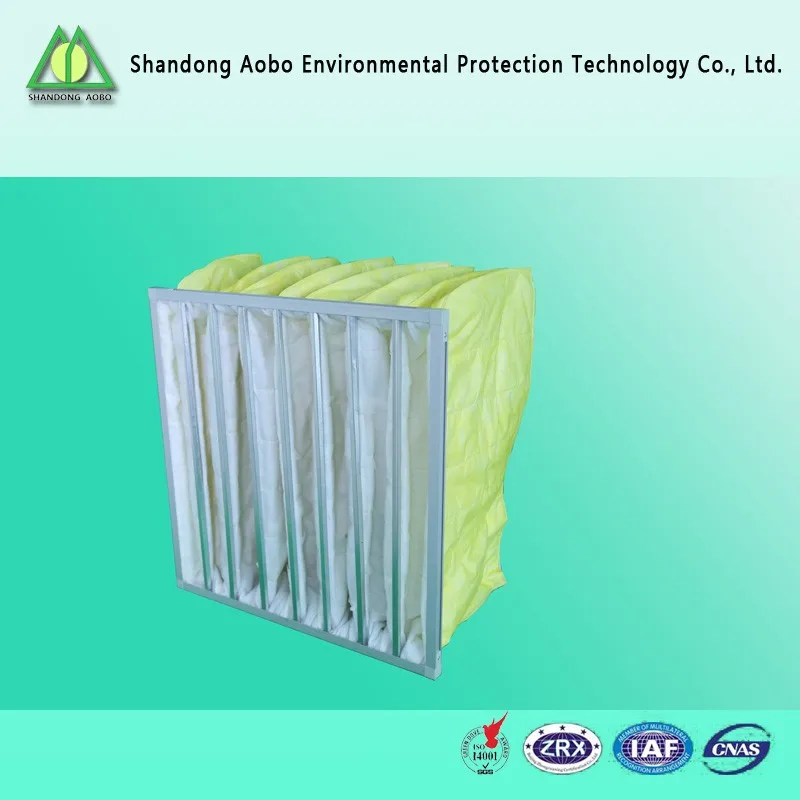

Air Conditioning System Bag Filter , Aluminum Frame F8 Pocket Air Filter

Packaging Details: Packaging Details: vacuum or compressed packaged in double polybag. The roll size is up to customer requirement
Packing exterior: Poly woven Bag or as customer's request
Shipping
1. FedEx/DHL/UPS/TNT for samples, Door-to-Door;
2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!
4. Delivery Time: 1-7 days for samples; 7-15 days for batch goods.
Delivery Detail: Shipped in 15 days after payment

                                                                                      hvac aprilaire air filter buy air filters

Features:
1.High dust contain capacity
2.Efficiency: 80~99%
3.Repeatable use after clean up
4.Filtering material:non-woven, synthetic fiber and glass fiber

Description:
It is a kind of deep loading high efficiency filter, suitable for permanent or impermanent airflow system.
It is constructed to V-type by multiple mini-pleat media, installed in galvanzied box or ABS plastic box.
Compared with common filters, it ideally enlarges the filter area, ensuring low media damage and low energy consumption to save cost in the present installation system.

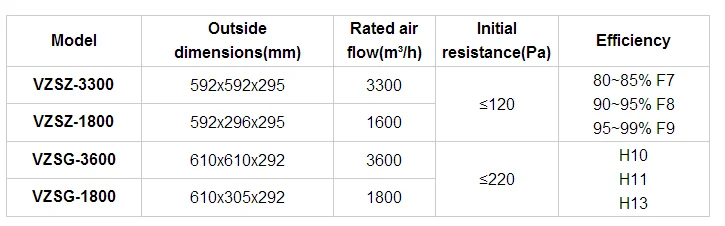

Standard size and Specification:

Features

Type: Multi pockets filter

Media: F5,F6,F7,F8,F9 Synthetic fiber
Frame: Galvanized steel/Aluminum/ABS
Recommended final pressure drop: 250-300Pa
Temperature: 90ºC maximum in continuous service

Applications
The main filter of ventilation system

Advantages
Multilayer composite melt-blown materials
Material is 40% deeper than normal product
"V" shaped filter bag, filter material is utilized 100% totally
All edges have seal processed
The integration design of the inside frame increase the overall structural strength and minimize the pressure drop
The metal edge of the inside frame rolled to be smoothly shape, make the maintenance operation more safely

Shandong Aobo Environmental Protection Technology Co., Ltd. was established in 2007 with a registered capital of 50.08 million yuan, covering 150 acres, the company has advanced production equipment and scientific equipment, the main products are high temperature resistant fiber layer filter materials, filter bags, filters, bags cage and large efficient dust removal equipment, is China Association of filtration and separation unit, China's environmental protection industry backbone enterprises.

The company's existing production and R & D center construction area of 100,000 square meters, equipped with advanced detection equipment more than 30 sets. And with the Shandong Academy of Sciences Institute of New Materials, Donghua University and the National Testing Center of Northeastern University media to establish a science and technology partnership, to become co graduate workstation. The company's technology center in 2011 by the Shandong Provincial Science and Technology Department approved the construction of a "baghouse Shandong Province Engineering Research Center", in 2012 was named the Shandong Province Enterprise Technology Center. The company in 2013 was identified as provincial high-tech enterprises.

Up to now the company completed a total of four national scientific and technological innovation projects ("863", the Torch Program, a national new product plans, Innovation Fund), seven provincial innovation projects, municipal technical innovation projects more than 10, have been granted patents 15 items, including patents 4. Up to now the company involved in the preparation of national, trade and local standards made six, now existing air pollution emissions from Shandong Province is marked by the company involved in the preparation. Establishment of standards in the industry to effectively enhance the high ground, effectively gave birth to the market, to enhance the value of the products.

Rely on scientific and technological progress and constantly improve product quality, business models and constantly updated market share increased year by year, in waste incineration, iron and steel metallurgy related dust, coal-fired power plants continue to expand the scope of services involved in bag sales, manufacturing and service outsourcing equipment operators, BOT multiple channels of cooperation projects, and the success of Huaneng Power, Huadian Power International, China United Cement and other large enterprises.
