NDIR digital CO2 temperature sensor analog output sensor

NDIR digital CO2 temperature sensor analog output sensor

FOB Price:

US 99-283 / Piece

Min.Order Quantity:

1 Piece/Pieces

Supply Ability:

500 Piece/Pieces per Month

Port:

shenzhen / Hongkong

Place of Origin:

Guangdong, China (Mainland)

Payment Terms:

L/C,T/T,Credit card

Brand:

TEREN

Products Model:

CDTW/CDTD

Products Details
Company Profile

Quick Details

Brand Name: TEREN

Model Number: CDTW/CDTD

Place of Origin: Guangdong, China (Mainland)

Packaging & Delivery

Packaging Details: Retail package
Delivery Detail: Shipped in 14 days after payment

Specifications

Product Description

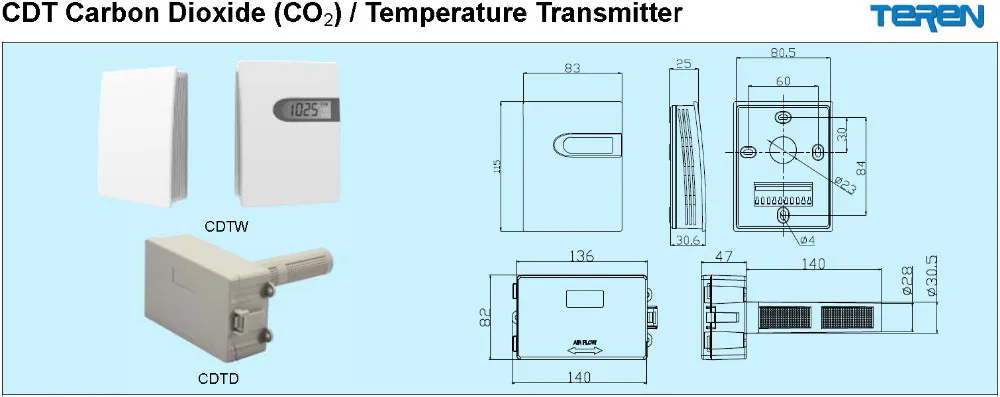

CDTW: Wall mount CO₂ & Temperature 2 in 1 Transmitter optional with LCD or without LCD

CDTD: Duct mount CO₂ & Temperature Transmitter

Applications & Features

CDT series carbon dioxide ( CO₂ ) & temperature transmitters are designed for monitoring & controlling indoor air quality and temperature
CDTW is suitable for wall mount and CDTD is suitable for duct mount
High performance NDIR digital sensor and circuit, ensure precise measurement and temperature compensation
Multiple optional RTD or thermistor sensors, compatible with a variety of control systems
Stable, reliable and fast response
15 years of CO₂ sensor life without maintenance
All electrical terminals are on the inside bottom, avoid any possible destroy to PCB when wiring
Digital technology applied, multiple outputs optional, over voltage and reverse polarity protection, high reliability and anti-interference capability
Large LCD with unit indicator(CDTW), display carbon dioxide(CO₂) and temperature alternatively (no temperature display for RTD or thermistor models)

Specifications

Carbon dioxide (CO₂)

Sensor: NDIR sensor, with ABC algorithm*

Sampling Method: diffusion

Accuracy: (40+3%MV) ppm

Response time: <10s (30cc/min, low airflow)

Drift: <±10ppm/year

Range: 0~2000ppm (measure range 400~2000ppm)

Output: 4~20mA, 0~10V, RS485/Modbus

Temperature

Sensor: Digital, RTD or thermistor, see models

Range: 0~50°C

Accuracy: see accuracy table

Output: 4~20mA, 0~10V, RS485/Modbus or RTD/thermistor

Power supply: 16~28VAC/16~35VDC

Load resistance: ≤500Ω (Current output),

≥2kΩ (Voltage output)

Display: Optional LCD display(CDTW)

Display resolution: 1ppm, 0.1°C

Working environment: 0~50°C, 5~95%RH (Non-condensing)

Temp. compensation: 0~50°C

Storage temperature: -20~60℃

Housing material: ABS+PC(CDTW), fireproof ABS(CDTD)

Protection: IP30 (CDTW), IP65 (CDTD)

Approval: CE

*ABC algorithm: Automatic Baseline Correction, it constantly keeps track of the sensor's lowest reading over a few days interval and slowly corrects for any long term drift detected as compared to the expected fresh air value of 400 ppm CO2.

Models

Model	CDTW CDTD				Wall mount CO₂/Temp. Transmitter Duct mount CO₂/Temp. Transmitter
CO₂ Output		0 C			4~20mA/0~10VDC RS485/Modbus
Temp. Output			1 3 4 5 6 7 9 A C		4~20mA / 0~10VDC PT1000,±0.2°C @25°C PT100,±0.2°C @25°C NTC20K, ±0.4°C @25°C Ni1000, ±0.4°C @25°C NTC10K-II, ±0.4°C @25°C NTC10K-III, ±0.4°C @25°C NTC10K-A, ±0.4°C @25°C RS485/Modbus
Display (CDTW)				0 1	N/A LCD

*1. All products are factory set to 0-10V as output default, and can be set to 4-20mA by jumper on the PCB
*2. See resistance table on page 1 of this catalog.

Accuracy table for temperature

Outputs	CDTW	CDTD
0~10V DC	<±0.5°C@10~40°C	<±0.5°C@10~40°C
4~2mA	<±1.0°C@10~40°C	<±0.5°C@10~40°C
RS485/Modbus	<±0.5°C@10~40°C	<±0.5°C@10~40°C
RTD/ thermistor	See models	See models

*When select RTD/ thermistor, total error will be 0.5°C more than the accuracy in the models.

Packaging & Shipping

Sample Order	Order	OEM Order
Three work days	2 weeks	3 weeks

Port

Shenzhen, Hong Kong

Company Information

Why choose us ?

♦ Specilizng in manufacturing products of HVAC for almost 10 years.

♦ Harsh process of production and strict testing system.

♦ Material could be traced.

♦ High quality with competitive price.

♦ Delivery in time.

♦ Reply in 24 hours.

Certifications

FAQ

Q1: How to get the latest price?

Tell me the models, quantity, and other special requirement.

Q2: Payment terms?

100% T/T in advance.

Q3: Delivery time?

One week.

Q4: Shippment?

DHL, UPS, TNT etc.

Q5: Is OEM/ODM available?

Yes, it's available.

Q6: Warranty?

18 months.
