Brand Name: SENPHUS
Model Number: SHDN-20W
Place of Origin: Jiangsu, China (Mainland)
Underfloor Heating cable:
Senphus underfloor heating Cable is a underground heating system that allows contractors to instantly make on-site adjustments to the floor heating coverage for any room including those with curves and angles. Senphus underground heating Cable can be also used to heat wet areas such as shower beds and benches or saunas.
Senphus underfloor heating Cable can be controlled using the same programmable and non-programmable thermostat options as Senphus heating Mats.
The difference between a underground heating cable and a regular power line is that the heating cable has higher resistance. This allows the cable to produce heat when the electron currents flow through it. The heat is then passed from the heating cable to the floor surface.
The underfloor heating cable has a relatively low temperature, but since it is distributed over a large area and the layer is very thin, the level of temperature is enough. 23-24 °C on the floor gives you about18-20 °C head high, this is usually referred to as a low temperature system. The opposite is called the high temperature system, where small areas with relatively high temperatureheats the room. One classic example are wall-mounted radiators.
The power of the underfloor heating depends on how tight the heating coil is looped together, also known as cc-dimensions. A small cc-distance between the loops results in a higher power output, and vice versa. What power you need depends on the flooring, the type of room you would like to warm up and the insulation used in your home. Generally, tiled floors requiresa slightly higher power, and wooden floors a slightly lower power.
Underfloor heating cable models:
Voltage (V) |
Specifications |
Power (W) |
Length (M) |
230V |
SHDN-20-10M(A) |
200 |
10 |
230V |
SHDN-20-15M(A) |
300 |
15 |
230V |
SHDN-20-25M(A) |
500 |
25 |
230V |
SHDN-20-30M(A) |
600 |
30 |
230V |
SHDN-20-35M(A) |
700 |
35 |
230V |
SHDN-20-40M(A) |
800 |
40 |
230V |
SHDN-20-45M(A) |
900 |
45 |
230V |
SHDN-20-60M(A) |
1200 |
60 |
230V |
SHDN-20-80M(A) |
1600 |
80 |
230V |
SHDN-20-90M(A) |
1800 |
90 |
230V |
SHDN-20-100M(A) |
2000 |
100 |
230V |
SHDN-20-120M(A) |
2400 |
120 |
230V |
SHDN-20-140M(A) |
2800 |
140 |
230V |
SHDN-20-160M(A) |
3200 |
160 |
230V |
SHDN-20-180M(A) |
3600 |
180 |
230V |
SHDN-20-200M(A) |
4000 |
200 |

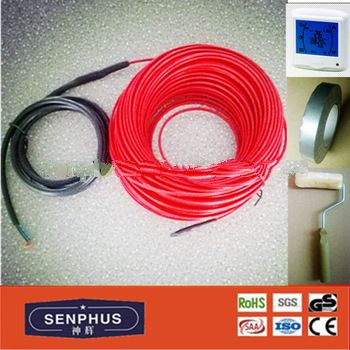

Underfloor heating cable
pictures, workroom, warehouse, etc.
underfloor heating cable
Jiangyin Senphus Electrical Material Co.,Ltd is the only heating product company in China, who has his own alloy smelting factory. We produce by ourselves the resistance alloy wires, which are used in heating cables, heating mats, drum heaters,etc. So that, we make sure the quality is high, price is competitive and delivery is fast.
Please don't hesitate to send us your requirements, we are here to offer you our best service!
