k thermocouple wire

FOB Price:

US 37-40 / Kilogram

Min.Order Quantity:

5 Kilogram/Kilograms

Supply Ability:

2000 Kilogram/Kilograms per Day

Port:

Shanghai

Place of Origin:

Jiangsu, China (Mainland)

Payment Terms:

L/C,T/T,Western Union,MoneyGram,paypal

Brand:

REOU

Products Model:

Thermocouple-K

Products Details
Company Profile

Quick Details

Brand Name: REOU

Model Number: Thermocouple-K

Place of Origin: Jiangsu, China (Mainland)

Packaging & Delivery

Packaging Details: carton
Delivery Detail: 10days

Specifications

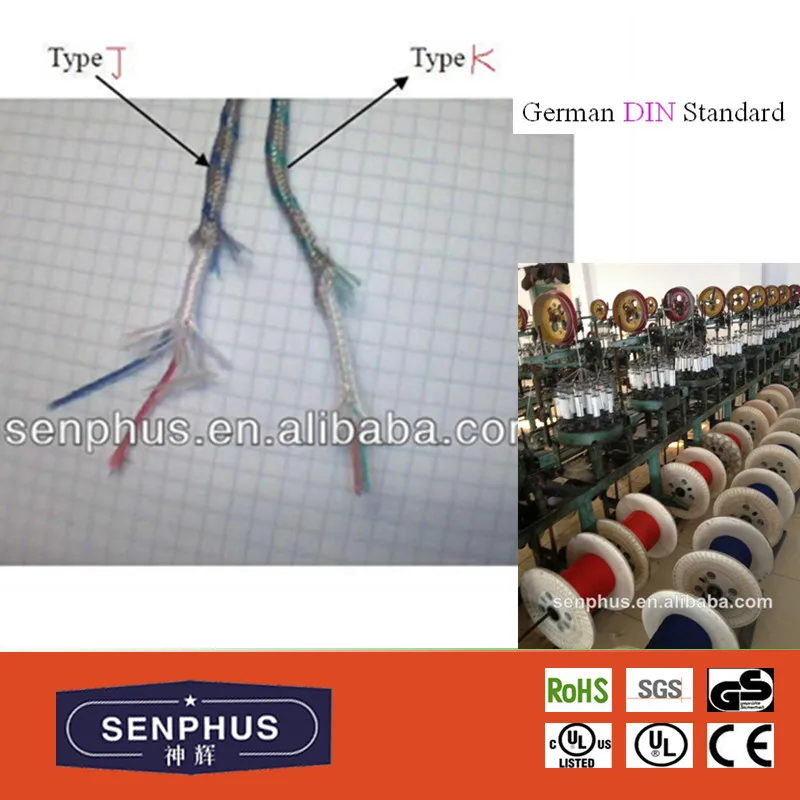

K thermocouple wire:

Jiangyin ChengXin Alloy Material Co.,Ltd offers a wide variety of Special Thermocouple wire. These wires are available in a multitude of insulating jackets as well as protective metal overbraids.

Insulation could be PVC, XLPE, Teflon, Silicone rubber, etc

Conductor wire could be solid or stranded.

The length could be customized. Besides, the negative and positive could be offered in pair or separated.

All depends on you.

Type K(NiCr-NiSi) thermocouple finds ther widest use in all base metal thermocouple above 500oC. Positive leg NiCr(KP) : Ni: about 90% Cr: about 10%

Negative leg NiSi(KN): Ni: about 97% Si: about 3%

Type K thermocouple has strong resistance to oxidation than other base metal thermocouples. It hs high EMF against Platinum 67, excelletn temperature accuracy, sensitivity and stability, with a low cost. It is recommended for oxidizing orinert atmospheres, but cannot be used directly in the following cases:

1, alternatively oxidizin and reducing atmosphere

2, atmosphere with sulphur gases

3, long time in vacuum

4, low oxidizing atmosphere such as hydrogen and carbon monoxide atmosphere

Special Limits of Error for Thermocouple Accuracy*

Thermocouple Type	Temperature Range		Special Limits of Error**
Thermocouple Type	°C	°F	Special Limits of Error**
T	0 to 350	(32 to 662)	±0.5°C or 0.4%
J	0 to 750	(32 to 1382)	±1.1°C or 0.4%
E	0 to 900	(32 to 1652)	±1.0°C or 0.4%
K	0 to 1250	(32 to 2282)	±1.1°C or 0.4%
