Brand Name: SENPHUS
Model Number: AFMat-140-0.5~12M2
Place of Origin: Jiangsu, China (Mainland)

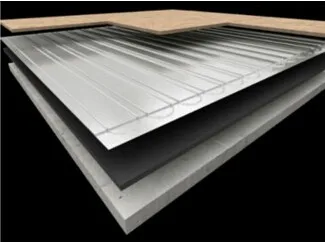

aluminium laminate floor heated mat:
Senphus Aluminium foil heaters adopt twin conductor FEP heating wires as the heating elements.
It is ultra thinL 0.95~1.0mm, so if you use this heating mat.
The Aluminium heater System is designed for under floor heating purposes only. Be sure that the floor is not penetrated by nails, screws, or similar devices that can cause damage on first installation or during subsequent floor repairs in the future.
If the Aluminium heater System is damaged, it must be replaced. Do not attempt to splice or repair any part of the system
Installing Aluminium heater mats is very easy to do. Aluminium heater warming mat Systems combine the highest comfort levels with maximum energy efficiency. It’s a proven technology that's safe, reliable and energy efficient.
230V |
Heated Area |
Mat Dimensions |
Watts (140W/m2) |
Amps |
ohms |
|||
Catalog Number |
m2 |
sq.ft. |
M*m |
in.*ft. |
||||
AFMAT/140-140-1.0 |
1.0 |
10.8 |
0.5*2 |
20*6.6 |
140 |
0.61 |
377.9 |
|
AFMAT/140-210-1.5 |
1.5 |
16.1 |
0.5*3 |
20*9.9 |
210 |
0.91 |
251.9 |
|
AFMAT/140-280-2.0 |
2.0 |
21.5 |
0.5*4 |
20*13.1 |
280 |
1.22 |
188.9 |
|
AFMAT/140-350-2.5 |
2.5 |
26.9 |
0.5*5 |
20*16.4 |
350 |
1.52 |
151.1 |
|
AFMAT/140-420-3.0 |
3.0 |
32.3 |
0.5*6 |
20*19.7 |
420 |
1.83 |
126.0 |
|
AFMAT/140-490-3.5 |
3.5 |
37.7 |
0.5*7 |
20*23.0 |
490 |
2.13 |
108.0 |
|
AFMAT/140-560-4.0 |
4.0 |
43.1 |
0.5*8 |
20*26.3 |
560 |
2.43 |
94.5 |
|
AFMAT/140-630-4.5 |
4.5 |
48.4 |
0.5*9 |
20*29.5 |
630 |
2.74 |
84.0 |
|
AFMAT/140-700-5.0 |
5.0 |
53.8 |
0.5*10 |
20*32.8 |
700 |
3.04 |
75.6 |
|
AFMAT/140-840-6.0 |
6.0 |
64.6 |
0.5*12 |
20*39.4 |
840 |
3.65 |
63.0 |
|
AFMAT/140-980-7.0 |
7.0 |
75.3 |
0.5*14 |
20*45.9 |
980 |
4.26 |
54.0 |
|
AFMAT/140-1120-8.0 |
8.0 |
86.1 |
0.5*16 |
20*52.5 |
1120 |
4.87 |
47.2 |
|
AFMAT/140-1260-9.0 |
9.0 |
96.9 |
0.5*18 |
20*59.1 |
1260 |
5.48 |
42.0 |
|
AFMAT/140-1400-10 |
10 |
107.6 |
0.5*20 |
20*65.6 |
1400 |
6.09 |
37.8 |
|
AFMAT/140-1540-11 |
11 |
118.4 |
0.5*22 |
20*72.2 |
1540 |
6.70 |
34.4 |
|
AFMAT/140-1680-12 |
12 |
129.2 |
0.5*24 |
20*78.8 |
1680 |
7.30 |
31.5 |
|
All Aluminium heater Systems are covered by a 15-year warranty, energy efficient, and can be controlled using a variety of programmable and non-programmable thermostat options.
Aluminium heater Systems can also be installed underneath laminate and engineered wood floors ensuring you the pleasure of barefoot comfort in any room in your home.
Aluminium heater Systems can be enjoyed in any room where a homeowner is planning to install tile, stone, marble, laminate or engineered wood floors.
Note: Voltage, Power, Square meter ,cable color ,mesh color , with glue or without adhesive , text on adhesive tape or text on the cable, ect, can be designed according to customer's requirement. eg: 110V-240V , 100w/m2 - 200w/m2 , 1sqm - 15sqm ect .
If you are looking for a professional under floor heating manufacturer, you could add my whatsapp: 0086 13961126504 or wechat: zp710816564 or Skype: wahahazp, or call me at 86-13961126504 or email : alloycable at senphus.com.

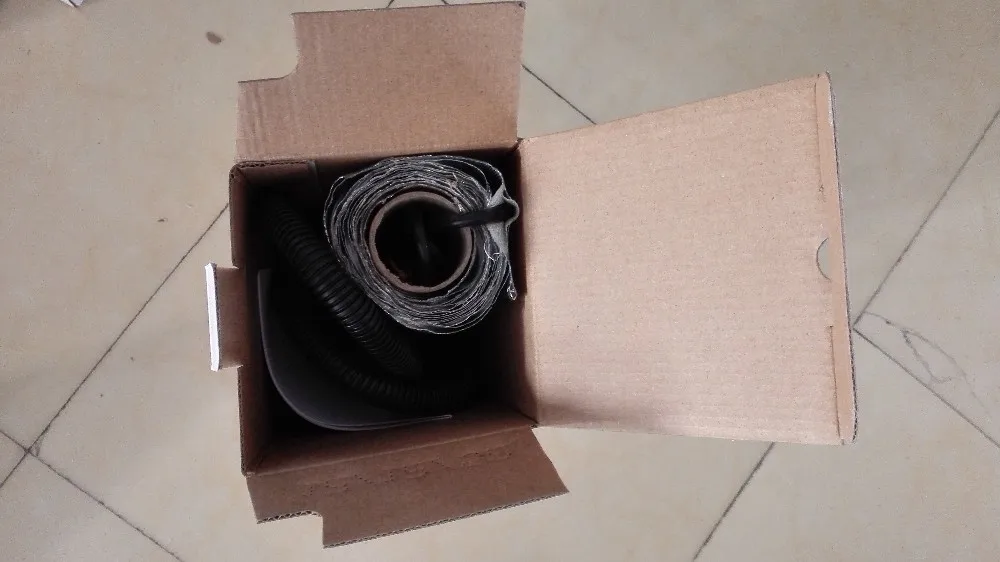

Floor heating system warm floor package :
One of warehouse :
Certificates:
