Brand Name: SENPHUS
Model Number: SHDN-160
Place of Origin: Jiangsu, China (Mainland)
radiant heating system:
Senphus is a professional producer of under floor heating system. We are the only manufacturer integrating heating cable with electrical heating alloys smelting in China.
You always could find the proper heating system in our company, no matter your voltage, power, and model needs are so special.

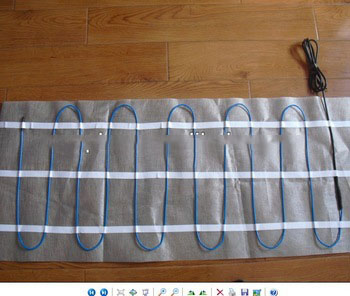

Twin conductor cable underfloor heating mat pictures(we could make many kinds of heating mat, and you could customize the mat color, cable color, cable structure, like cable insulation, jacket, etc).
underfloor heating mat kits voltage: 110~240V, you choose according to your voltage
underfloor heating mat kits power: 90~200w/m2, you choose according to your actual need
underfloor heating mat kits models:0.5~15m2, you choose on the basis of your rooms areas.
Generally, small heating mats are for bathroom and kitchen or storage room, etc small rooms, while, big heating mats are for bed rooms, living rooms or hall, etc.
SENPHUS floor heater mats are the easiest and fastest to install, and are best suited for rectangular-shaped areas.
The heating cable is pre-spaced on the mesh at 9cm, offering optimal heat distribution and allowing the heating system to output as much as 41 BTU's per square foot of floor.
All SENPHUS floor heater mats feature adhesive fiber-reinforced mesh backing which can be cut and manipulated, and which allows to lay the mat flat onto the subfloor surface and keep it flat throughout the installation process.
It is easy to reposition the mat as needed without the need for constant re-stapling and re-taping. With radiant heating cable at only 3.5mm thick, the SENPHUS floor heater mats will not significantly raise the finished floors and are perfect for electric radiant heating applications both in new construction and retrofits.
Simply lay out and secure the mats, install the finished floor and controls, and enjoy the comfort. SENPHUS radiant floor heating mats come in sizes ranging from 0.5 sq. m to 15 sq.m.
SENPHUS under floor heating mats come in sizes ranging from 0.5 sq. m to 15 sq.m.
Floor heating standard specifications are as follows, if you need other models, like 0.7m2, 1.2m2, etc, please feel free to let us know. The power could be customized, too, like 90w/m2, 100w/m2, 130w/m2,....200w/m2.
Type |
voltage |
Rated power |
Resistance @20oC+10/-5% |
Mat size |
Length |
V |
W |
Ω |
m |
m |
|
SHDN-160-1.0M2 |
220 |
160 |
302.5 |
0.5X2.0 |
11.1 |
SHDN-160-1.5M2 |
220 |
240 |
201.7 |
0.5X3.0 |
16.65 |
SHDN-160-2.0M2 |
220 |
320 |
151.3 |
0.5X4.0 |
22.2 |
SHDN-160-2.5M2 |
220 |
400 |
121.0 |
0.5X5.0 |
27.75 |
SHDN-160-3.0M2 |
220 |
480 |
100.8 |
0.5X6.0 |
33.3 |
SHDN-160-3.5M2 |
220 |
560 |
86.4 |
0.5X7.0 |
38.85 |
SHDN-160-4.0M2 |
220 |
640 |
75.6 |
0.5X8.0 |
44.4 |
SHDN-160-4.5M2 |
220 |
720 |
67.2 |
0.5X9.0 |
49.95 |
SHDN-160-5.0M2 |
220 |
800 |
60.5 |
0.5X10.0 |
55.5 |
SHDN-160-6.0M2 |
220 |
960 |
50.4 |
0.5X12.0 |
66.6 |
SHDN-160-7.0M2 |
220 |
1120 |
43.2 |
0.5X14.0 |
77.7 |
SHDN-160-8.0M2 |
220 |
1280 |
37.8 |
0.5X16.0 |
88.8 |
SHDN-160-9.0M2 |
220 |
1440 |
33.6 |
0.5X18.0 |
99.9 |
SHDN-160-10M2 |
220 |
1600 |
30.3 |
0.5X20.0 |
111 |
SHDN-160-12.0M2 |
220 |
1920 |
25.2 |
0.5X24.0 |
133.2 |
floor heater pictures and package, workroom
Under floor heating mat certificates:
