silicone rubber hot wire or cable

FOB Price:

US 12-100 / Piece

Min.Order Quantity:

1 Piece/Pieces

Supply Ability:

1500 Piece/Pieces per Week

Port:

shanghai

Place of Origin:

Jiangsu, China (Mainland)

Payment Terms:

L/C,T/T,Western Union,paypal

Brand:

senphus

Products Model:

SHHM150

Products Details
Company Profile

Quick Details

Brand Name: senphus

Model Number: SHHM150

Place of Origin: Jiangsu, China (Mainland)
COLOR: RED, YELLOW, BLUE, GREEN
KEY WORDS: HEATING MATS OF CE
Type: Floor Heating Parts
Floor Heating Part Type: Floor Heating Mats

Packaging & Delivery

Packaging Details: carton, color box
Delivery Detail: 10 days

Specifications

silicone rubber hot wire or cable
1, all kinds of silicone heating cable meet different application
2.ul certificate

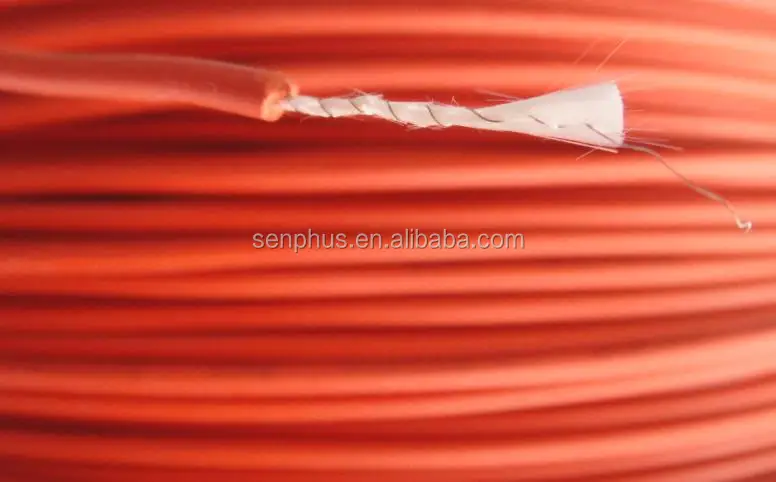

Silicone rubber hot wire or cable

Type:UL3323

Rated Temperature:200°C

Rated Voltage:300V

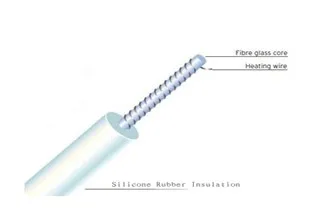

Structure

Conductor:single alloy wire or resistance wind the

Fiber glass

Senphus Silicone Rubber Heating Cable Application

This product have insulativity, flexibility and thermal conductivity. It is widely used in Defrost frozen machine, Health preservation, anti-freeze, heating, such as: electric heating blankets, Electrothermal cushion, pet mat, jade mattress etc

Senphus Silicone Rubber Heating Cable Technique data

item		property	descripe
Silicone insulation	Tensile strength	≥5Mpa	UL1581
	Elongation	≥ 100%
	The miminum thickness	≥ 0.4mm	UL758
wire	Heat and shape changing test	≤ 30%	232°C * 1 h
	spark test	No breakdown	3.0KV/0.15sec;
	resistance	+10%/-5%
Resistance value range		1--10000 ohm/m
Total out diameter		2.5+/-0.15mm	optional
Packing length		500m/rolls

Senphus silicone rubber heating cable other specification

Voltage	Ohm/m	Color	Diameter
220V	15	orange	3.5mm
220V	16	orange	3.5mm
220V	18	orange	3.5mm
220V	20	orange	3.5mm
220V	25	orange	3.5mm
220V	30	orange	3.5mm

item		property	descripe
Silicone insulation	Tensile strength	≥5Mpa	UL1581
	Elongation	≥ 100%
	The miminum thickness	≥ 0.4mm	UL758
wire	Heat and shape changing test	≤ 30%	232°C * 1 h
	spark test	No breakdown	3.0KV/0.15sec;
	resistance	+10%/-5%
Resistance value range		1--10000 ohm/m
Total out diameter		2.5+/-0.15mm	optional
Packing length		500m/rolls
