Electrical Floor Heating Mats 230V 160W VDE Approved

Senphu Electrical Floor Heating Mats are designed for use under all tile and stone floor coverings. Suitable for all room's in your home or office including wet rooms this underfloor heating is powerful, tough and durable and can be used as a primary heat source assuming sufficient coverage and insulation is installed.

Electrical Floor Heating Mats  Specification

Senphus underfloor tile heating mats Kits come with :

160w/m² Dual Core Underfloor Heating Mat System.

Digital Programmable air and floor thermostat.

Floor Probe. included with Thermostat

High adhesion fixing tape.

Acrylic floor primer.

Primer applicator.

Lifetime warranty on heating system.

Full fitting instructions.

Technical Free Phone Help Line 86-13401362193

FREE next working day delivery service

Heating System.

• Dual Core Heating System.
• Double insulated & earthed heating element.
• Ultra thin & durable heating element (Only 3mm deep)
• Easy and quick to lay

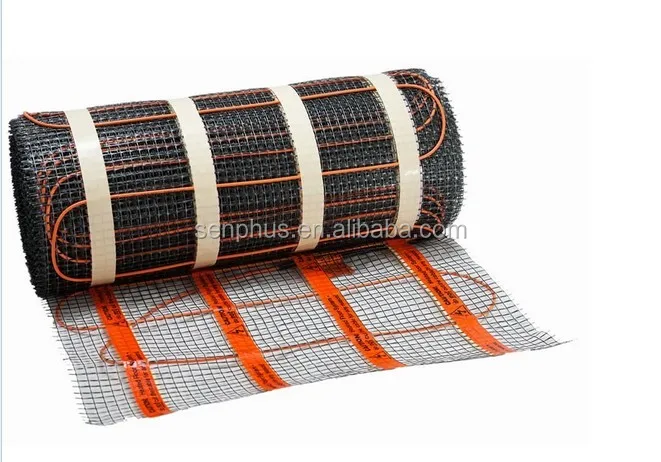

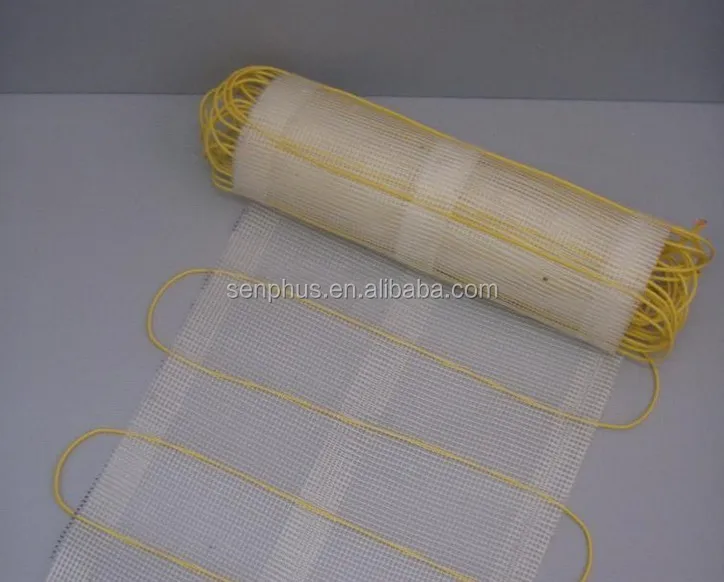

• Pre-spaced wire attached onto tough fibreglass mesh backing
• Life Time warranty

Technical Specification

• Operating Voltage 230/240V 50Hz
• Output Rating as per above table.
• Double insulated, fully sheathed and earthed elements.
• Mat width, 0.5m
• 3m long cold / connection tails.

Thermostat

• 4 Timed Events x 7 day programmable cycle.
• Holiday and economy power settings.
• Manual over ride facility.
• Air and Floor temperature sensors.
• Blue LED back light for easy viewing.
• Low Profile Design.
• Fits standard 1G electrical wall box.
• 1 years manufacturer's warranty.

Technical Specifications

• Supply Voltage 230/240v
• 16amp / 3600watt max load*
• Temperature Range 5oc - 45oc
• Extendable 3-15m floor probe.

Rest of Pack.

• Extendable 3-15m floor probe for accurate floor temperature regulation.
• High adhesion fixing tape for holding heating firmly in place.
• Acrylic floor primer insure a good contact between sub floor and tile adhesive
• Applicator to apply the acrylic floor primer.
• Lifetime heating system warranty
• Free next working day delivery will all orders
• Full fitting instructions and free technical help line

Senphus underfloor heating cables have been specifically designed to be used under tiles and natural stone floors. They are all capable of being used as the primary heat source, (No other heating required). A minimum of 70% floor coverage is recommended (@ 150w/m² or above) for use as a primary heat source but in some instances a larger area or wattage may be required.

Our kits are easy to lay and do not increase the floor height as the heating cables are only 3mm deep and so are easily buried in the tile adhesive. The cables are simply fixed down using the fixing tape at the desired spacing's and tiled over in the normal way. We also offer a Technical Free Phone Helpline 86-13401362193 For any questions or help you may have/require.

It is not recommended to install underfloor heating over un insulated concrete sub floor areas without the addition of a 6mm+ insulation layer first being installed, (please see our ali store for suitable insulations). This is because un insulated concrete greatly reduces the response time and overall efficiency of any underfloor heating if installed without the additional insulation layer.

Senphus offers other underfloor heating options in our Ali shop for almost any room size and floor covering. Please feel free to contact ourselves if you have a specific requirement.

There is no specialist labour or tools required to lay and fit Living Heat kits. The only qualified person required is an electrician to make the final connection to the mains power.

If you require assistance please do not hesitate to contact ourselves. 86-13401362193

To work out what size kit you require please follow the next 3 steps.

1. Measure your total floor area that you wish to be heated. (Less any immovable objects such as a bath or kitchen units that you do not want the heating to be fitted under).

2. Take off a 10cm boarder around the floor area to be heated as the heating elements should not be run up tight against any walls.

3. This measurement should then be rounded down to the nearest 0.5m, (ie 5.27m2 floor size would be rounded down to a 5m² kit size). The measurement can be rounded down to the nearest 1m on larger room areas.

Fitting Guide.

1. Make sure the floor area is level, clean and free of any dust and debris. If laying tiles the floor should be made suitable for laying tiles before the heating or insulation boards (if required)are laid.

2. To fit the heating cable the heated floor area must be first marked out with clear markings at even centres at opposite ends of the room / heated area, (the distance between markings will depend upon the wattage required per m2 and length of cable to be laid). To mark the floor the installer should first work out what wattage per m2 is required and thus what length or wattage cable is required. The floor should then be marked to show the desired spacing between cable runs to achieve the desired wattage per m² over the floor area.

3. Starting from the closest point to the thermostat / power source run the cable back and forward between the floor markings taping over the cable at the start and end of each run to fix it in place so the tiling process can be completed. If required additional tape can be used or the full length of the cable cab be taped over to maintain even spacing and fix it the cable in place.
