Floor Heating Parts Type infrared floor heating

Product Description

Senphus Infrared Floor Heating is a thin heating mat specifically designed to be installed within a tile adhesive layer. It evenly warms the floor surface eliminating the cold chill associated with hard floor surfaces. It is ideal for tiles on a concrete floor or parquet on concrete, and can be installed beneath other surfaces such as laminated floors and vinyl.

For Senphus Electric Underfloor Heating Mats, except the above appearance, we can accept customized.

For Electric Underfloor Heating Mats tape print letters, the moq is 5000 square meter, some competitors said they can accept printing letters on tape, no moq limit. The benefit comes, after all, from a price one has paid, you know it. the price is different according to your detail request and quantity. But the price are always the best for your different quantity and request.

Fast Installation

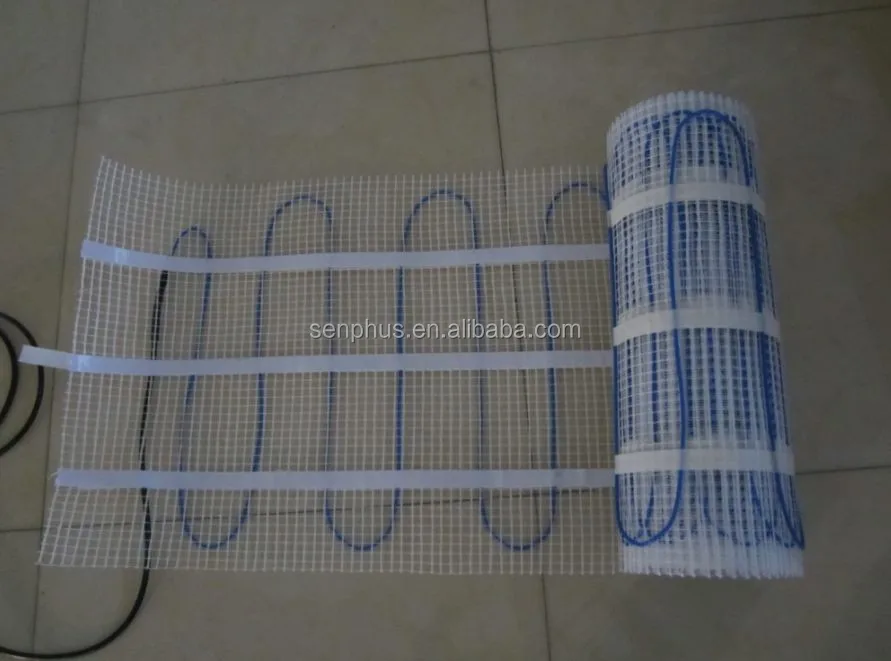

Heating mats are made from a self-adhesive mesh scrim with a heating cable attached. The mat design enables fast installation and an even heat distribution across the whole floor area.

Sizes

Mats are 500mm wide. They come complete with a 3m cold tail connection and are available in a wide range of lengths, from 1 to 24m, and two power output densities.

The 150W/square metre mat is suitable for internal applications including kitchens, bathrooms and living areas.
The 200W/square metre mat is recommended for conservatories or areas prone to high heat losses.

Floor Types

Heating mats can be installed on top of either suspended timber floors, or solid concrete floors, enabling installation in all room types. Ideal floor coverings for use with this system include ceramic, stone, slate, porcelain, marble, limestone and terracotta.

Temperature Control

All electically heated floors must be controlled by a thermostat connected to a floor temperature probe. By directly measuring the floor temperature, the thermostat ensures that the floor tempertaure can not rise beyond the specified limit.

Important Installation Notes

Insulation must always be installed below the heating mat to reduce heat losses into the sub-floor. This improves performance and reduces running costs.

Electric heating systems should be installed, tested and commissioned strictly in accordance with the manufacturer's instructions and by a qualified installer. It is advised to test the cable before, during and after installation. The use of an RCD breaker is recommended.

Electric Underfloor heating mats specification

Type	Voltage	Rated power	Resistance @20^oC+10/-5%	Cable length	Mat size
Type	V	W	Ω	m	square meter
SHDN-150-1.0M2	230	150	352.66	12.5	0.5*2
SHDN-150-1.5M2	230	225	235.11	18.8	0.5*3
SHDN-150-2.0M2	230	300	176.33	25	0.5*4
SHDN-150-2.5M2	230	375	141.06	31.3	0.5X5
SHDN-150-3.0M2	230	450	117.55	37.5	0.5*6
SHDN-150-3.5M2	230	525	100.76	43.8	0.5X7
SHDN-150-4.0M2	230	600	88.16	50	0.5*8
SHDN-150-4.5M2	230	675	78.37	62.5	0.5X9
SHDN-150-5.0M2	230	750	70.53	62.5	0.5*10
SHDN-150-6.0M2	230	900	58.77	75	0.5*12
SHDN-150-7.0M2	230	1050	50.38	87.5	0.5X14
SHDN-150-8.0M2	230	1200	44.08	100	0.5*16
SHDN-150-9.0M2	230	1350	39.18	112	0.5X18
SHDN-150-10.0M2	230	1500	35.26	125	0.5X20
SHDN-150-12.0M2	230	1800	29.38	150	0.5X24

Electric Underfloor heating mats thermostat show
