Hot selling tungsten rhenium disposable fast thermocouple with high quality

Hot selling tungsten rhenium disposable fast thermocouple with high quality

FOB Price:

US 1.5-2 / Piece

Min.Order Quantity:

1 Piece/Pieces

Supply Ability:

3000 Piece/Pieces per Week

Port:

Shanghai

Place of Origin:

Jiangsu, China (Mainland)

Payment Terms:

L/C,T/T,Western Union,Escrow

Brand:

Laiyuan

Products Model:

LY-TS-15001

Products Details
Company Profile

Quick Details

Brand Name: Laiyuan

Model Number: LY-TS-15001

Place of Origin: Jiangsu, China (Mainland)

Packaging & Delivery

Packaging Details: standard package for Hot selling tungsten rhenium disposable fast thermocouple with high quality
Delivery Detail: 7 working days for

Specifications

Product Description

Hot selling tungsten rhenium disposable fast thermocouple with high quality

The fast response thermocouple is uesd for measuring the temperature of molten steel and high temperature molten metal. It is disposable expendable thermocouple.

The characteristics of this thermocouple is high accuracy,rapid reaction,light structure and easy to use.

Name	Type	Model	The best	Max	Accuracy	Wire diameter(mm)
PtRh10%/Pt	S	KS-602/604	1500-1700	1750℃	≤±5℃	0.05
PtRh13%/Pt	R	KR-602/604	1400-1600	1750℃	≤±5℃	0.05
PtRh30%/PtRh6%	B	KB-602/604	1400-1600	1800℃	≤±5℃	0.05
WRe5%-WRe26%	C	KC(KW5/26)602/604	1500-1700	1800℃	≤±7℃	0.08
WRe3%-WRe25%	D	KD(KW3/25)602/604	1500-1700	1800℃	≤±7℃	0.08

The length of the protecting tube:300mm,500mm,600mm,800mm,900mm,1000mm,1200mm etc ,length can also be customized by customers.

Type	Model
602(Round bottom)	KX-KR/S/B/W-602
604(Triangle bottom)	KX-KR/S/B/W-604

Method of

Hot selling tungsten rhenium disposable fast thermocouple with high quality

1.According to the measured object and range, selecting the appropriate protection tube length and suitable temperature measuring gun.

2.Put the fast thermocouple on the temperature measuring gun, and the secondary instrument pointer (or digital) back to zero, this shows contacts good, can be measured.
3.Fast thermocouple insertion depth of the molten steel with 300-400 - mm, don't test to furnace wall or dreg ,do fast, steady, accurate, when secondary instrument to get the results, should immediately carry guns, fast thermocouple immersion time in molten steel must not exceed 5 seconds, otherwise easy to burn temperature measuring gun.
4,Raised temperature measuring gun from the furnace, take the used thermocouple down, and install a new one, pause for a few minutes, prepare the next measurement. Don't even measure even split, otherwise cause temperature fluctuations.

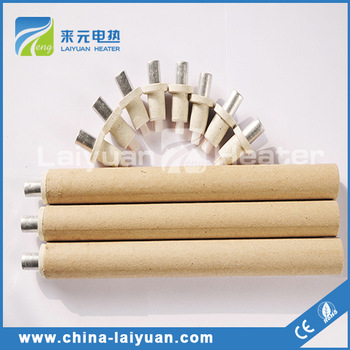

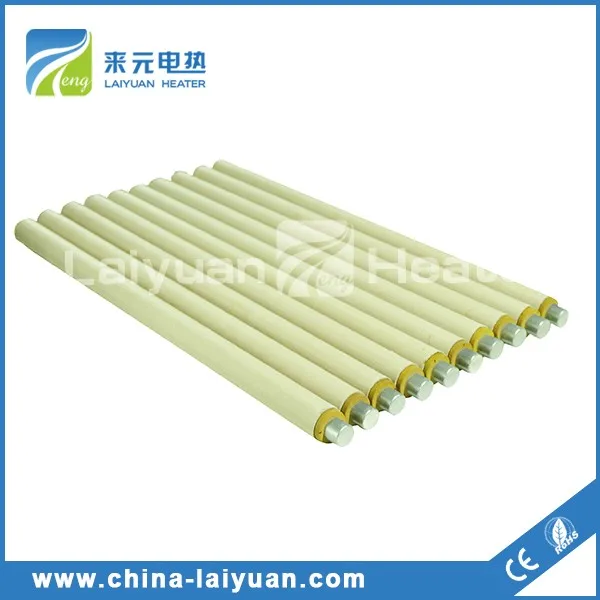

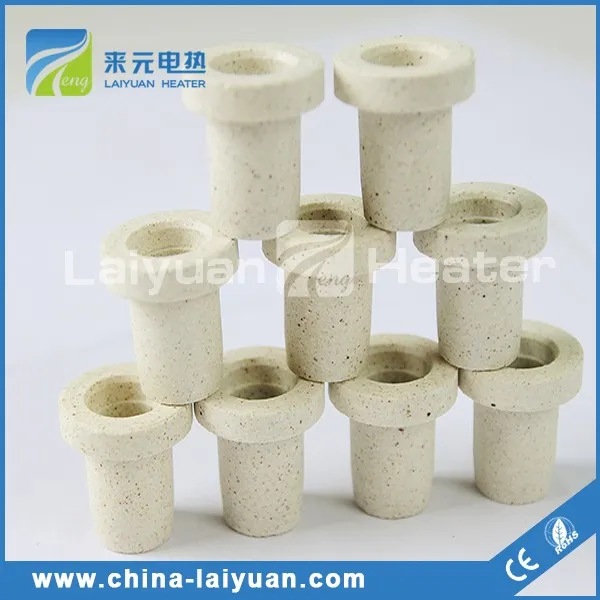

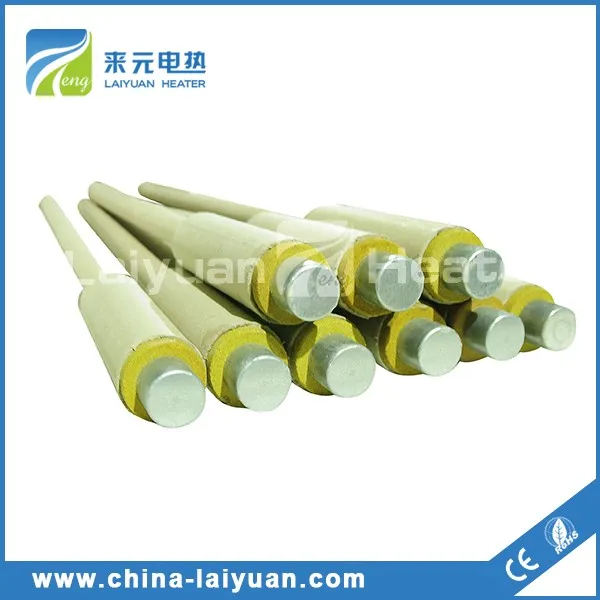

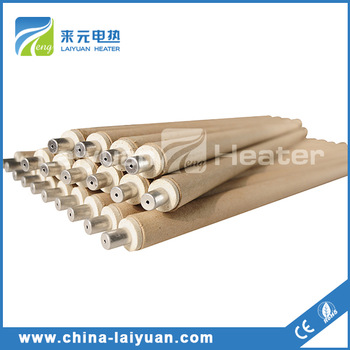

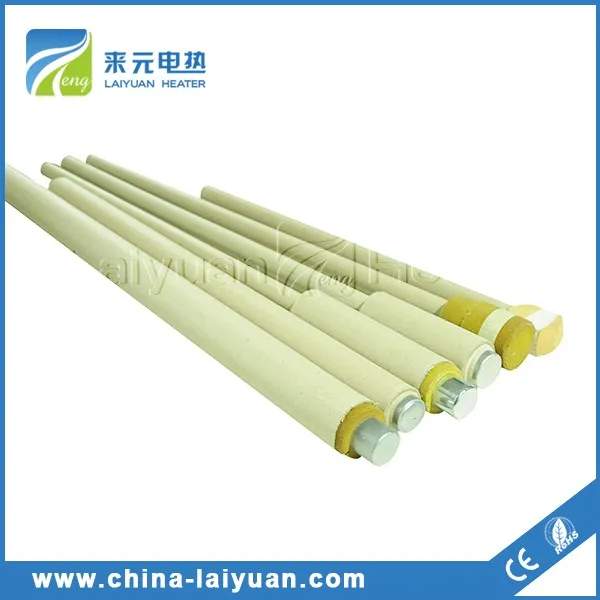

Product Photos

Yancheng Laiyuan Electric Equipment Co.,Ltd. lies in beautiful city of Yancheng, Jiangsu China. We specialize in electric heaters, including Heating Resistance Wires, Band heater, Bobbin Heater, Heating Part for Hot Air gun and other heating elements.

Laiyuan is by virtue of Electric Technology has a wealth of production experience , Professional Technical Force, a strong R&D department and a dedicated team , to adapt to the market economy competition and technology requirements more than 10 years.

Yancheng Laiyuan has won praises for rapid development, scientific management method and perfect sales service. We possess a wonderful fame both at home and abroad. We are known for our innovative products and are continually introducing new and exciting products. Continual improvement is a by-word within our company and we are always looking for ways of improving our existing products in addition to developing new ranges.

'QUALITY WITHOUT COMPROMISE', Laiyuan has always been the product quality as enterprise life, therefore we always have effort, and ultimately create the perfect Laiyuan brand .
