CN ceramic band heater with terminal connectors for plastic machine CN ceramic band heater with terminal connectors for plastic machine CN ceramic band heater with terminal connectors for plastic machine

CN ceramic band heater with terminal connectors for plastic machine

Price:
US 4.5-80 / Piece
Min.Order Quantity:
1 Piece/Pieces
Supply Ability:
1000 Piece/Pieces per Week
Port:
Shanghai
Place of Origin:
Jiangsu, China (Mainland)
Payment Terms:
L/C,T/T,Western Union,MoneyGram,Escrow
Brand:
Laiyuan
Products Model:
LY-CBH-15001
Share:
  • Products Details
  • Company Profile

Quick Details

  • Brand Name: Laiyuan

    Model Number: LY-CBH-15001

    Place of Origin: Jiangsu, China (Mainland)

Packaging & Delivery

  • Packaging Details: standrad packing for ceramic band heater
  • Delivery Detail: 7 working days for ceramic band heater

Specifications



Product Description

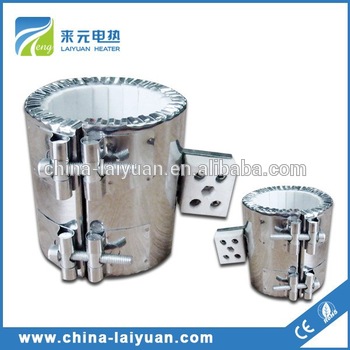

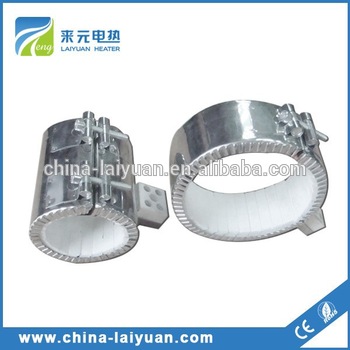

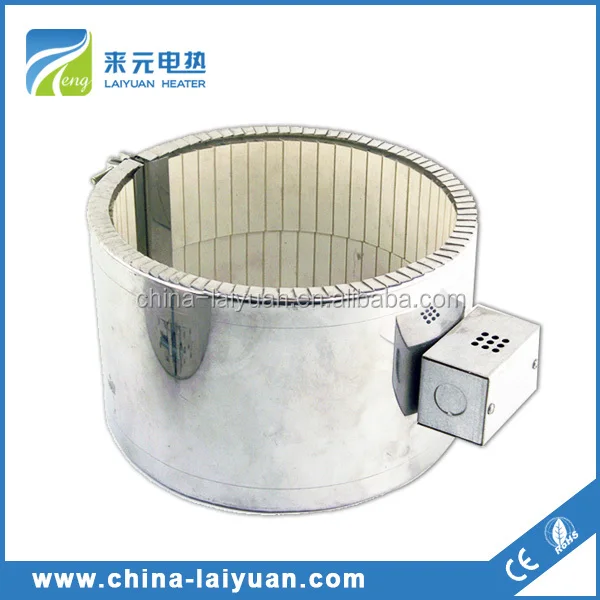

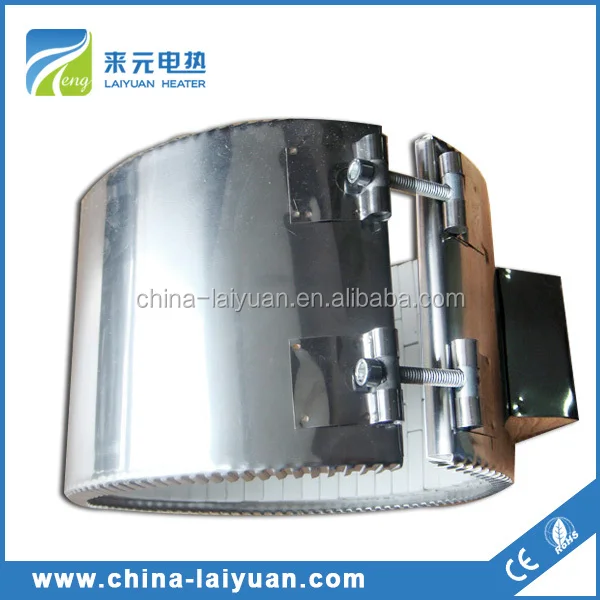

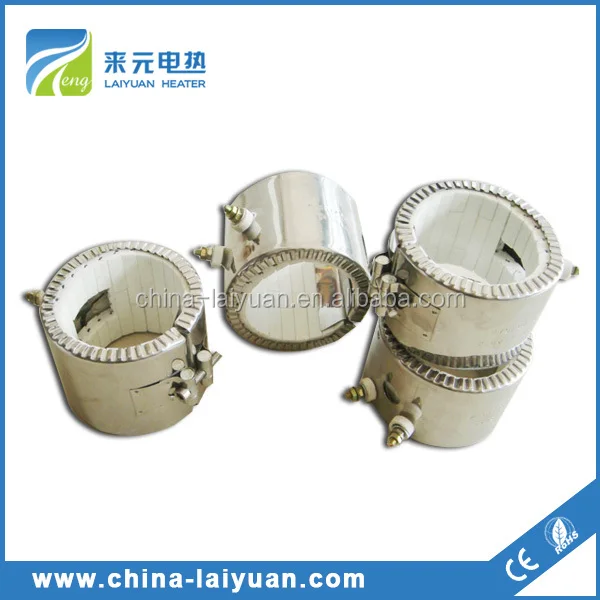

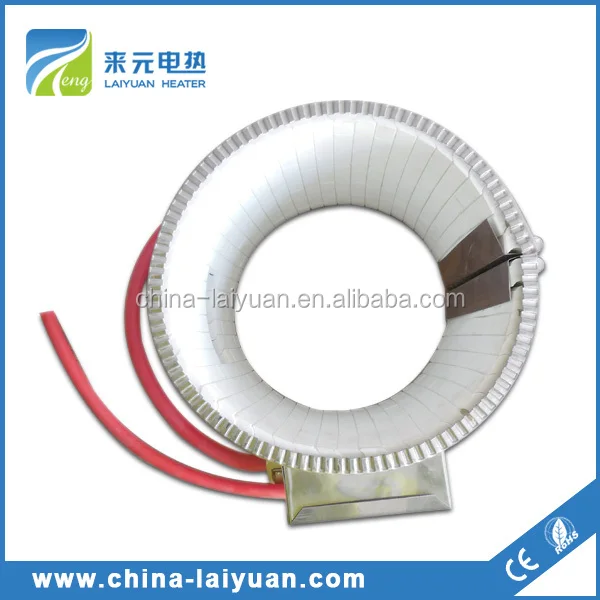

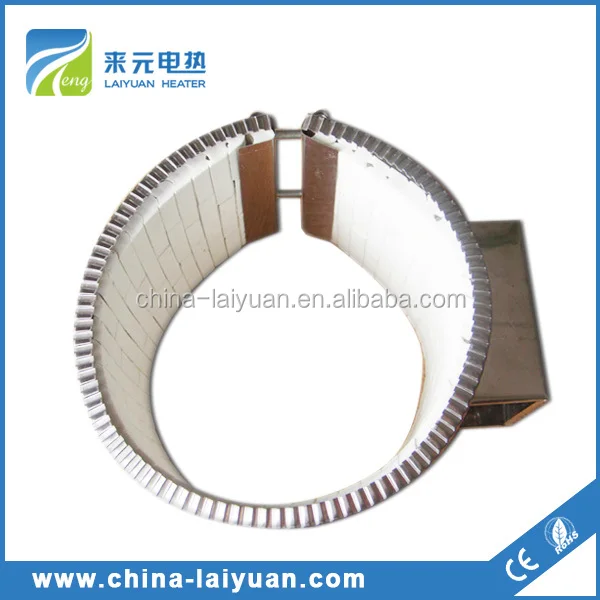

CN ceramic band heater with terminal connectors for plastic machine



Laiyuan ceramic band heater are designed and manufactured out of 8 years of experience, for superior performance and life expectancy. ceramic band heater primarily used for Plastic Processing machinery, depending upon applications, these heaters come with outer heat saving insulation covers, which provides the best combination of physical strength, high emissivity & good thermal conductivity to heat cylindrical parts, good for sheath temperature up to 5000C along with Energy Saving.




Features of Ceramic band heaters:



  Sheath Material

  Stainless Steel cover for  ceramic band heater

  Insulators

  High Grade Steatite Ceramic Insulators (High temperature)

  Heat Saving Thermal Insulation

  Ceramic Fibre (std.)

  Heating Elements (coil)

 NiCr 80:20

  Nominal Wall Thickness

  Premium Heat : ½"
  Power Saver : ½" + 5/8" (Outer Insulation)
  Power Saver PLUS :½" + 1.5" ( Outer Insulation)

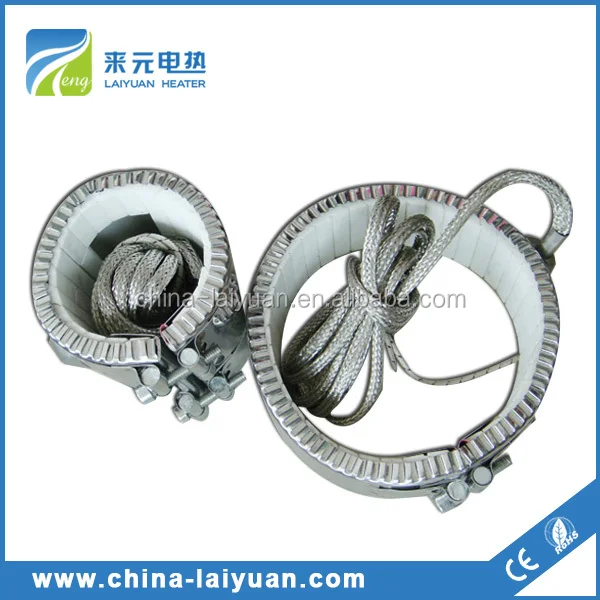

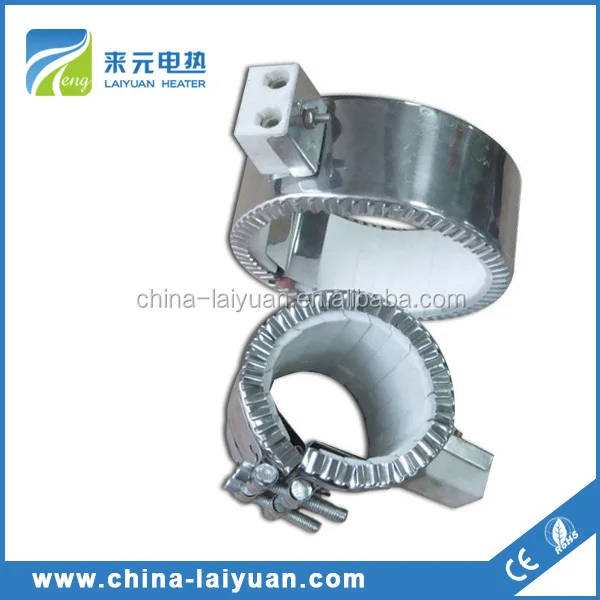

  Connection

  Fiber Glass Insulated- Metal Braided Flexible Cable (std. 12" long) mounted on rigid   screw post terminals

  Voltage Range

  110V - 440V, Single, Three Phase

  Surface Loading

  35-55W / inch2 (depending upon model & application)

  Power Rating

  Depending upon application

  Power Tolerance

  ± 10%

  HV Testing

  1.5 Kv between heating element and sheath

  Insulation Resistance (Cold)

  < 20 MΩ

  Sheath Temperature

  Up to 500°C maximum (Chrome Nickel Steel sheath)

  Gap Between the Clamping Edge

  5 - 10mm

  Resistance

  +/- 10%

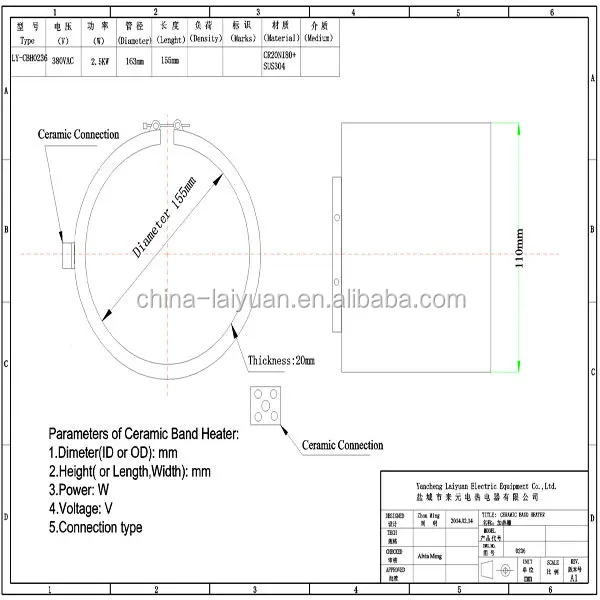

  Width :

  Minimum 50mm and there after multiples of 15mm.
  Minimum 100mm in case of Power saver & Power Saver PLUS

  Inner Diameter

  Minimum 50mm
  Minimum 75mm incase of Power saver & 100mm for Power Saver PLUS

















































































Applications of Ceramic band heaters:

1.Plastic Injection Molding Machines

2.Plastic Extruders

3. Oil Reclamation Equipment

4. Food and Candy Extruders

5. Drum Heating

6. Extrusion Dies

7. Holding Tanks

8. Blow Molding Machines

9. Food Service Warming

10. Hot Runner Molds



Packaging & Shipping







Our Services







Company Information

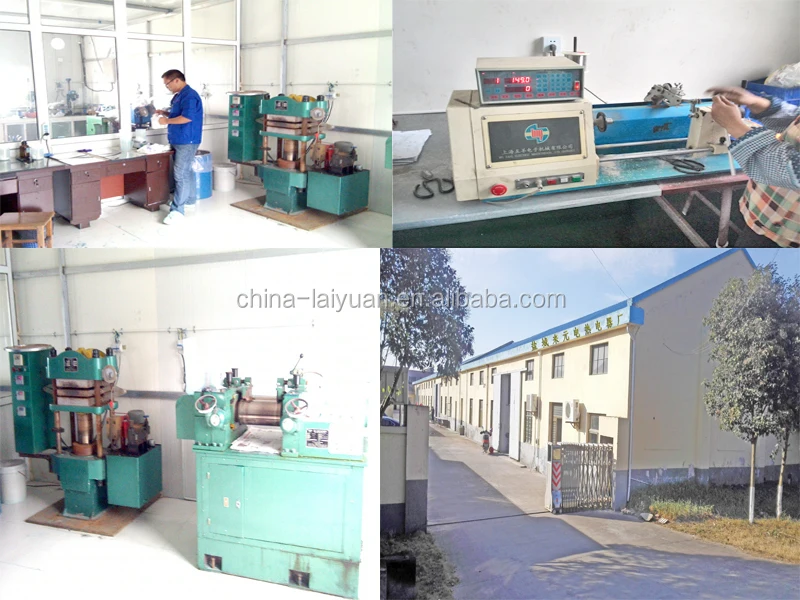

  Yancheng Laiyuan Electric Equipment Co.,Ltd. was established in 2005, lies in beautiful city of Yancheng, Jiangsu China. We specialize in electric heaters, including Heating Resistance Wires, Tubular heater, Thermocouple, Immersion Heater, Band Heater, Ceramic Infrared Heater ,High-temperature Cable and other heating elements.

  Yancheng Laiyuan is by virtue of electric technology has a wealth of production experience and professional technical force, to adapt to the market economy competition and technology requirements, we introduce the international advanced level of tubular electric heating elements for customers to create maximum value .



Yancheng Laiyuan has won praises for rapid development, scientific management method and perfect sales service. We possess a wonderful fame both at home and abroad. We are known for our innovative products and are continually introducing new and exciting products. Continual improvement is a by-word within our company and we are always looking for ways of improving our existing products in addition to developing new ranges.



  “QUALITY WITHOUT COMPROMISE”, Laiyuan has always been the product quality as enterprise life, therefore we always have effort, and ultimately create the perfect laiyuan brand .



Certifications





FAQ



1. Are you Manufacture or Trade Company?

 We are Manufacture for Industrial heating element several years .

2.Where is your factory located? How can I visit there?

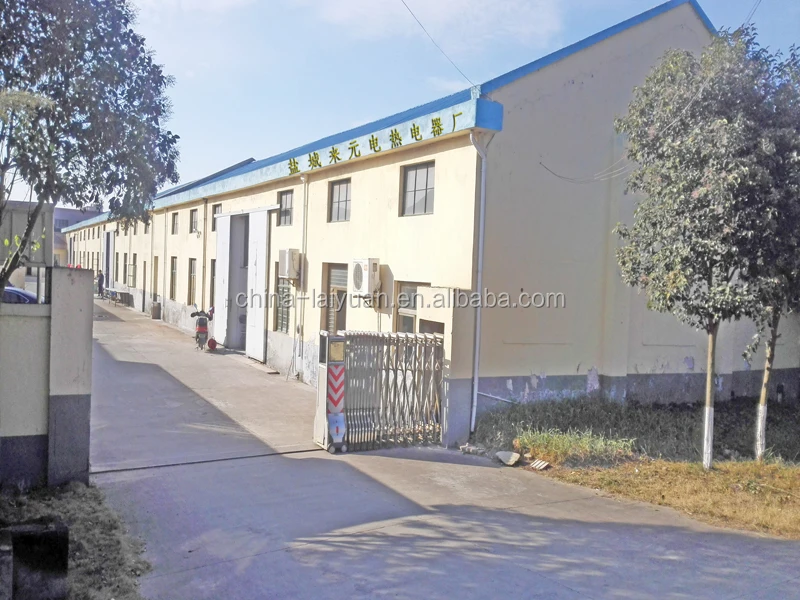

Our factory is located in Yancheng City, Jiangsu Province, China .

It takes 4.5 hours by bus ride from Shanghai .Warmly welcome to visit us freely .

3.What type of payment do you have available?

A: TT and L/C

B: West Union,Money gram and Aliexpress are available for sample order .

4.How can I get some samples?

We are honored to offer you samples .

5.How does your factory do regarding quality control?

 Quality without compromise, Laiyuan people always attach great importance to quality controlling from the very beginning to the very end.



Welcome to contact us for more details ,most competitive price for you !
