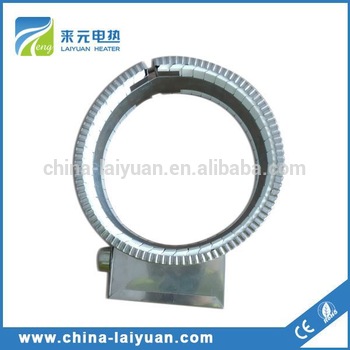

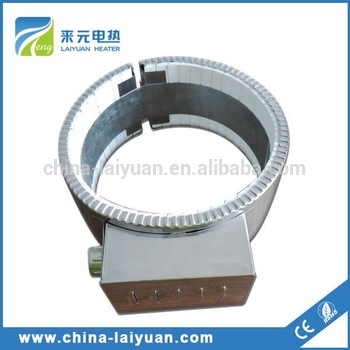

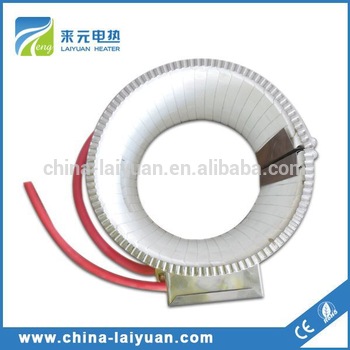

Bow molding machine band heater ceramic heating element

Bow molding machine band heater ceramic heating element

FOB Price:

US 5-100 / Piece

Min.Order Quantity:

1 Piece/Pieces

Supply Ability:

1000 Piece/Pieces per Week

Port:

Shanghai

Place of Origin:

Jiangsu, China (Mainland)

Payment Terms:

L/C,D/A,D/P,T/T,Western Union,MoneyGram,Escrow

Brand:

Laiyuan

Products Model:

LY-CBH-15222

Products Details
Company Profile

Quick Details

Brand Name: Laiyuan

Model Number: LY-CBH-15222

Place of Origin: Jiangsu, China (Mainland)

Packaging & Delivery

Packaging Details: Carton & wooden box for Bow molding machine band heater ceramic heating element
Delivery Detail: 7 days for Bow molding machine band heater ceramic heating eleme

Specifications

Bow molding machine band heater ceramic heating element

Product Description

Description of Bow molding machine band heater :

Laiyuan Bow molding machine band heater are designed and manufactured out of 8 years of experience, for superior performance and lifeexpectancy. Primarily used for Plastic Processing machinery, depending upon applications, Bow molding machine band heater come with outer heat saving insulation covers, which provides the best combination of physical strength, high emissivity & good thermal conductivity to heat cylindrical parts, good for sheath temperature up to 500⁰C along with Energy Saving.

Technical Data of Bow molding machine band heater :

Sheath Material	Chrome Nickel Steel
Insulators	High Grade Steatite Ceramic Insulators (High temperature)
Heat Saving Thermal Insulation	Ceramic Fibre (std.)
Heating Elements (coil)	NiCr 60:16, NiCr 80:20
Nominal Wall Thickness	Premium Heat : ½" Power Saver : ½" + 5/8" (Outer Insulation) Power Saver PLUS :½" + 1.5" ( Outer Insulation)
Connection	Fiber Glass Insulated- Metal Braided Flexible Cable (std. 12" long) mounted on rigid screw post terminals
Voltage Range	110V - 440V, Single
Surface Loading	35-55W / inch² (depending upon model & application)
Power Rating	Depending upon application
Power Tolerance	± 10%
HV Testing	1.5 Kv between heating element and sheath
Insulation Resistance (Cold)	< 20 MΩ
Sheath Temperature	Up to 500°C maximum (Chrome Nickel Steel sheath)
Gap Between the Clamping Edge	5 - 10mm
Resistance	+/- 10%
Width :	Minimum 30mm and there after multiples of 15mm. Minimum 100mm in case of Power saver & Power Saver PLUS
Inner Diameter	Minimum 50mm Minimum 75mm incase of Power saver & 100mm for Power Saver PLUS


Applications of Bow molding machine band heater :

1.Plastic Injection Molding Machines

2.Plastic Extruders

3. Oil Reclamation Equipment

4. Food and Candy Extruders

5. Drum Heating

6. Extrusion Dies

7. Holding Tanks

8. Blow Molding Machines

9. Food Service Warming

10. Hot Runner Molds

Workshop Of Factory

Packaging & Shipping

FAQ

1. Are you Manufacture or Trade Company ?
We are Manufacture for Industrial Heating Element several years.

2.Where is your factory located? How can I visit there?

Our factory is located in Yancheng City, Jiangsu Province, China .

It takes 4.5 hours by bus ride from Shanghai .Warmly welcome to visit us freely .

3.What type of payment do you have available?
A: TT and L/C

B: West Union,Money gram and Aliexpress are available for sample order .

4.How can I get some samples?

We are honored to offer you samples .

5.How does your factory do regarding quality control?

Quality without compromise, Laiyuan people always attach great importance to quality controlling from the very beginning to the very end.

Welcome to contact us for more details ,most competitive price for you !
