Home > Products > Heating > Electric Heating

furnaces for saunas Nozzle coil heater Ceramic band heater

furnaces for saunas Nozzle coil heater Ceramic band heater

FOB Price:

US 5-100 / Piece

Min.Order Quantity:

1 Piece/Pieces

Supply Ability:

1000 Piece/Pieces per Week

Port:

Shanghai

Place of Origin:

Jiangsu, China (Mainland)

Payment Terms:

L/C,T/T,Western Union,MoneyGram

Brand:

Laiyuan

Products Model:

LY-CBH-15010

Products Details
Company Profile

Quick Details

Brand Name: Laiyuan

Model Number: LY-CBH-15010

Place of Origin: Jiangsu, China (Mainland)

Packaging & Delivery

Packaging Details: Carton & wooden box for furnaces for saunas Nozzle coil heater Ceramic band heater
Delivery Detail: Shipped in 7 days after payment

Specifications

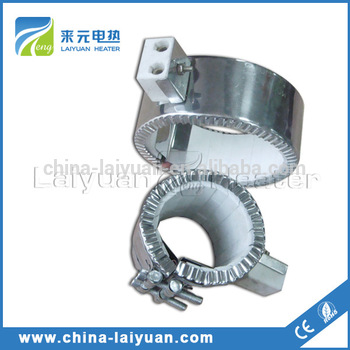

furnaces for saunas Nozzle coil heater Ceramic band heater

Product Description

Description of 12V band heater :

12V Band heater are designed and manufactured out of 8 years of experience, for superior performance and life expectancy. Primarily 12V band heater used for Plastic Processing machinery, depending upon applications, 12v band heater come with outer heat saving insulation covers, which provides the best combination of physical strength, high emissivity & good thermal conductivity to heat cylindrical parts, good for sheath temperature up to 500⁰C along with Energy Saving.

Technical Data Of 12v Band Heater :

Sheath Material	Chrome Nickel Steel
Insulators	High Grade Steatite Ceramic Insulators (High temperature)
Heat Saving Thermal Insulation	Ceramic Fibre (std.)
Heating Elements (coil)	NiCr 60:16, NiCr 80:20
Nominal Wall Thickness	Premium Heat : ½" Power Saver : ½" + 5/8" (Outer Insulation) Power Saver PLUS :½" + 1.5" ( Outer Insulation)
Connection	Fiber Glass Insulated- Metal Braided Flexible Cable (std. 12" long) mounted on rigid screw post terminals
Voltage Range	110V - 440V, Single
Surface Loading	35-55W / inch² (depending upon model & application)
Power Rating	Depending upon application
Power Tolerance	± 10%
HV Testing	1.5 Kv between heating element and sheath
Insulation Resistance (Cold)	< 20 MΩ
Sheath Temperature	Up to 500°C maximum (Chrome Nickel Steel sheath)
Gap Between the Clamping Edge	5 - 10mm
Resistance	+/- 10%
Width :	Minimum 30mm and there after multiples of 15mm. Minimum 100mm in case of Power saver & Power Saver PLUS
Inner Diameter	Minimum 50mm Minimum 75mm incase of Power saver & 100mm for Power Saver PLUS


12v band heater barrel ceramic band heater

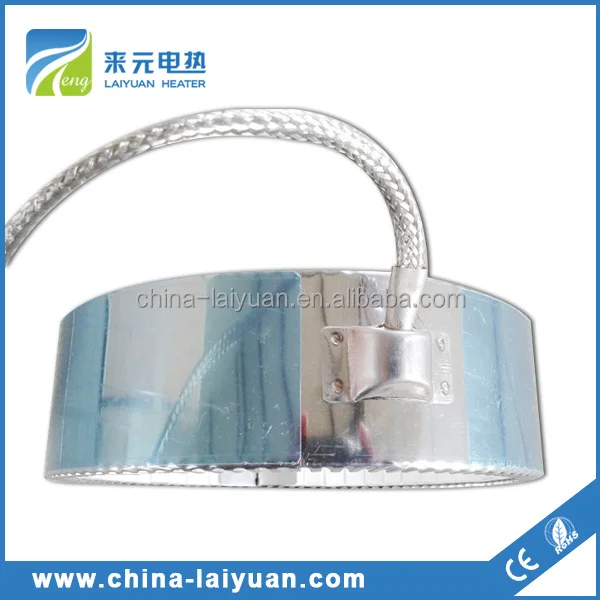

Mica Band Heater

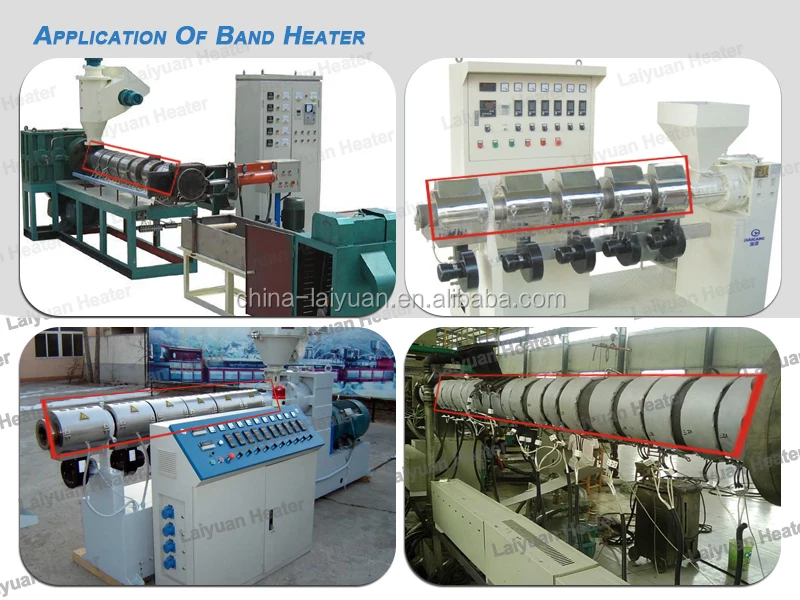

Application

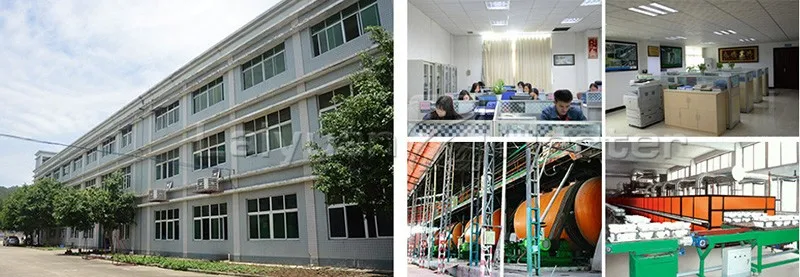

Workshop Of Factory

Packaging & Shipping

FAQ

1.Laiyuan is Factory or Trade enterprise?

Laiyuan is an enterprise incorporating Factory and Trade .

2.Where is your factory located? How can I visit there?

Our factory is located in Yancheng City, Jiangsu Province, China .

It is closed to Shanghai ,only 4hours if by bus.

3.Which Certificate of your product does your company have?

ISO9001,CE,ROHS.CCIC

4.Before order, we need sample for test ,is it ok?

Yes, of course. We provide sample for test before bulk order.

5.How does your company to control your product quality?

Quality is the cornerstone of the survival and development of Laiyuan .

We control quality from the beginning to the end all the time.

6.How to contact me ?

Whatsapp: 86-15295314234 Phone:86-15295314234

Skype:alway.zhang1 E-Mail.:sales003ATchina-laiyuan.com

YOUR VISIT WILL LEAD LAIYUAN PEOPLE TO DO BETTER!

Our Services

Yancheng Laiyuan Electric Equipment Co.,Ltd. lies in beautiful city of Yancheng, Jiangsu China. We specialize in electric heaters, including Heating Resistance Wires, Band heater, Bobbin Heater, Heating Part for Hot Air gun and other heating elements.

Laiyuan is by virtue of Electric Technology has a wealth of production experience , Professional Technical Force, a strong R&D department and a dedicated team , to adapt to the market economy competition and technology requirements more than 10 years.

Yancheng Laiyuan has won praises for rapid development, scientific management method and perfect sales service. We possess a wonderful fame both at home and abroad. We are known for our innovative products and are continually introducing new and exciting products. Continual improvement is a by-word within our company and we are always looking for ways of improving our existing products in addition to developing new ranges.

'QUALITY WITHOUT COMPROMISE', Laiyuan has always been the product quality as enterprise life, therefore we always have effort, and ultimately create the perfect Laiyuan brand .
