Heaters for extruder 100 mm Ceramic coil heater Ceramic band heater

Heaters for extruder 100 mm Ceramic coil heater Ceramic band heater

FOB Price:

US 5-100 / Piece

Min.Order Quantity:

1 Piece/Pieces

Supply Ability:

1000 Piece/Pieces per Week

Port:

Shanghai

Place of Origin:

Jiangsu, China (Mainland)

Payment Terms:

L/C,T/T,Western Union,MoneyGram

Brand:

Laiyuan

Products Model:

LY-CBH-15010

Products Details
Company Profile

Quick Details

Brand Name: Laiyuan

Model Number: LY-CBH-15010

Place of Origin: Jiangsu, China (Mainland)

Packaging & Delivery

Packaging Details: Carton & wooden box for Heaters for extruder 100 mm Ceramic coil heater Ceramic band heater
Delivery Detail: Ceramic stick for Ceramic coil heater Ceramic band heater

Specifications

Heaters for extruder 100 mm Ceramic coil heater Ceramic band heater

Product Description

Description of 12V band heater :

12V Band heater are designed and manufactured out of 8 years of experience, for superior performance and life expectancy. Primarily 12V band heater used for Plastic Processing machinery, depending upon applications, 12v band heater come with outer heat saving insulation covers, which provides the best combination of physical strength, high emissivity & good thermal conductivity to heat cylindrical parts, good for sheath temperature up to 500⁰C along with Energy Saving.

Technical Data Of 12v Band Heater :

Sheath Material	Chrome Nickel Steel
Insulators	High Grade Steatite Ceramic Insulators (High temperature)
Heat Saving Thermal Insulation	Ceramic Fibre (std.)
Heating Elements (coil)	NiCr 60:16, NiCr 80:20
Nominal Wall Thickness	Premium Heat : ½" Power Saver : ½" + 5/8" (Outer Insulation) Power Saver PLUS :½" + 1.5" ( Outer Insulation)
Connection	Fiber Glass Insulated- Metal Braided Flexible Cable (std. 12" long) mounted on rigid screw post terminals
Voltage Range	110V - 440V, Single
Surface Loading	35-55W / inch² (depending upon model & application)
Power Rating	Depending upon application
Power Tolerance	± 10%
HV Testing	1.5 Kv between heating element and sheath
Insulation Resistance (Cold)	< 20 MΩ
Sheath Temperature	Up to 500°C maximum (Chrome Nickel Steel sheath)
Gap Between the Clamping Edge	5 - 10mm
Resistance	+/- 10%
Width :	Minimum 30mm and there after multiples of 15mm. Minimum 100mm in case of Power saver & Power Saver PLUS
Inner Diameter	Minimum 50mm Minimum 75mm incase of Power saver & 100mm for Power Saver PLUS

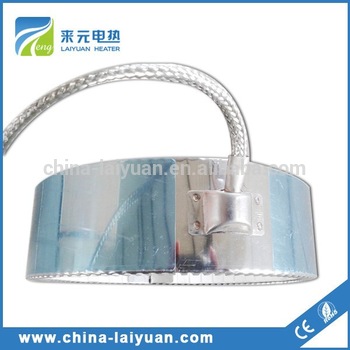

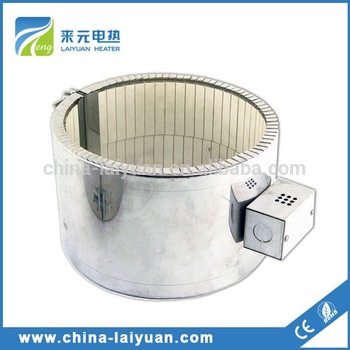

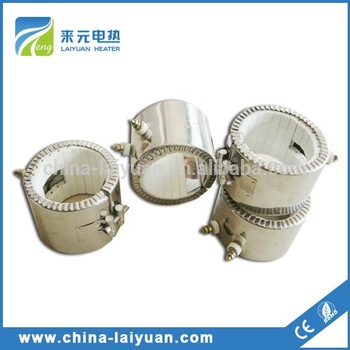

12v band heater barrel ceramic band heater

Mica Band Heater

Application

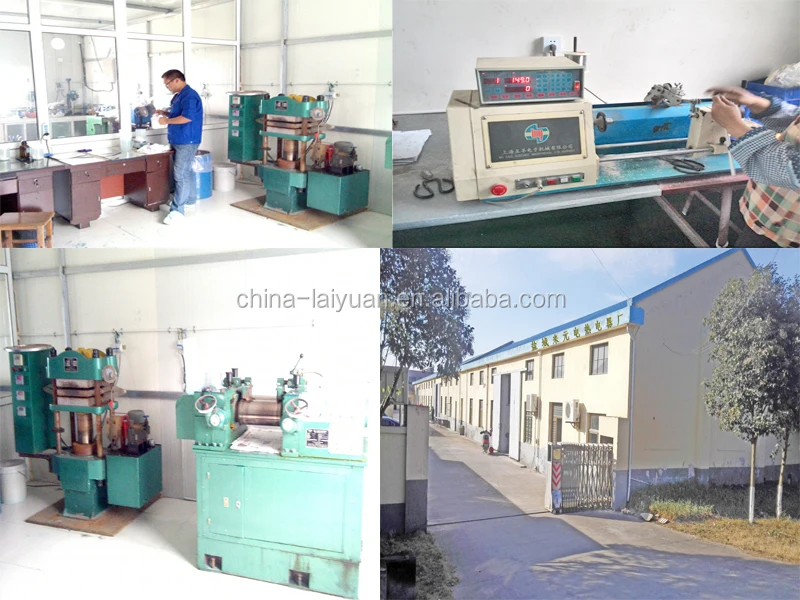

Workshop Of Factory

Packaging & Shipping

FAQ

1. Are you Manufacture or Trade Company?

We are Manufacture for Industrial heating element several years .

2.Where is your factory located? How can I visit there?

Our factory is located in Yancheng City, Jiangsu Province, China .

It takes 4.5 hours by bus ride from Shanghai .Warmly welcome to visit us freely .

3.What type of payment do you have available?

A: TT and L/C

B: West Union,Money gram and Aliexpress are available for sample order .

4.How can I get some samples?

We are honored to offer you samples .

5.How does your factory do regarding quality control?

Quality without compromise, Laiyuan people always attach great importance to quality controlling from the very beginning to the very end.

Welcome to contact us for more details ,most competitive price and reliable service for you !

Our Services

Yancheng Laiyuan Electric Equipment Co.,Ltd. lies in beautiful city of Yancheng, Jiangsu China. We specialize in electric heaters, including Heating Resistance Wires, Band heater, Bobbin Heater, Heating Part for Hot Air gun and other heating elements.

Laiyuan is by virtue of Electric Technology has a wealth of production experience , Professional Technical Force, a strong R&D department and a dedicated team , to adapt to the market economy competition and technology requirements more than 10 years.

Yancheng Laiyuan has won praises for rapid development, scientific management method and perfect sales service. We possess a wonderful fame both at home and abroad. We are known for our innovative products and are continually introducing new and exciting products. Continual improvement is a by-word within our company and we are always looking for ways of improving our existing products in addition to developing new ranges.

'QUALITY WITHOUT COMPROMISE', Laiyuan has always been the product quality as enterprise life, therefore we always have effort, and ultimately create the perfect Laiyuan brand .
